Hardware Installations and Upgrades

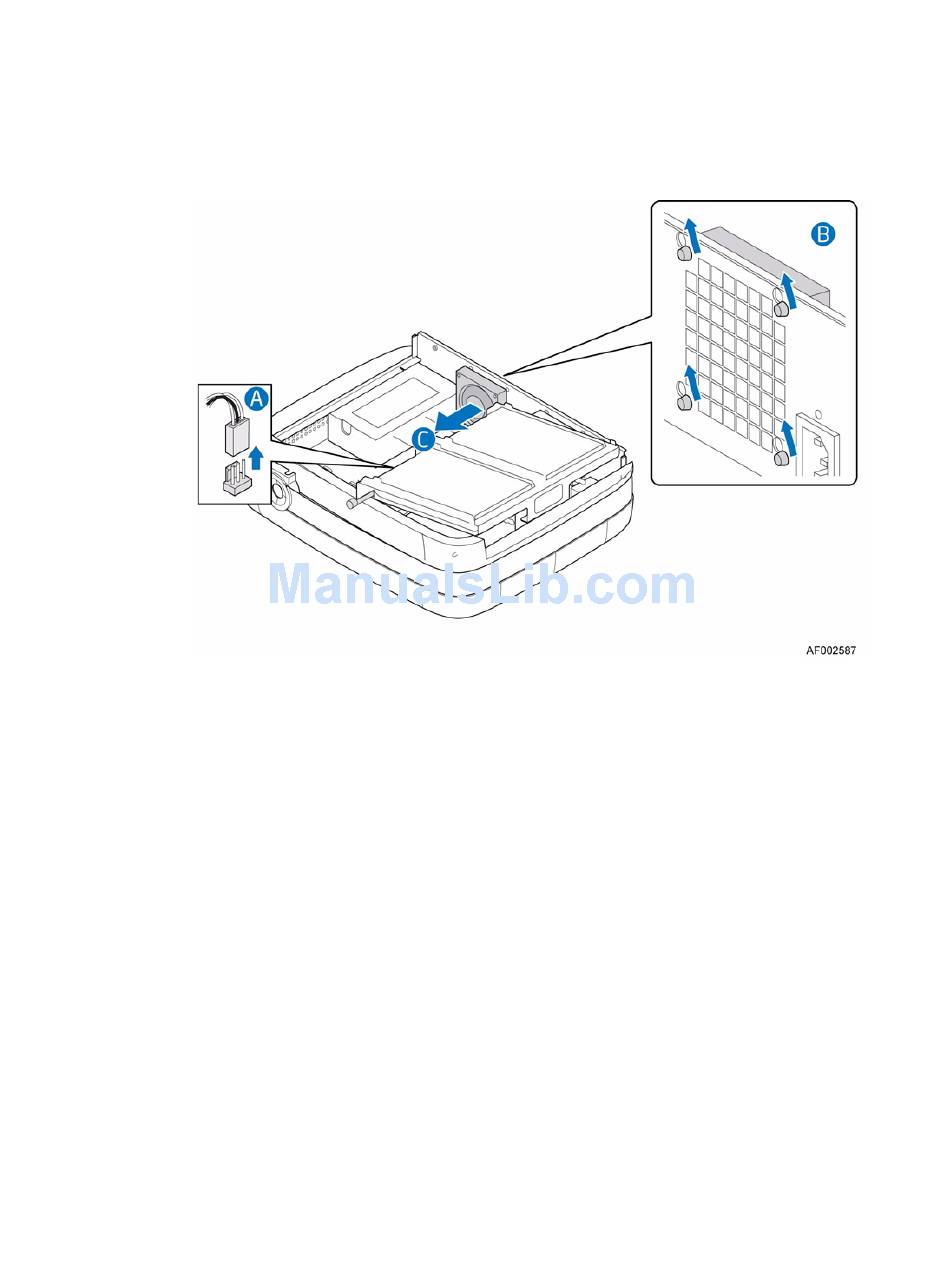

16. Disconnect the power cable from the system board (see letter "A" in the following
figure). Disengage the cooling fan from rear of chassis by sliding the cooling fan
upward and out of keyhole slots in chassis (see letter "B"). Remove the cooling fan
from the system (see letter "C").
38
Figure 40. Removing Left Cooling Fan
Intel® Entry Storage System SS4200-E User Guide
