Figure 42. Re-Installing Left Fan Guard; Figure 43. Lowering Left Side Of Drive Tray Assembly - Intel SS4200-E - Entry Storage System NAS Server User Manual

Hardware Installations and Upgrades
18. Re-install the fan guard (see letter "A" in the following figure). Secure the fan guard
to the rear of the chassis with the two screws previously removed (see letter "B").
19. Return the left side of the drive tray assembly to its operational position (see letter
"A" in the following figure).
20. Re-install the enclosure cover. For instructions, see
on page
21. Reconnect all peripheral devices and the AC power cord. Power up the storage
system.
40

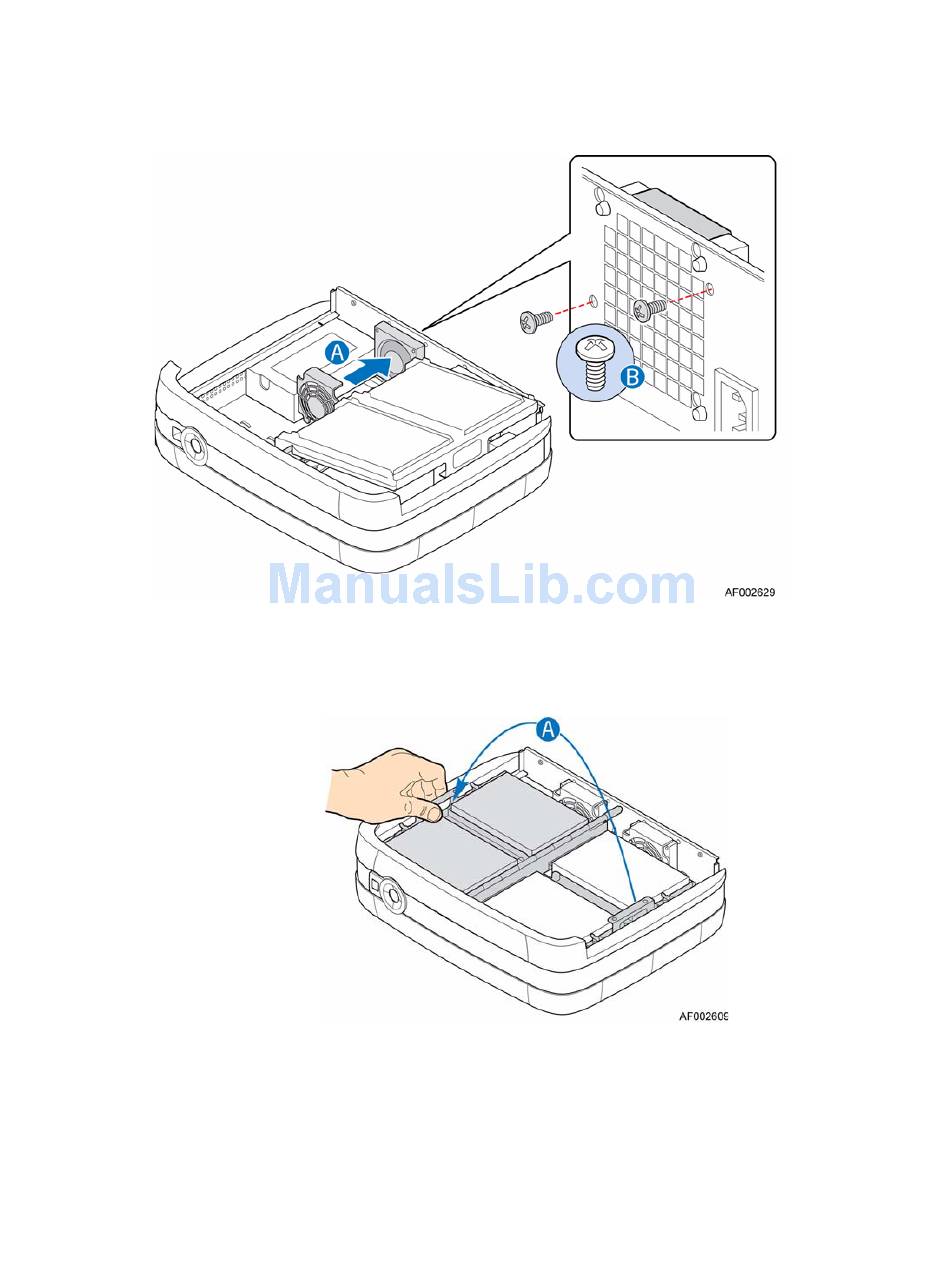

Figure 42. Re-installing Left Fan Guard

Figure 43. Lowering Left Side of Drive Tray Assembly

21.
"Installing the Enclosure Cover"
Intel® Entry Storage System SS4200-E User Guide
