Hardware Installations and Upgrades

Replacing the CMOS Battery

The lithium CMOS battery on the system board powers the RTC in the absence of power.
When the battery starts to weaken, it loses voltage, and the system settings stored in
CMOS RAM (for example, the date and time) may be wrong. Contact your customer
service representative or dealer for a list of approved replacement batteries.
Warning: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the equipment manufacturer. Discard used batteries
according to manufacturer's instructions.
Advarsel: Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
Varning: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ
som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens
instruktion.
Varoitus: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.
1. Observe all safety and ESD precautions listed in
2. Turn off all peripheral devices connected to the storage system. Power down the
storage system.
3. Disconnect the AC power cord.
4. Remove the enclosure cover. For instructions, see
on page
5. Lift the right side of the drive tray assembly (see letter "A" in the following figure).
44
20.

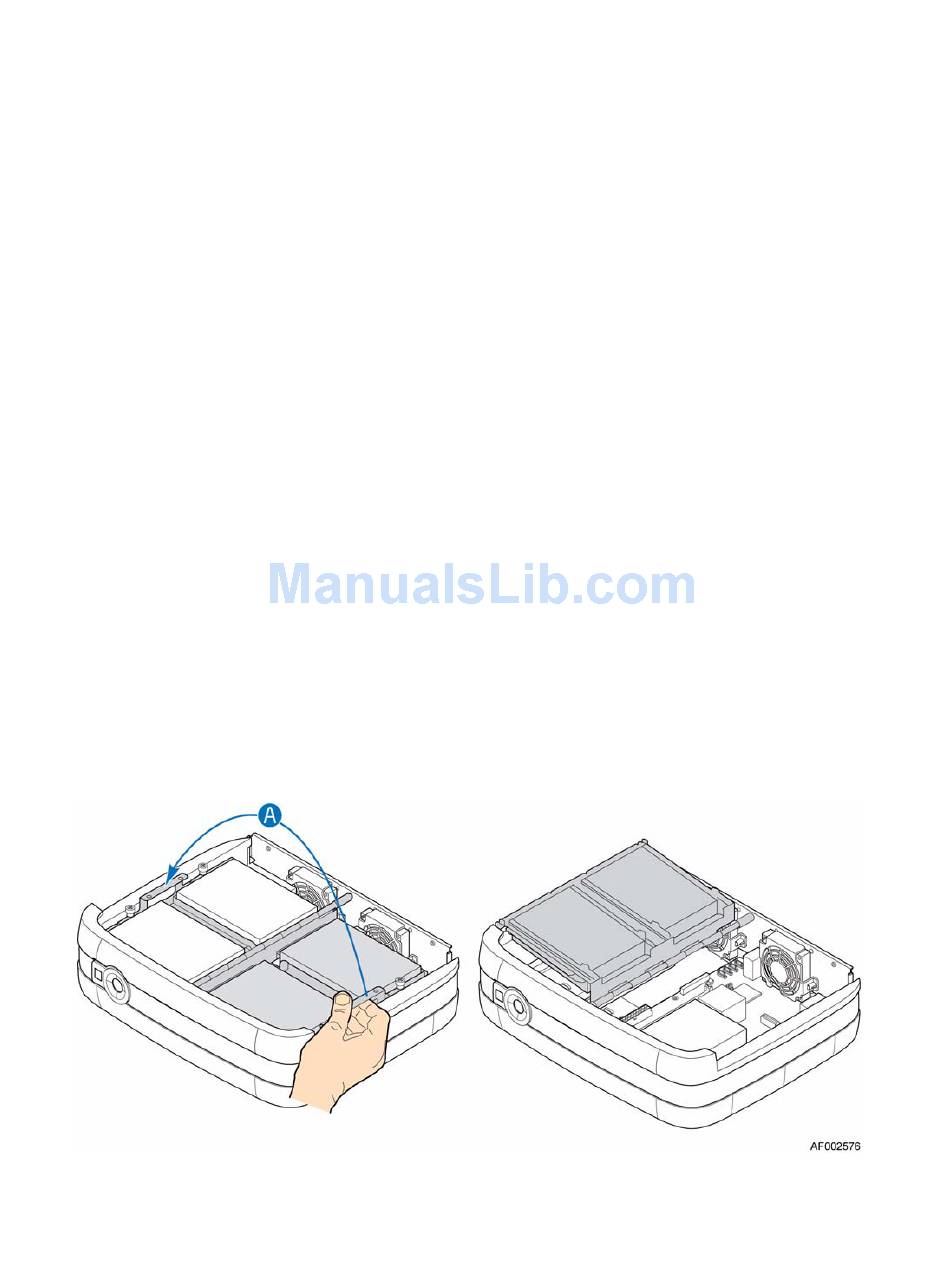

Figure 48. Lifting Right Side of Drive Tray Assembly

"Safety Information" on page
"Removing the Enclosure Cover"
Intel® Entry Storage System SS4200-E User Guide
85.
