System Board Layout
Intel® Entry Storage System SS4200-E User Guide
A. Reset / Recovery Button
B. LAN Port / USB Port
C. Right Cooling Fan Connector
D. e-SATA Connectors
E. RS-232 Debug Port
F. PCI-e Debug Port
G. Front Panel Header
H. CPU Power Connector
I. CPU Processor
J. Main Power Connector

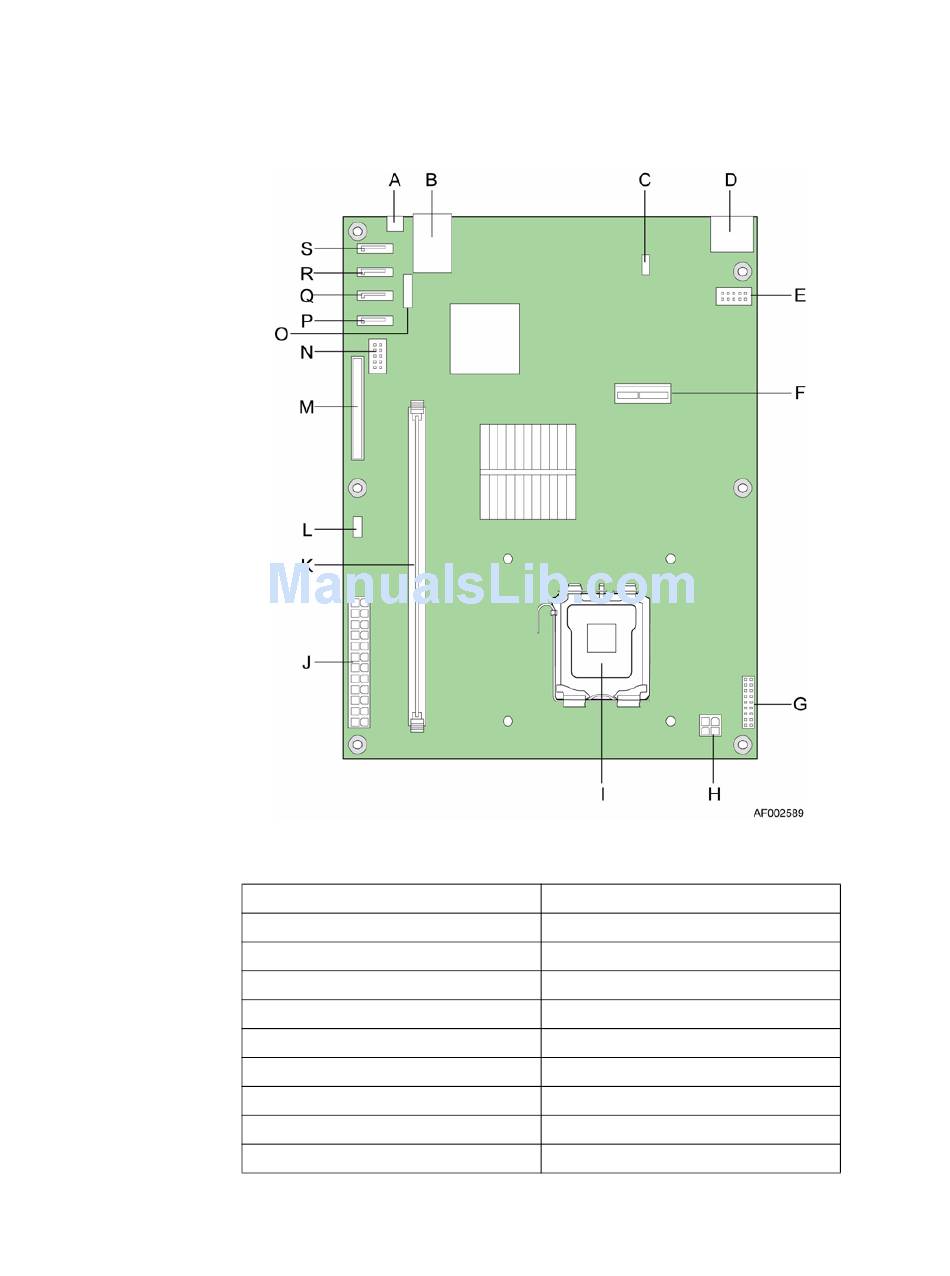

Figure 6. System Board Layout
Storage System Features
K. DIMM Slot
L. Left Cooling Fan Connector
M. IDE DOM Connector
N. USB Header
O. CMOS Battery
P. SATA 4 Connector
Q. SATA 3 Connector
R. SATA 2 Connector
S. SATA 1 Connector
5
