Hardware Installations and Upgrades
11. Return the right side of the drive tray assembly to its operational position (see letter
"A" in the following figure).
12. Re-install the enclosure cover. For instructions, see
on page
13. Reconnect all peripheral devices and the AC power cord. Power up the storage
system.
36

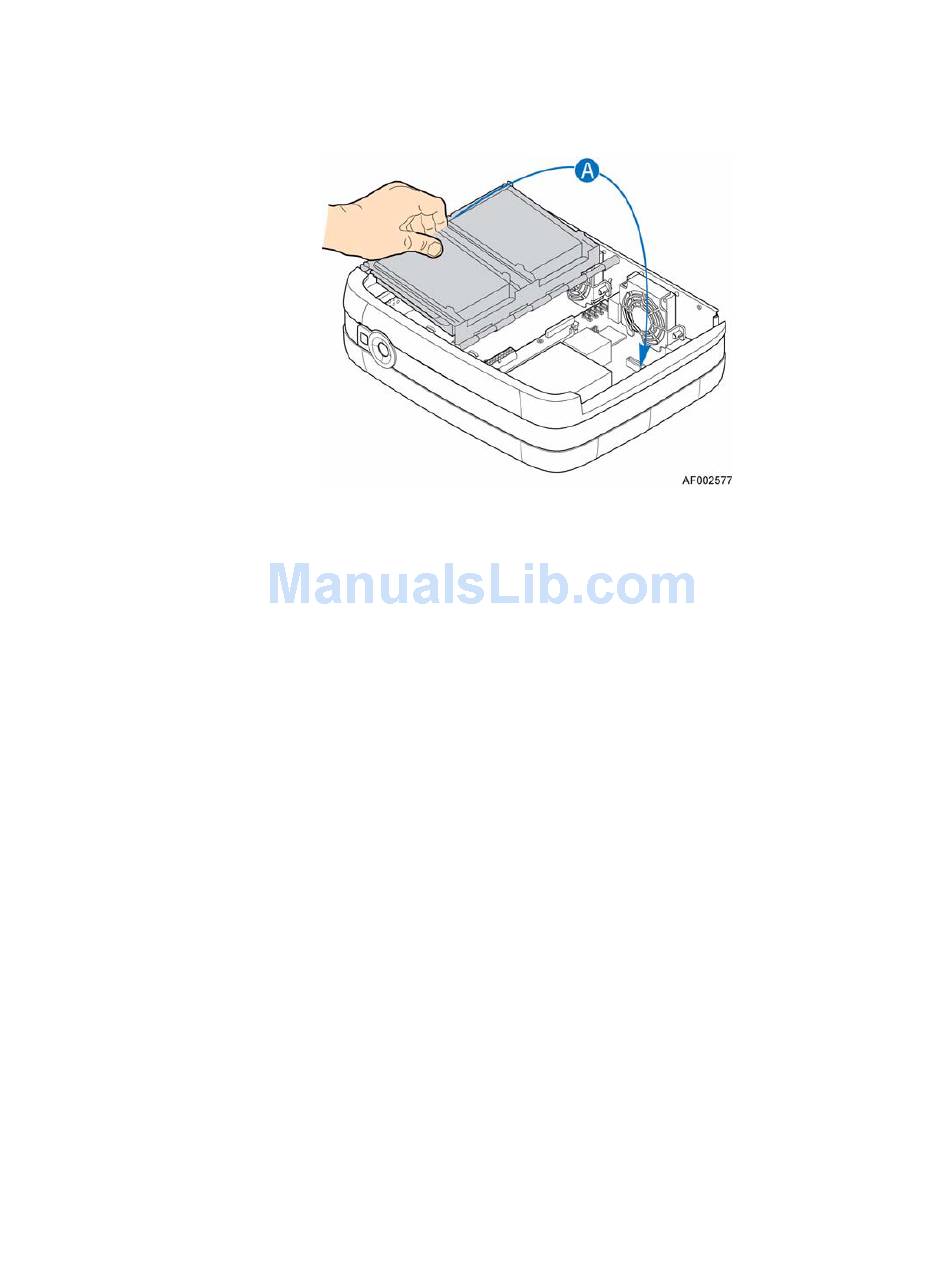

Figure 37. Lowering Right Side of Drive Tray Assembly
21.
"Installing the Enclosure Cover"
Intel® Entry Storage System SS4200-E User Guide
