Hardware Installations and Upgrades

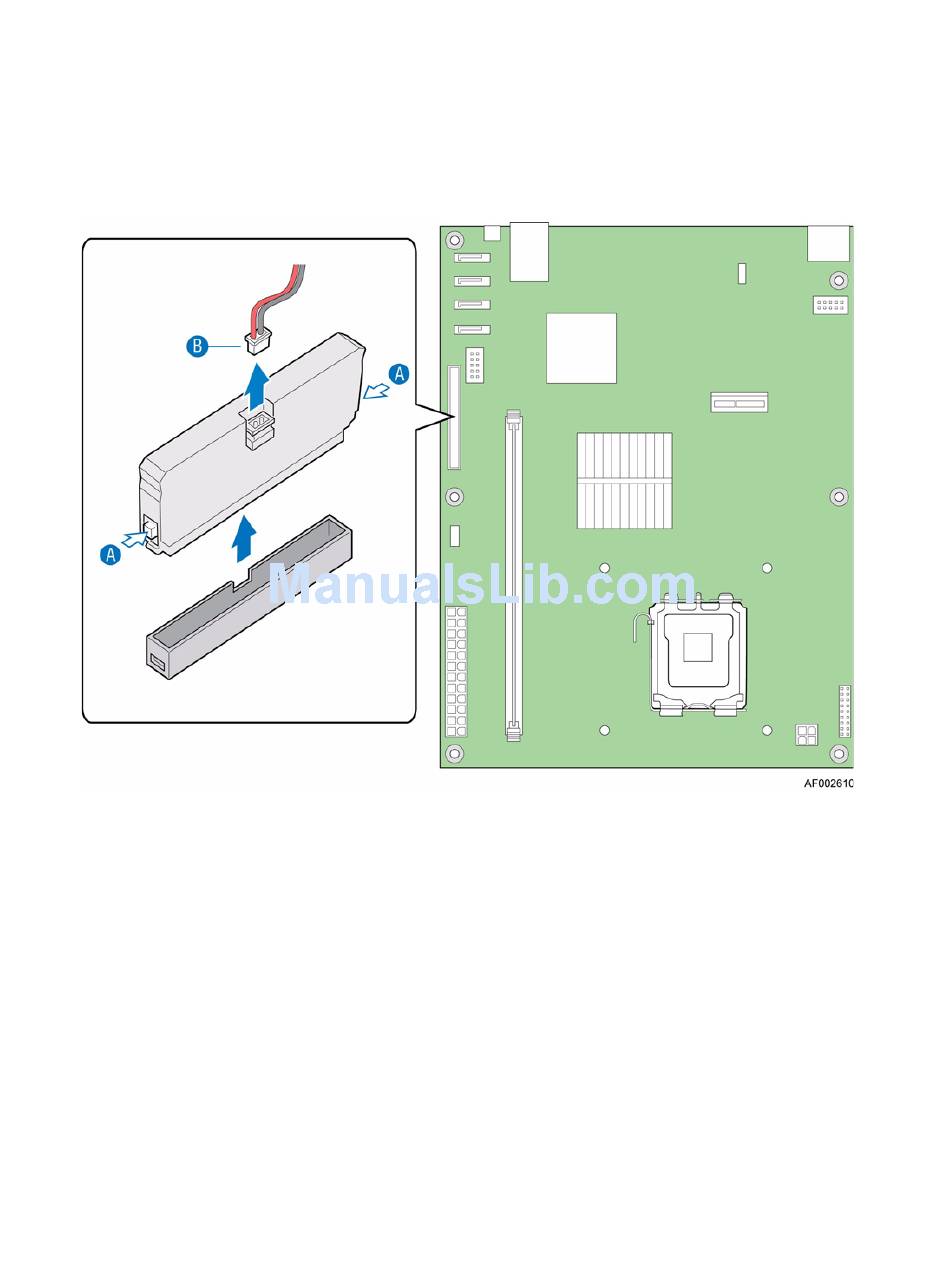

6. Locate the IDE connector on the server board (see the following figure). Press on both
sides and pull up to remove the failed IDE DOM (see letter "A" in the following
figure). Ensure the latches are closed enough for easy removal of the IDE DOM
otherwise the housing on the IDE connector may be damaged. Disconnect the power
cable from the IDE DOM (see letter "B").
48
Figure 52. Locating IDE Connector and Removing DOM
Intel® Entry Storage System SS4200-E User Guide
