Hardware Installations and Upgrades
Removing the Enclosure Cover
1. Observe all safety and ESD precautions listed in
2. Loosen the two captive screws at the rear of the system (see letter "A" in the
following figure). Slide the enclosure cover to the rear (see letter "B") and then lift
upward to remove from the system.
20

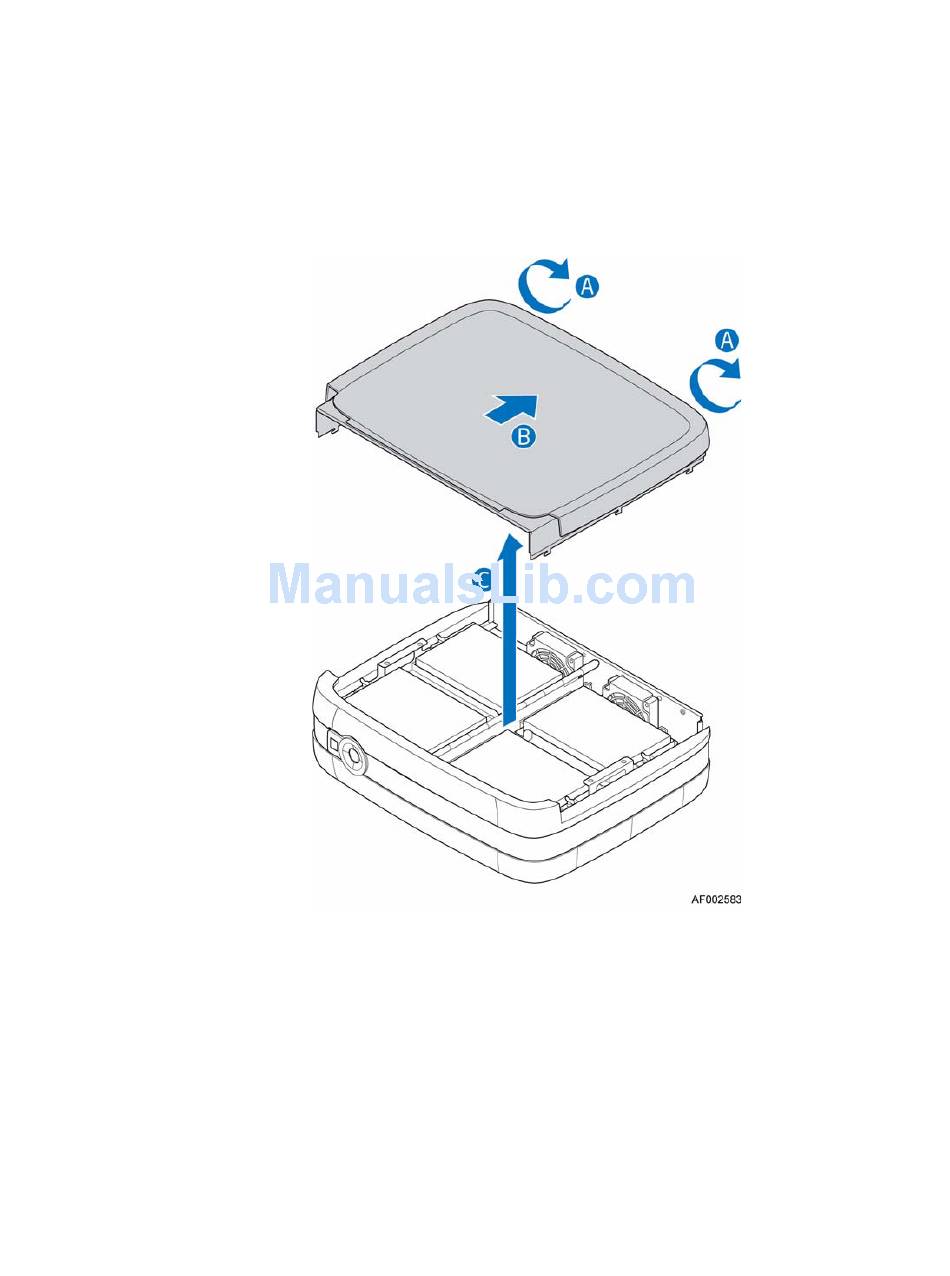

Figure 16. Removing Enclosure Cover
Intel® Entry Storage System SS4200-E User Guide
"Safety Information" on page
85.
