6. Locate the CMOS battery. Use a finger to pull the lever away from the top of the
battery until it clears the battery. Use caution so you do not bend the lever. Lift the
battery from the socket.
7. Dispose of the battery according to local ordinance.
8. Remove the new battery from its package.
9. Being careful to observe the correct polarity, insert the replacement battery into the
battery socket. The "+" side of the battery must face the lever side of the battery
socket, toward the add-in card slots.
Intel® Entry Storage System SS4200-E User Guide

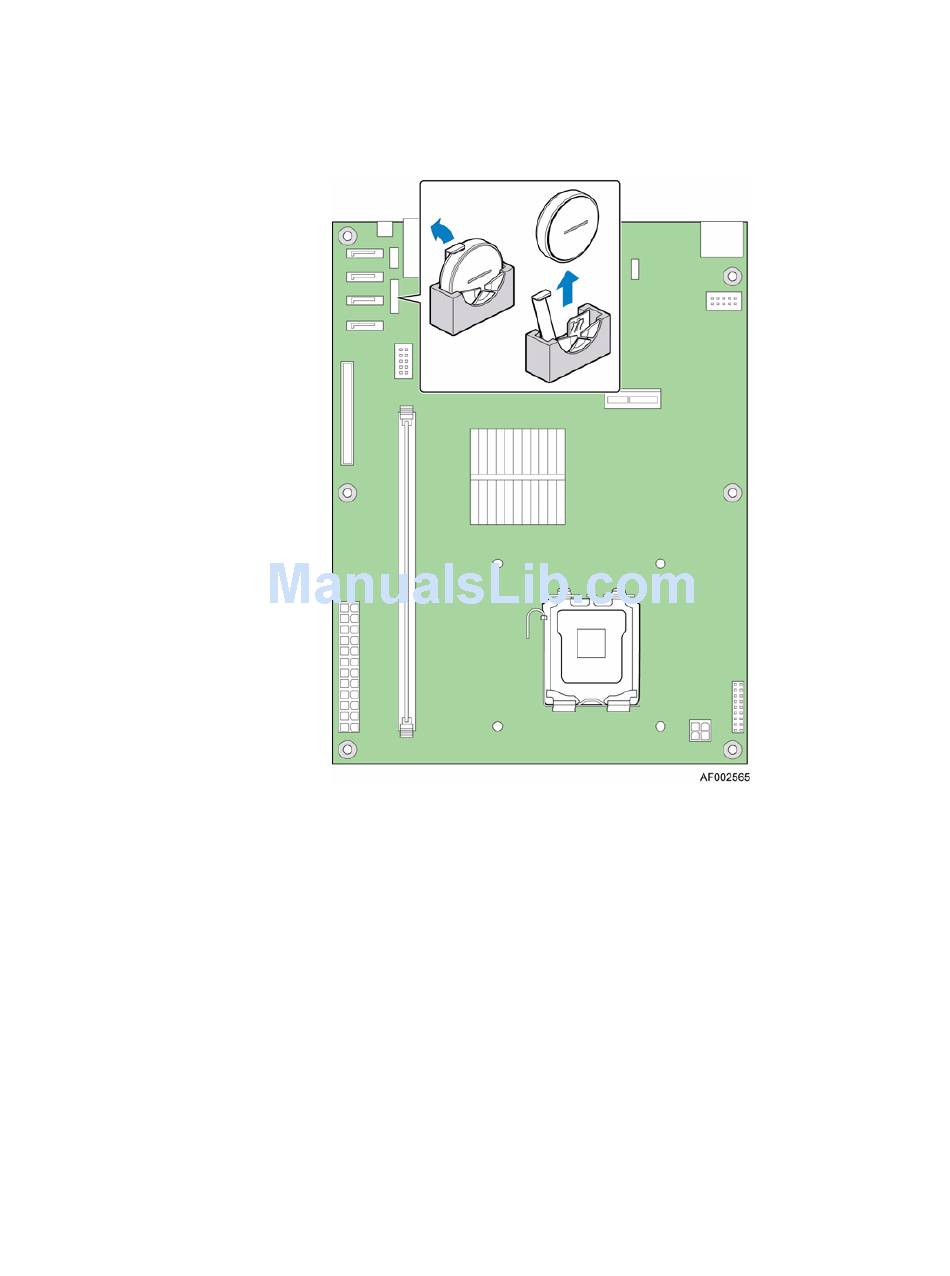

Figure 49. Locating and Removing the CMOS Battery
Hardware Installations and Upgrades
45
