7. Install the new DIMM. Ensure the clips at each end of the DIMM socket are pushed
outward to the open position (see letter "A" in the following figure). Holding the
DIMM by its edges, remove it from its anti-static package. Position the DIMM above
the socket. Align the notch on the bottom edge of the DIMM with the key in the
DIMM socket. The arrow for letter "B" is pointing to the key in the socket. Insert the
bottom edge of the DIMM into the socket. When the DIMM is inserted, push down on
the top edge of the DIMM until the retaining clips snap into place (see letter "C").
Make sure the clips latch firmly in place (see letter "D").
8. Return the right side of the drive tray assembly to its operational position (see letter
"A" in the following figure).
9. Re-install the enclosure cover. For instructions, see
on page
10. Reconnect all peripheral devices and the AC power cord. Power up the storage
system.
Intel® Entry Storage System SS4200-E User Guide

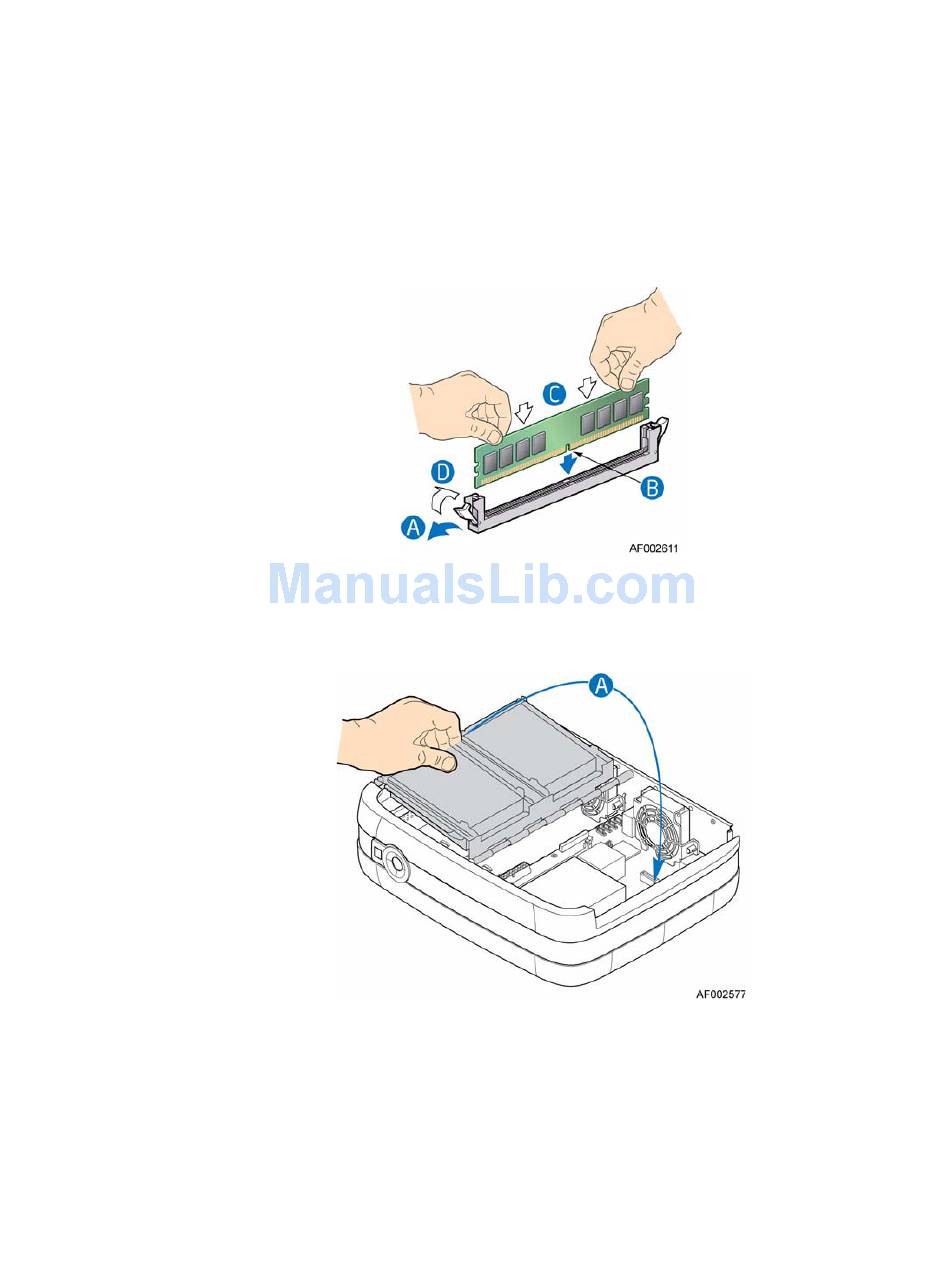

Figure 46. Installing New DIMM

Figure 47. Lowering Right Side of Drive Tray Assembly

21.
Hardware Installations and Upgrades
"Installing the Enclosure Cover"
43
