Replacing Memory
1. Observe all safety and ESD precautions listed in
2. Turn off all peripheral devices connected to the storage system. Power down the
storage system.
3. Disconnect the AC power cord.
4. Remove the enclosure cover. For instructions, see
on page
5. Lift the right side of the drive tray assembly (see letter "A" in the following figure).
Intel® Entry Storage System SS4200-E User Guide
20.

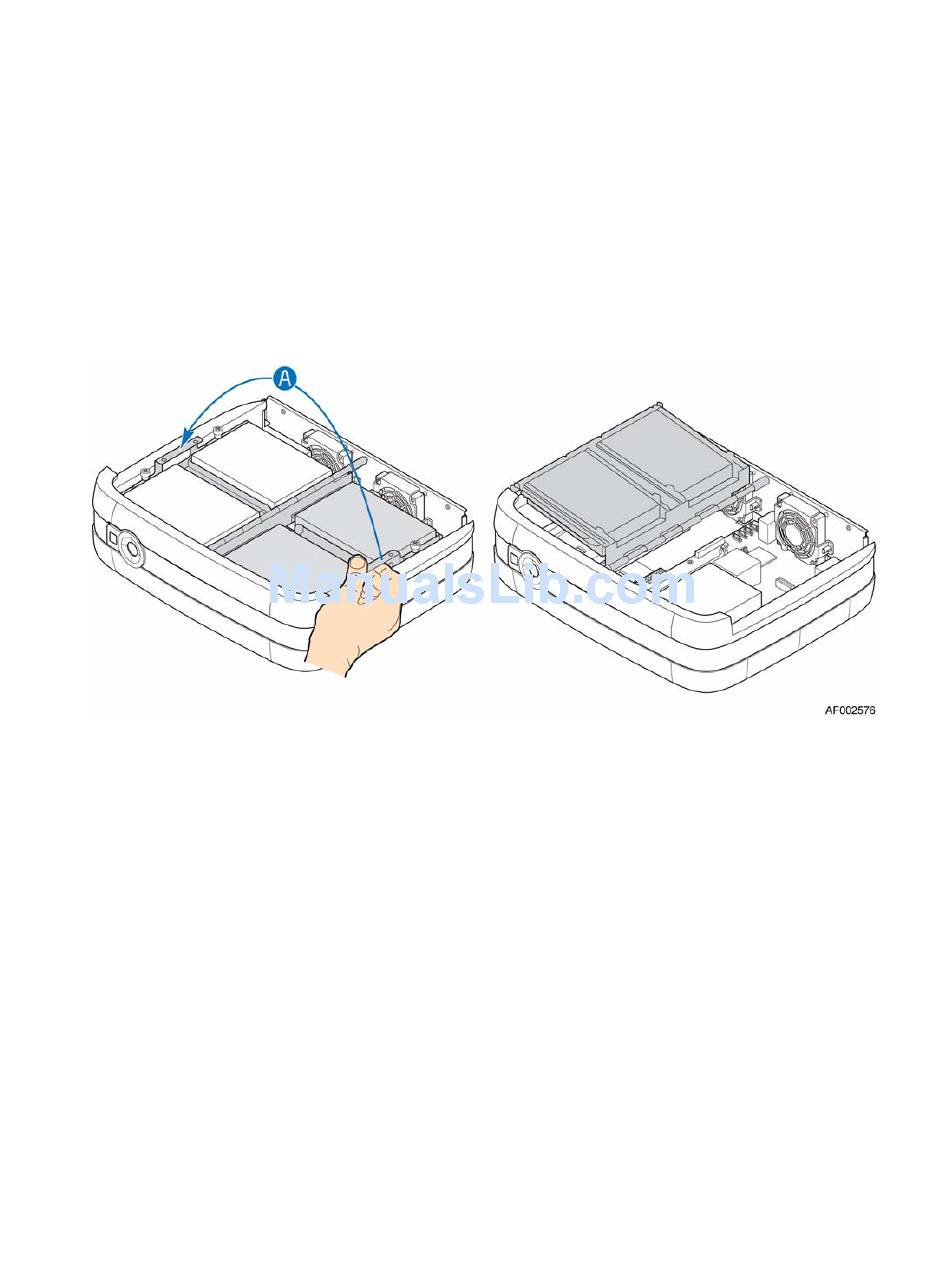

Figure 44. Lifting Right Side of Drive Tray Assembly
Hardware Installations and Upgrades
"Safety Information" on page
"Removing the Enclosure Cover"
85.
41
