6. Loosen the captive screw at the front of the drive retention bracket (see letter "A" in
the following figure) and lift up the bracket (see letter "B").
7. Remove new hard drive from packaging. Attach four RVR screws to the hard drive
(see letter "A" in the following figure).
Intel® Entry Storage System SS4200-E User Guide

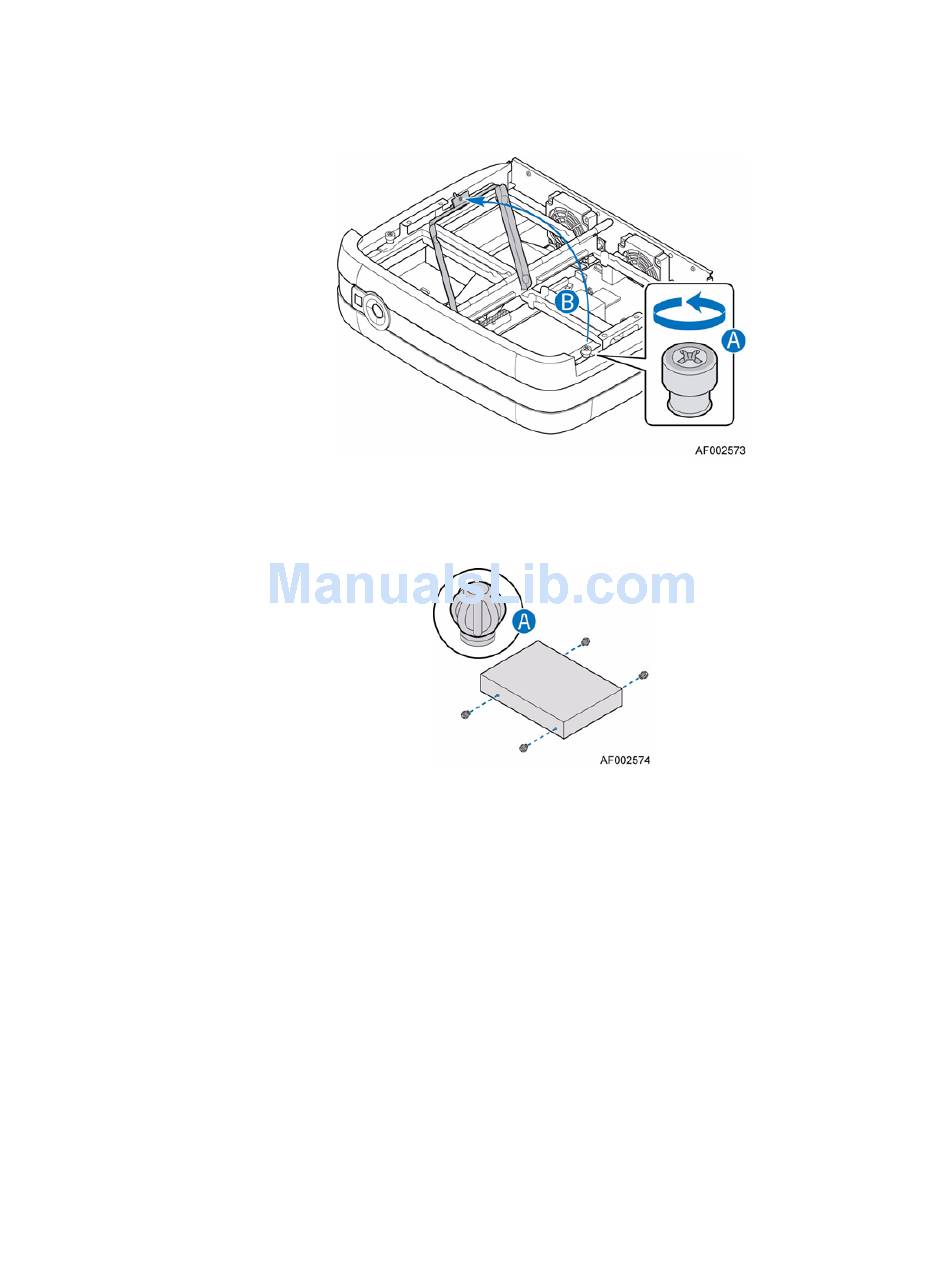

Figure 19. Unlatching Drive Retention Bracket
Figure 20. Attaching RVR Screws to Hard Drive
Hardware Installations and Upgrades
23
