Hardware Installations and Upgrades
Converting Feet from Horizontal to Vertical Configuration
1. Remove feet from horizontal position slots in chassis (see letter "A" in the following
figure) and insert into vertical position slots (see letter "B"). Feet are keyed to fit only
one way in slots.

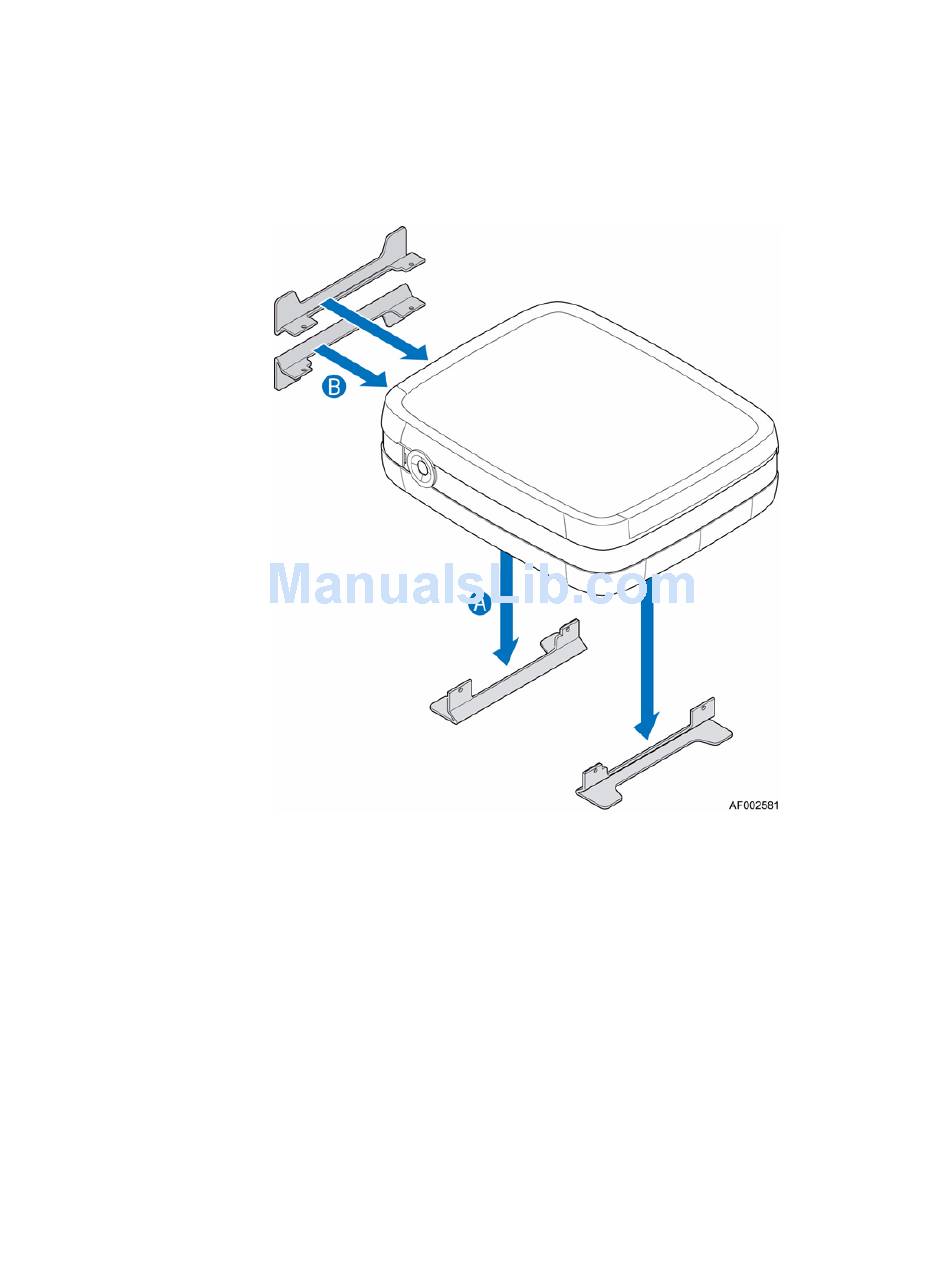

Figure 14. Converting Feet from Horizontal to Vertical Configuration
18
Intel® Entry Storage System SS4200-E User Guide
