Hardware Installations and Upgrades

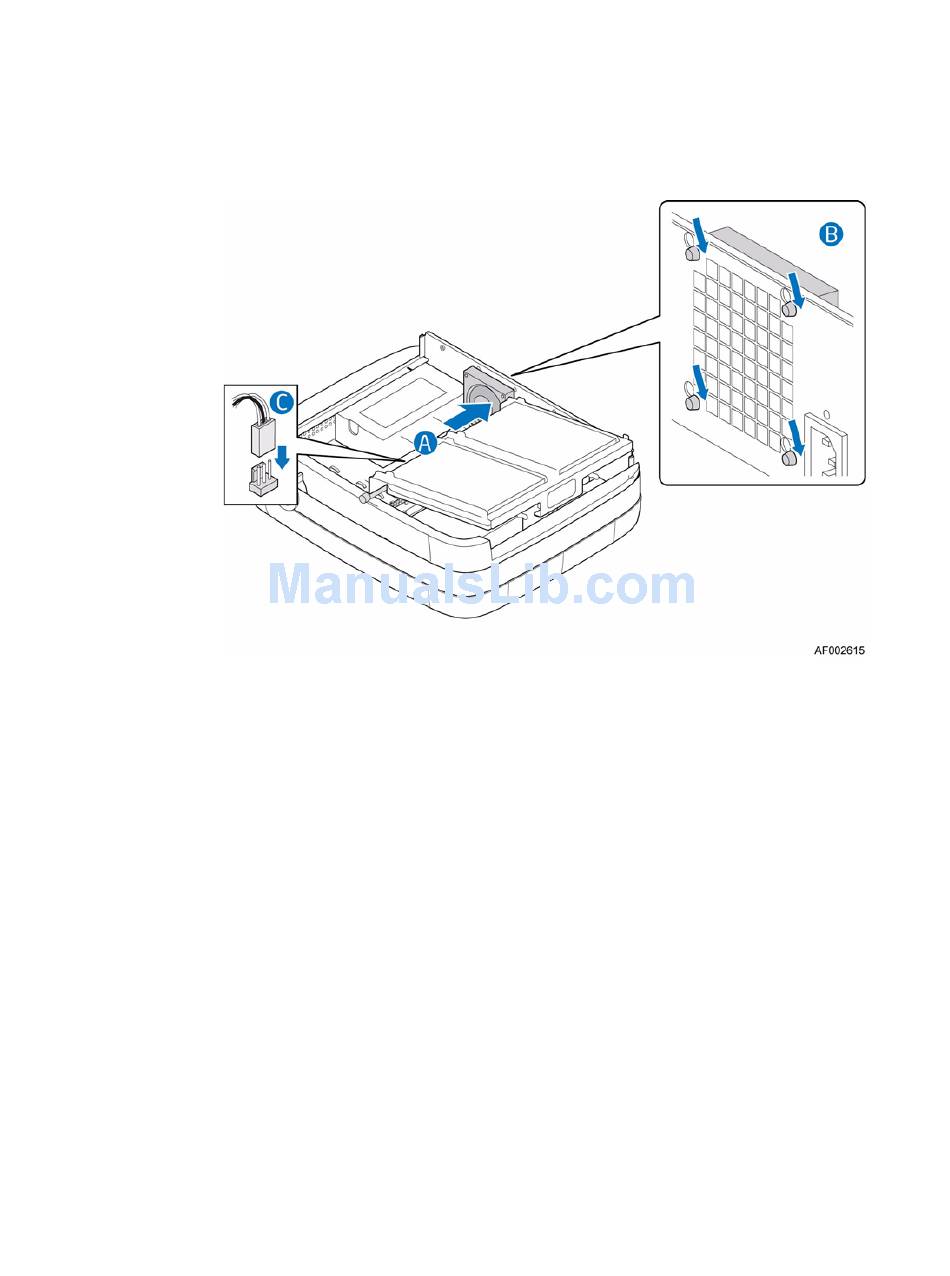

17. Position the new cooling fan in the system (see letter "A" in the following figure).
Slide rubber mounting grommets on back of cooling fan into corresponding keyhole
slots in chassis (see letter "B"). Connect the fan cable to the system board (see letter
"C").
Figure 41. Installing New Left Cooling Fan
Intel® Entry Storage System SS4200-E User Guide
39
