Figure 29. Replacing Airflow Baffle; Figure 30. Lowering Left Side Of Drive Tray Assembly - Intel SS4200-E - Entry Storage System NAS Server User Manual

Hardware Installations and Upgrades
12. Replace the airflow baffle. Ensure that the airflow baffle is securely inserted into the
two chassis tabs at each end of the baffle. This may require compressing the airflow
baffle slightly to slide it into the chassis tabs.
13. Return the left side of the drive tray assembly to its operational position (see letter
"A" in the following figure).
14. Re-install the enclosure cover. For instructions, see
on page
15. Reconnect all peripheral devices and the AC power cord. Power up the storage
system.
30

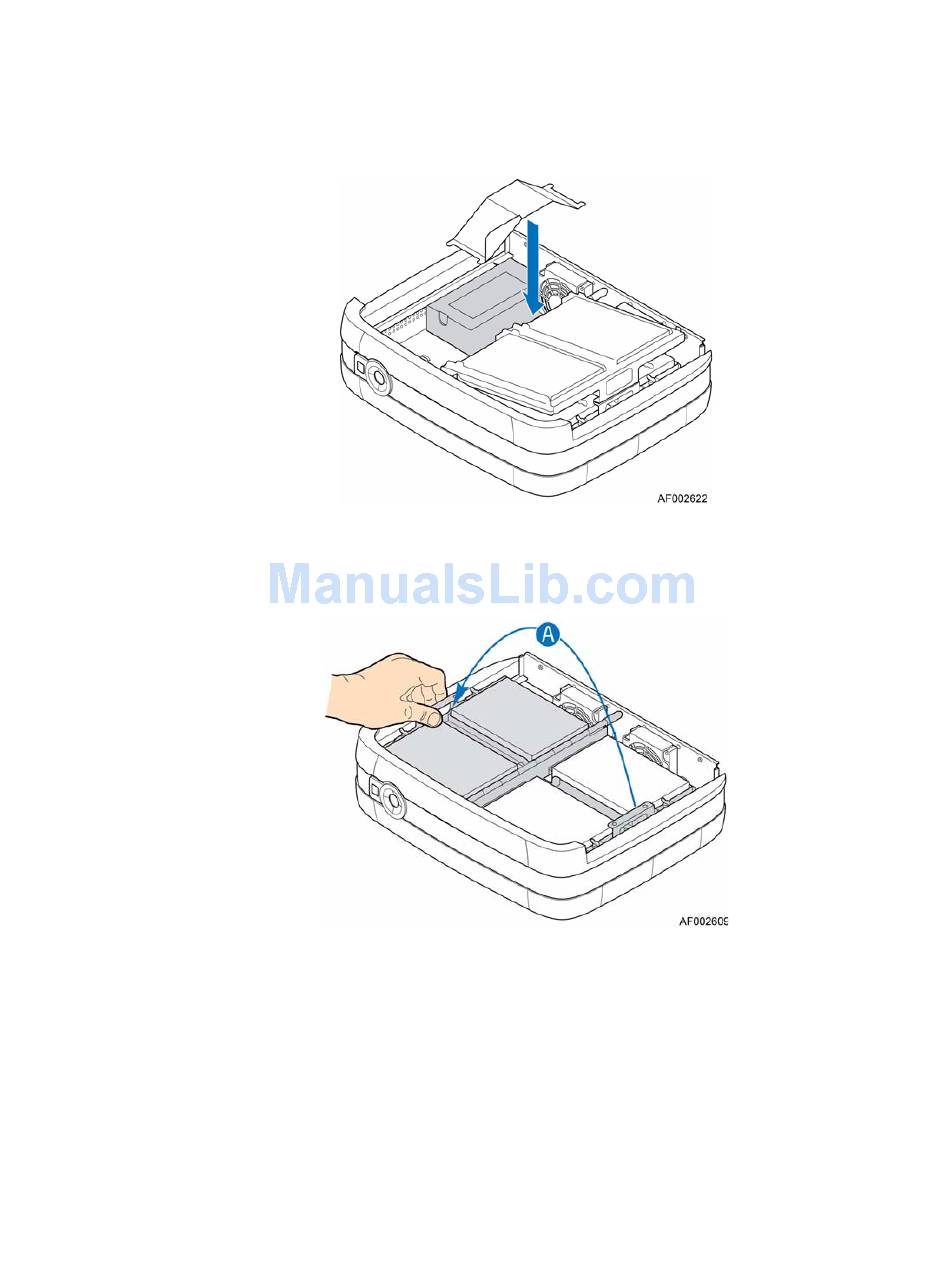

Figure 29. Replacing Airflow Baffle

Figure 30. Lowering Left Side of Drive Tray Assembly

21.
"Installing the Enclosure Cover"
