Hardware Installations and Upgrades
3. Turn off all peripheral devices connected to the storage system. Power down the
storage system.
4. Disconnect the AC power cord.
5. Remove the enclosure cover. For instructions, see
on page
6. Lift the left side of the drive tray assembly (see letter "A" in the following figure).
7. Remove the airflow baffle. This may require compressing the airflow baffle slightly to
slide it out of the two chassis tabs at each end of the baffle.
26
20.

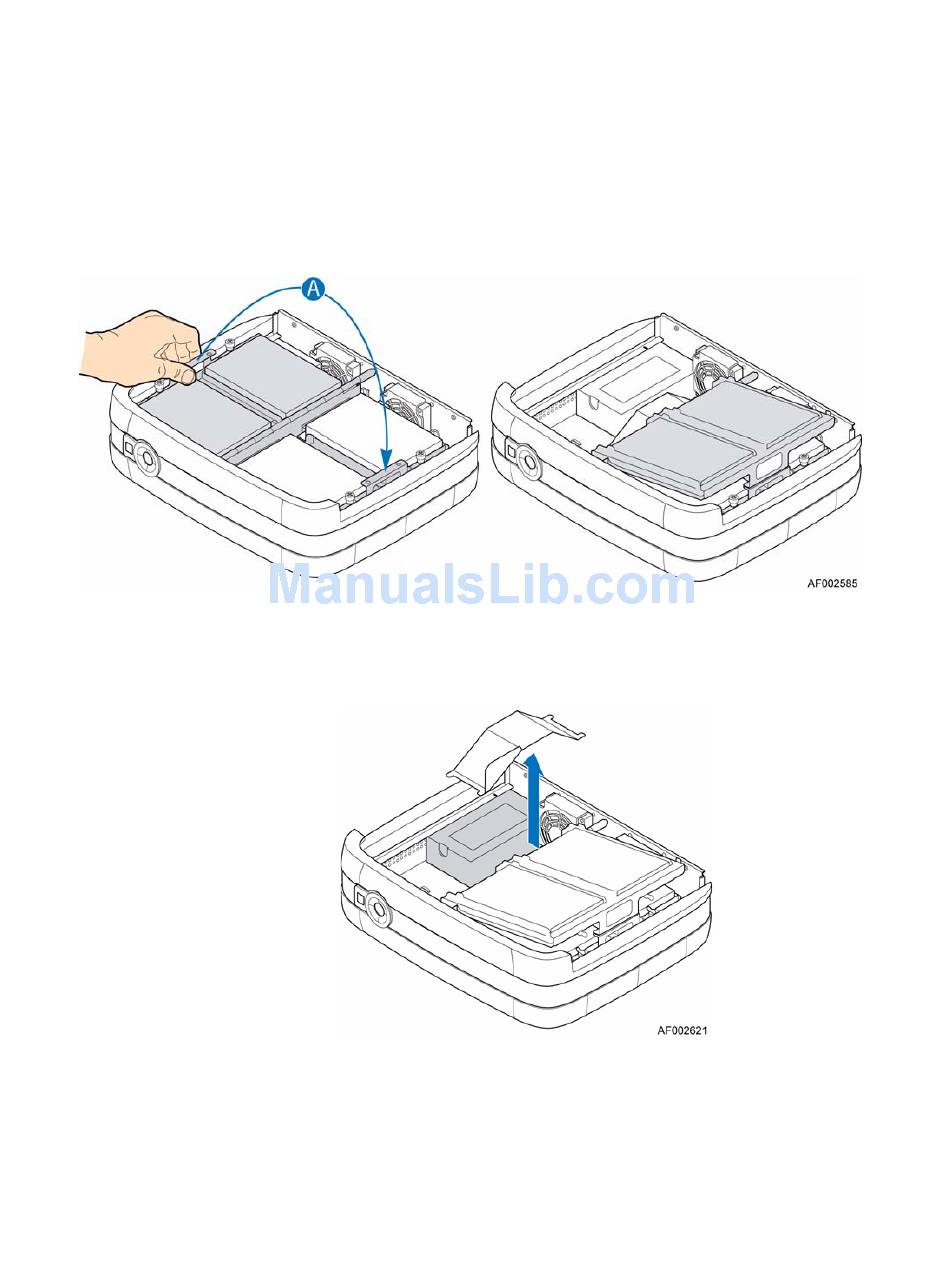

Figure 24. Lifting Left Side of Drive Tray Assembly

Figure 25. Removing Airflow Baffle
