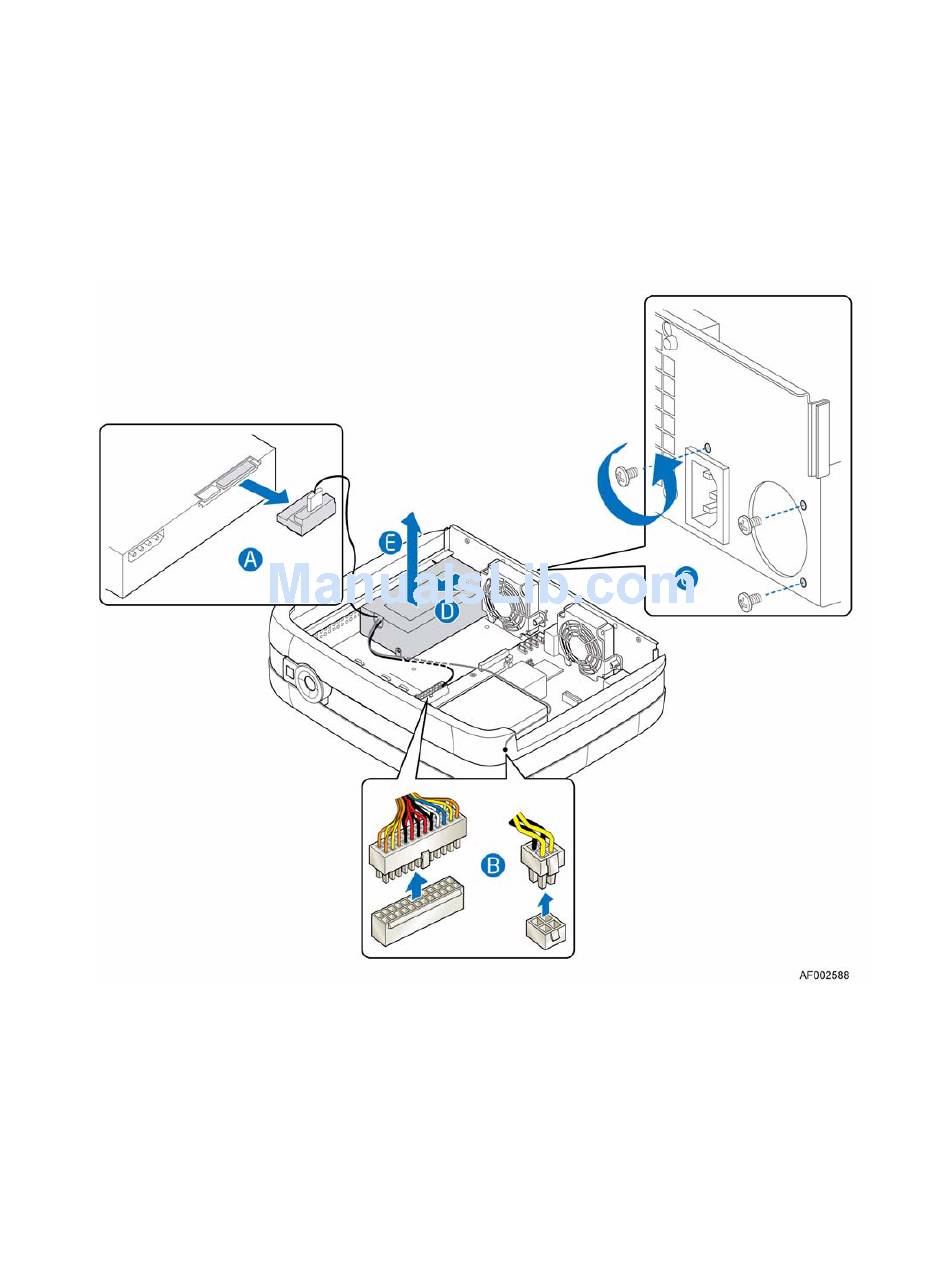

8. Disconnect the power cables from all installed hard drives (see letter "A" in the

following figure). Disconnect the power cables from the main power and CPU power

connectors on the system board (see letter "B"). Remove the three screws at the rear

of chassis securing the power supply to the system (see letter "C"). Slide the power

supply forward (see letter "D") and then lift out of the system (see letter "E").

Note: You may need to remove cable ties securing power cables to the middle of the

drive tray assembly.

Note: Drive tray assembly removed for illustrative purposes.
