Hardware Installations and Upgrades

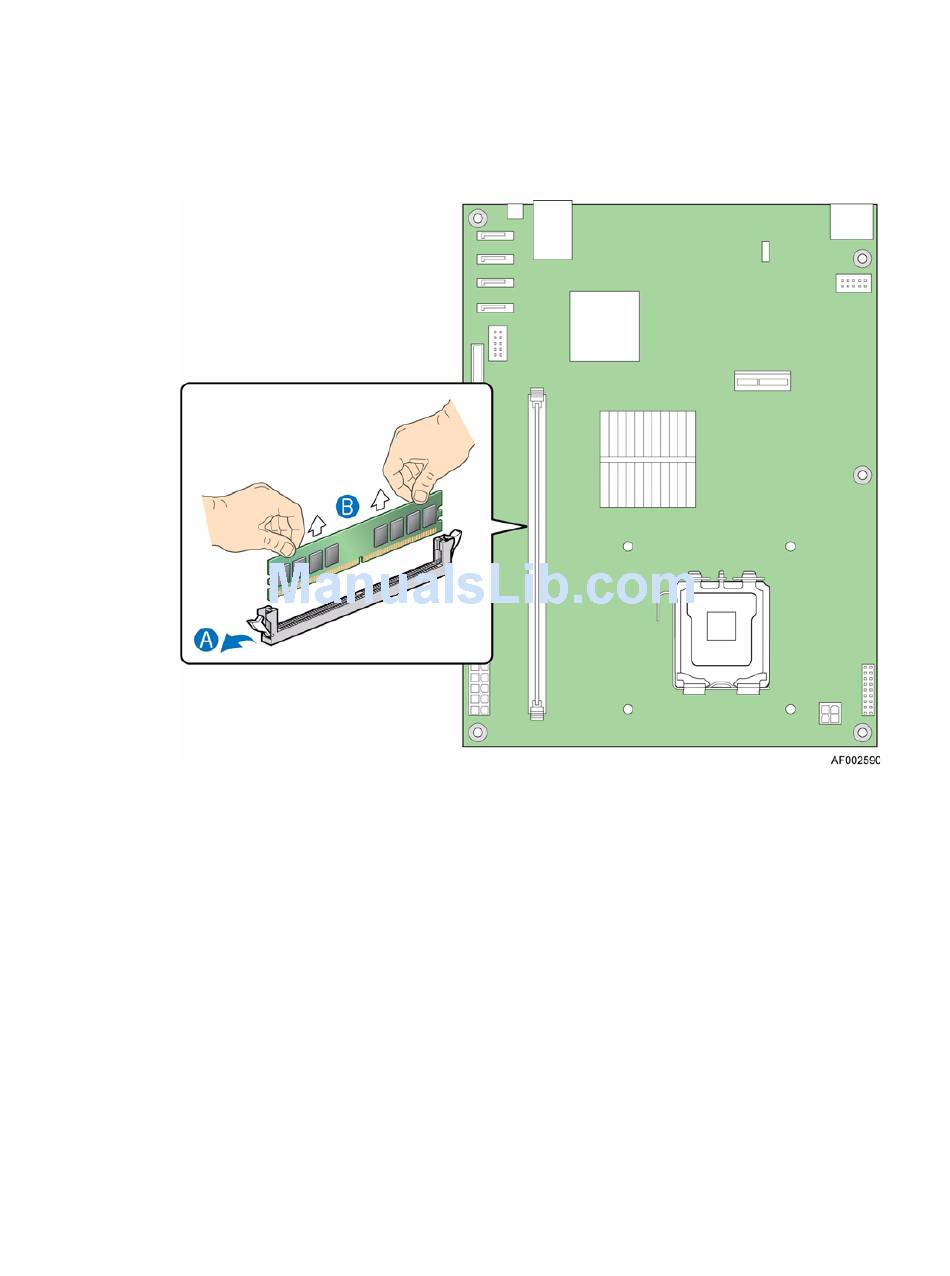

6. Locate the DIMM socket (see the following figure). Push the clips at each end of the
DIMM socket outward to the open position (see letter "A"). Holding the DIMM by its
edges, lift it from the socket (see letter "B"). Store the DIMM in an anti-static
package.
42

Figure 45. Locating DIMM Socket and Removing Memory

Intel® Entry Storage System SS4200-E User Guide
