Hardware Installations and Upgrades
To replace left cooling fan:

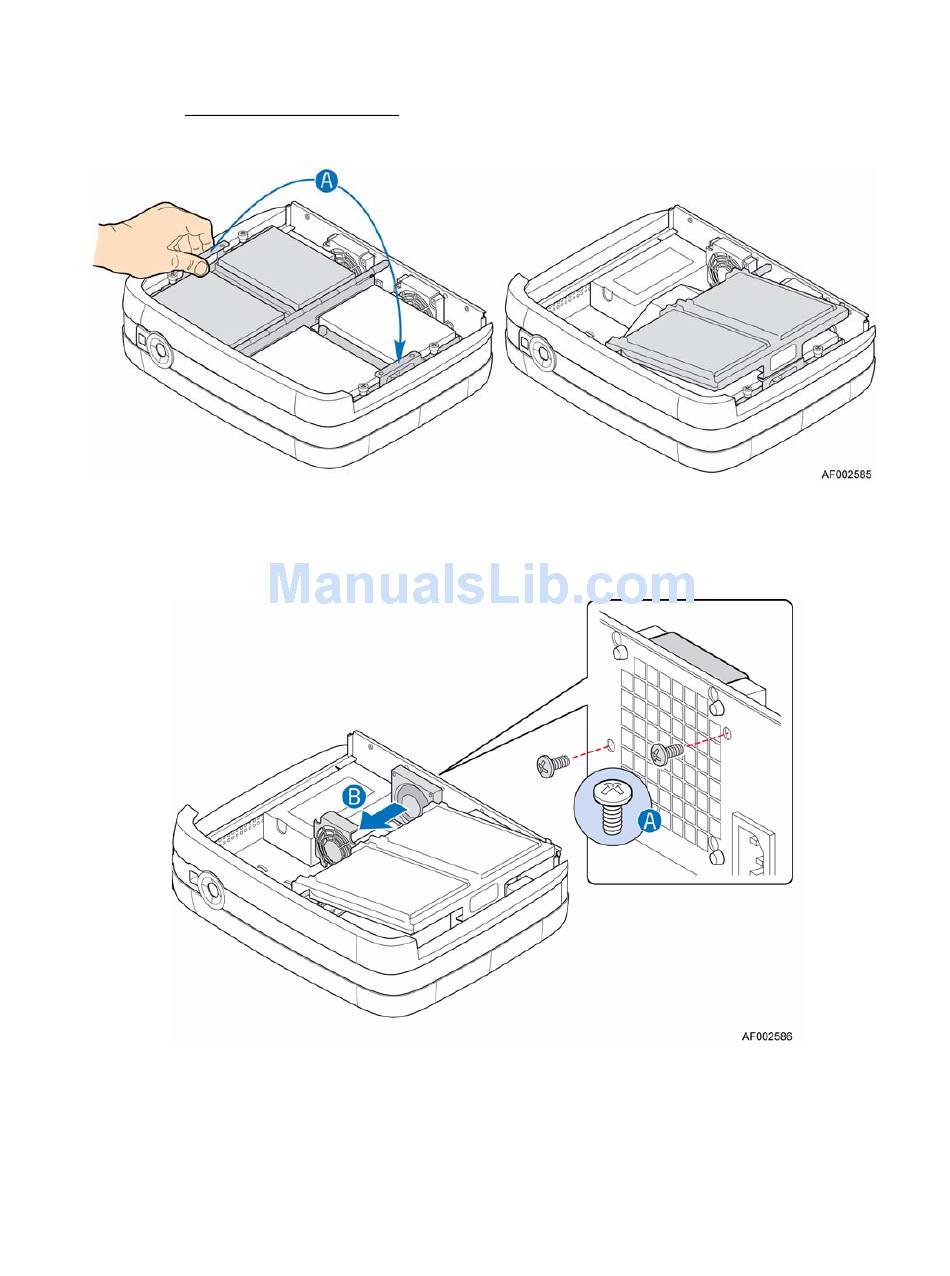

14. Lift up the left side of the drive tray assembly (see letter "A" in the following figure).
Figure 38. Lifting Left Side of Drive Tray Assembly
15. Remove the two screws securing the fan guard to the rear of the chassis (see letter "A"
in the following figure). Remove the fan guard (see letter "B").
Figure 39. Removing Left Fan Guard
Intel® Entry Storage System SS4200-E User Guide
37
