Initial Setup
For Horizontal Configuration: Remove feet from package. Insert feet into horizontal
position slots in chassis (see letter "A" in the following figure). Feet are keyed to fit only
one way in slots.
For Vertical Configuration: Remove feet from package. Insert feet into vertical position
slots in chassis (see letter "A" in the following figure). Feet are keyed to fit only one way.
Intel® Entry Storage System SS4200-E User Guide

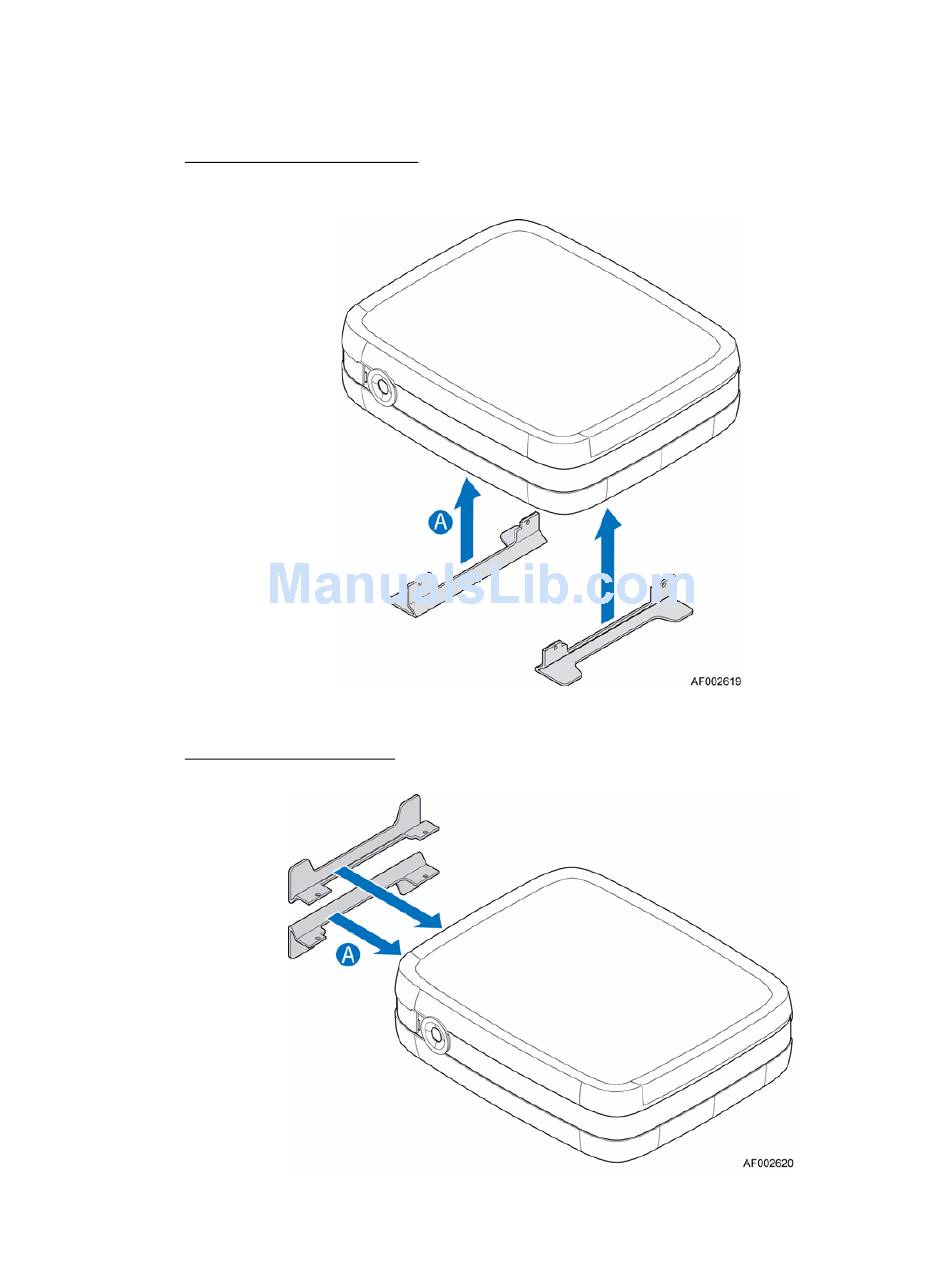

Figure 12. Orienting Feet for Initial Horizontal Configuration
Figure 13. Orienting Feet for Initial Vertical Configuration
Hardware Installations and Upgrades
17
