TIMTER™ Multi-mode Dual
Telemetry Transmitter
When you click on the pinout link in the list, it should open the file in a new tab in the same browser window. Some
applications may only allow downloads, but most browsers allow viewing, depending on the local settings. Most
browsers allow you to right click on the link and determine how to open it or print it, regardless of the default
setting.

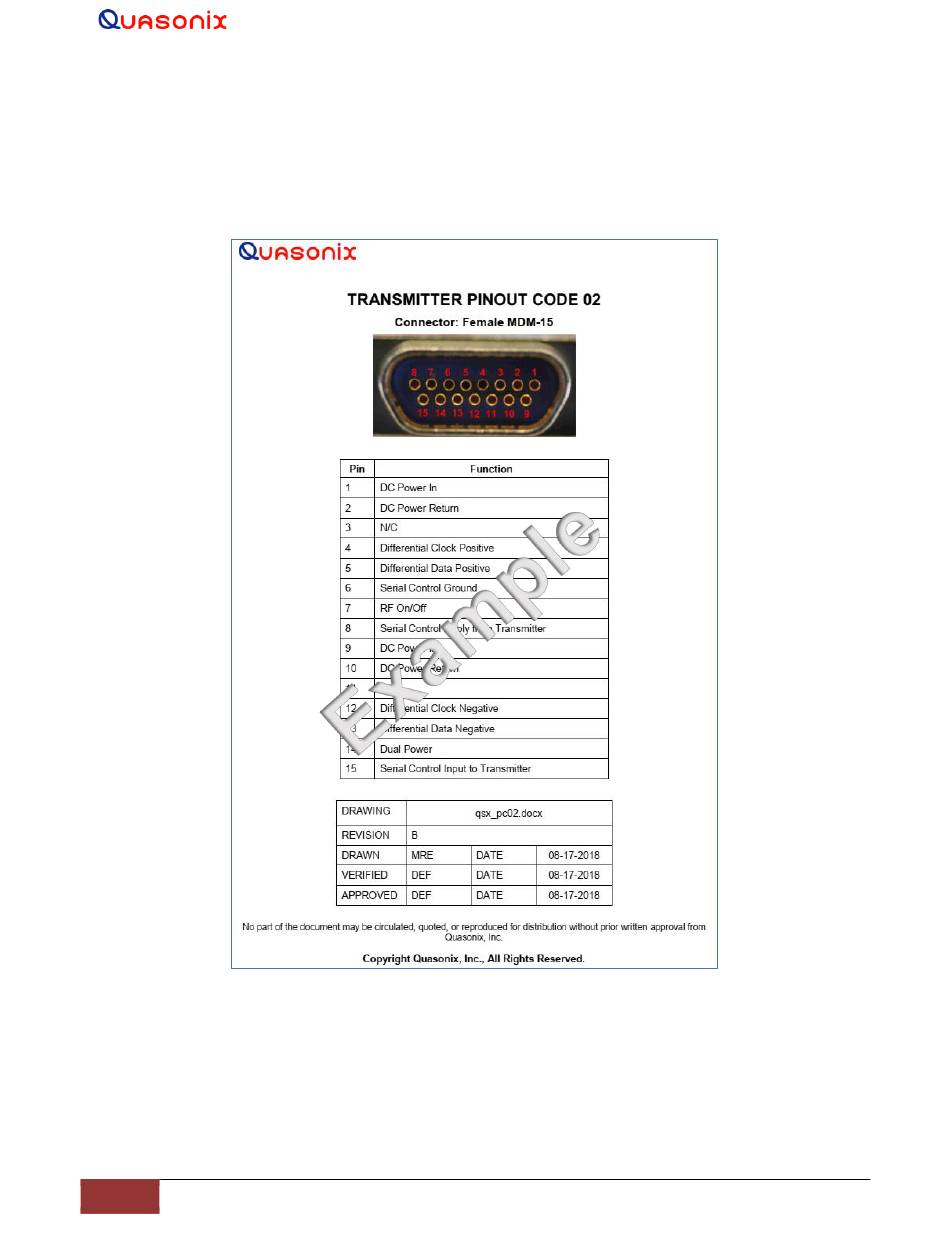

Figure 26: Example Quasonix Pinout Drawing
