TIMTER™ Multi-mode Dual
Telemetry Transmitter
3 Installation Instructions
3.1 Mechanical
3.1.1 Standard Dual Transmitter
The 7.2 cubic inch L or S band TIMTER™ Dual Transmitter is designed to be mounted by four (4) 1 1/4 inch
screws through the holes in the four corners, as depicted in Figure 22 and Figure 23. At 1.2 inches tall, the Dual
TIMTER™ can serve as a drop-in replacement for common 2.0 inch x 3.0 inch transmitters.
Quasonix also offers a 9.0 cubic inch C band TIMTER™ Dual Transmitter. This 1.5 inch tall dual transmitter is
designed to be mounted by four (4) 1 1/2 inch screws through the holes in the four corners
Your mounting requirements may be different. Contact Quasonix with all mechanical or installation questions.

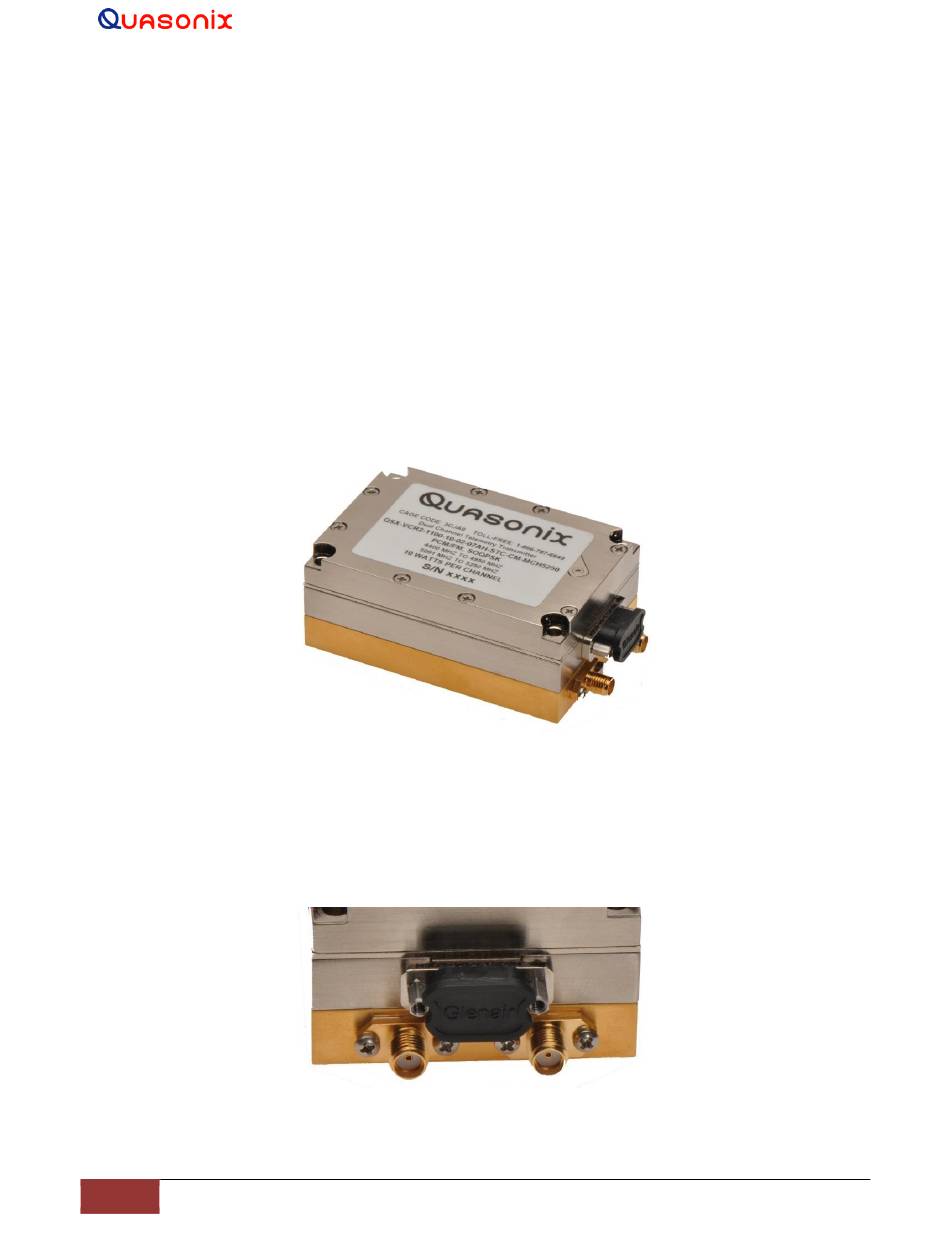

Figure 18: 7.2 in3 TIMTER™ Dual Transmitter
Dual RF outputs (Figure 19), up to 10 watts each with a single Micro-D input, can be configured with a single or
dual data input.
Figure 19: Dual Transmitter RF Outputs
