TIMTER™ Multi-mode Dual
Telemetry Transmitter
2.4 Pre-wired MDM-15 for TTL Units
Part Number: QSX-AC-MDM15-36-SOCK
Quasonix offers an MDM-15 connector with 36" color-coded pigtail cables for connecting to transmitters with the
TTL clock and data baseband interface.

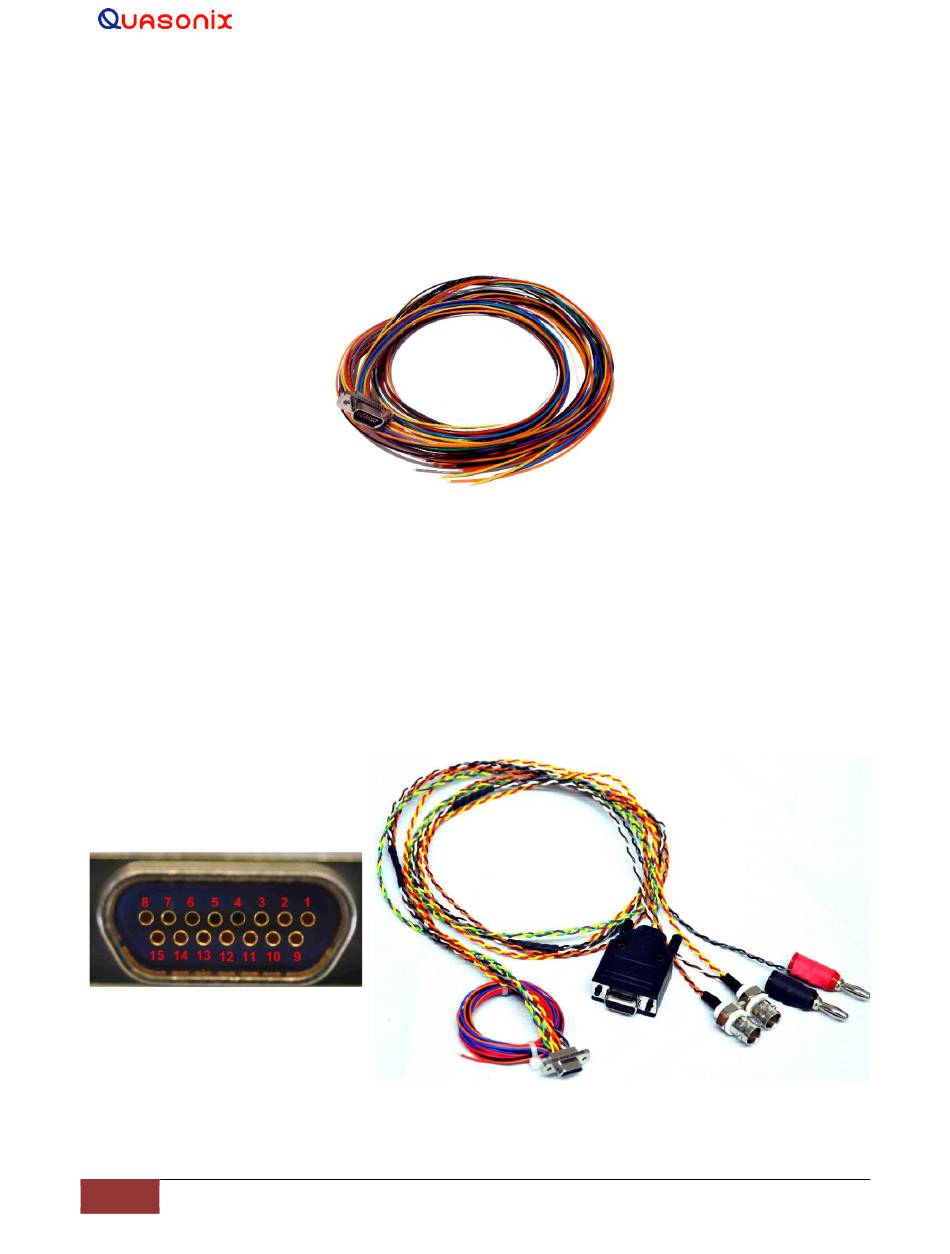

Figure 11: Pre-wired MDM-15 with 36" Pigtails for TTL
2.5 MDM-15 Wiring Harness for RS-422 Units
Part Number: QSX-AC-MDM15-HARNESS-PIN
An MDM-15 wiring harness for connecting to transmitters with RS-422 clock and data baseband interface is shown
in Figure 13. It includes banana plugs for power and ground, BNC connectors for clock and data, and a DB-9
connector for serial control and is 35 to 36 inches long depending on the connectors.
Figure 12 shows the MDM-15 socket connector installed on RS-422 transmitters.
Figure 12: MDM-15 Socket
Figure 13: MDM-15 Cable Harness Used with RS-422
Connector on an RS-422
Transmitters
Transmitter
