TIMTER™ Multi-mode Dual
Telemetry Transmitter
2 Accessories
Quasonix offers a number of optional accessories for TIMTER™, including a fan-cooled, bench heat sink, a 2.5" x
3.5" adapter plate, pre-wired mating MDM-15 connectors, complete MDM-15 cable assemblies, a ruggedized
handheld programmer, and a USB to serial converter cable. Regardless of the heat sink, Quasonix strongly suggests
using a thermal pad, such as Q-Pad® II from Bergquist. Refer to section 3.2, for additional thermal information.
Contact Quasonix for pricing and availability of TIMTER™ accessories.
2.1 Bench Heat Sink (for ground applications only)
Part Number: QSX-AC-32-HS-12V
The heat sink assembly includes an integral +12 VDC fan and a power supply transformer, shown in Figure 3. The
heat sink is shown with a mounted 6 cubic inch TIMTER™ in Figure 4.

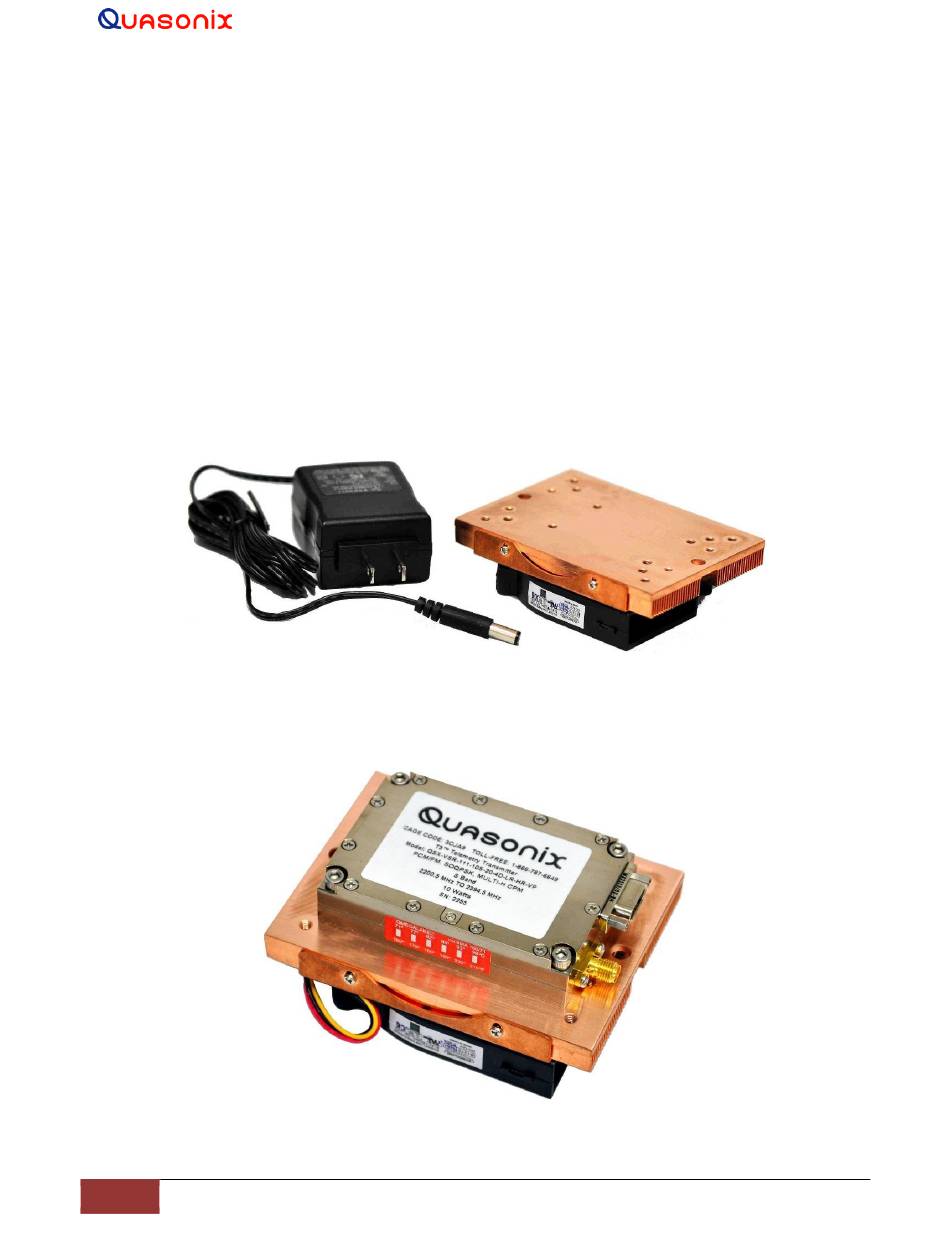

Figure 3: Bench Heat Sink and Power Supply
Figure 4: Bench Heat Sink shown with 6 cubic inch TIMTER™
