TIMTER™ Multi-mode Dual
Telemetry Transmitter
Quasonix
Transmitter
Quasonix Rack Mount RDMS Receiver
RF Signal Split into
CH1 and CH2
Single RF Signal from Transmitter Sent to Splitter

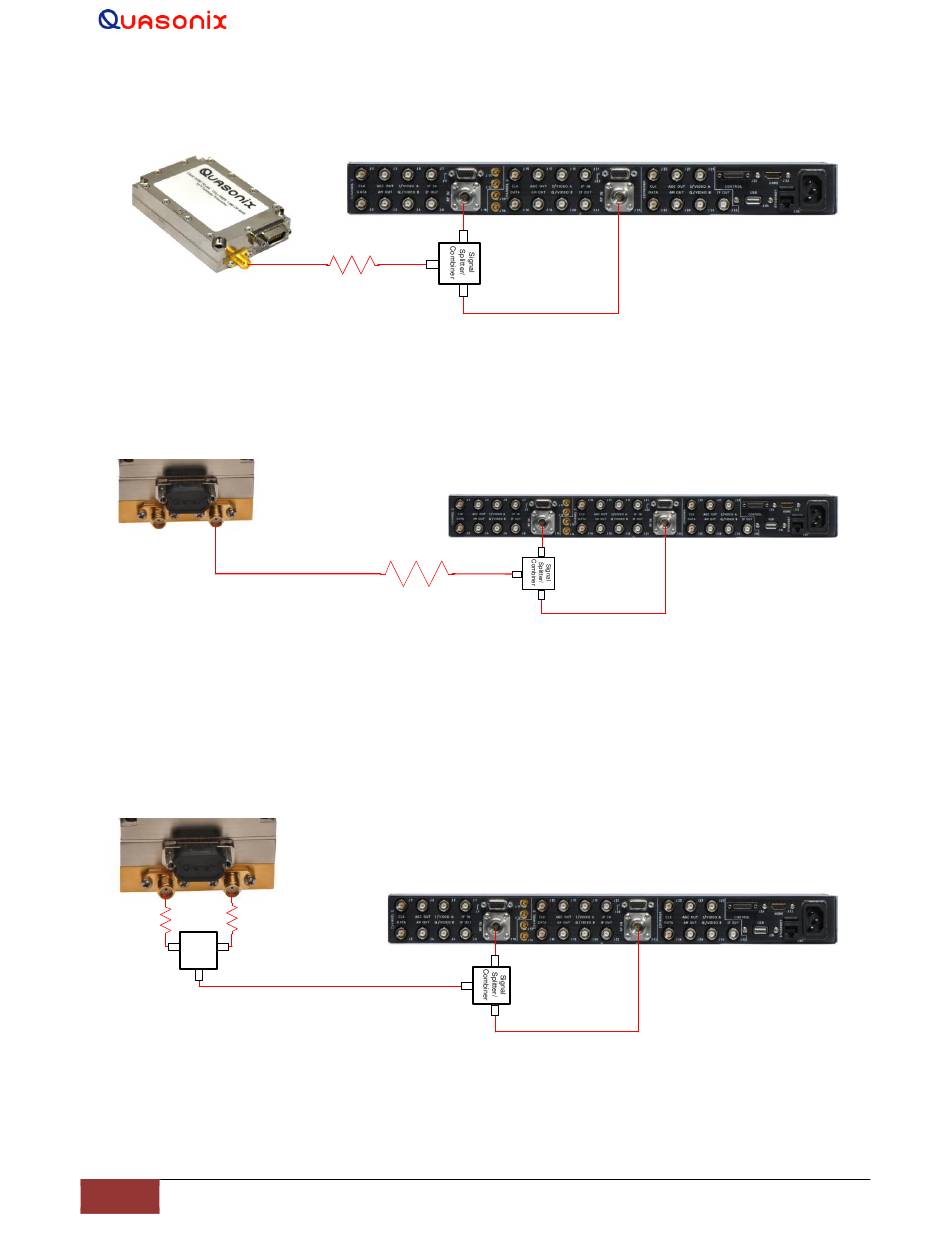

Figure 51: Example Bench RF Configuration for Single Transmitter and Rack Mount Receiver
Quasonix Dual
Transmitter
Quasonix Rack Mount RDMS Receiver
Ch1
Without STC,
RF Signal-Direct Connect from Transmitter
Channel 1 to Splitter
RF Signal Split into
CH1 and CH2
Single RF Signal Sent to Splitter
Figure 52: Example Bench RF Configuration for Dual Transmitter and RM Receiver—Without STC
For STC, the Rack Mount receiver still requires a splitter to accept the RF input, but the input to the splitter must be
combined RF outputs from Channel 1 and Channel 2 of a dual transmitter, as shown in Figure 53.
Quasonix Dual
Transmitter
Quasonix Rack Mount RDMS Receiver
Ch1
Ch2
Two RF Signals from
Signal
Dual Transmitter
Splitter/
Combiner
Combined into One Signal
RF Signal Split into
CH1 and CH2
Single RF Signal Sent to Splitter
Figure 53: Example Bench RF Configuration for Dual Transmitter and RM Receiver—With STC
