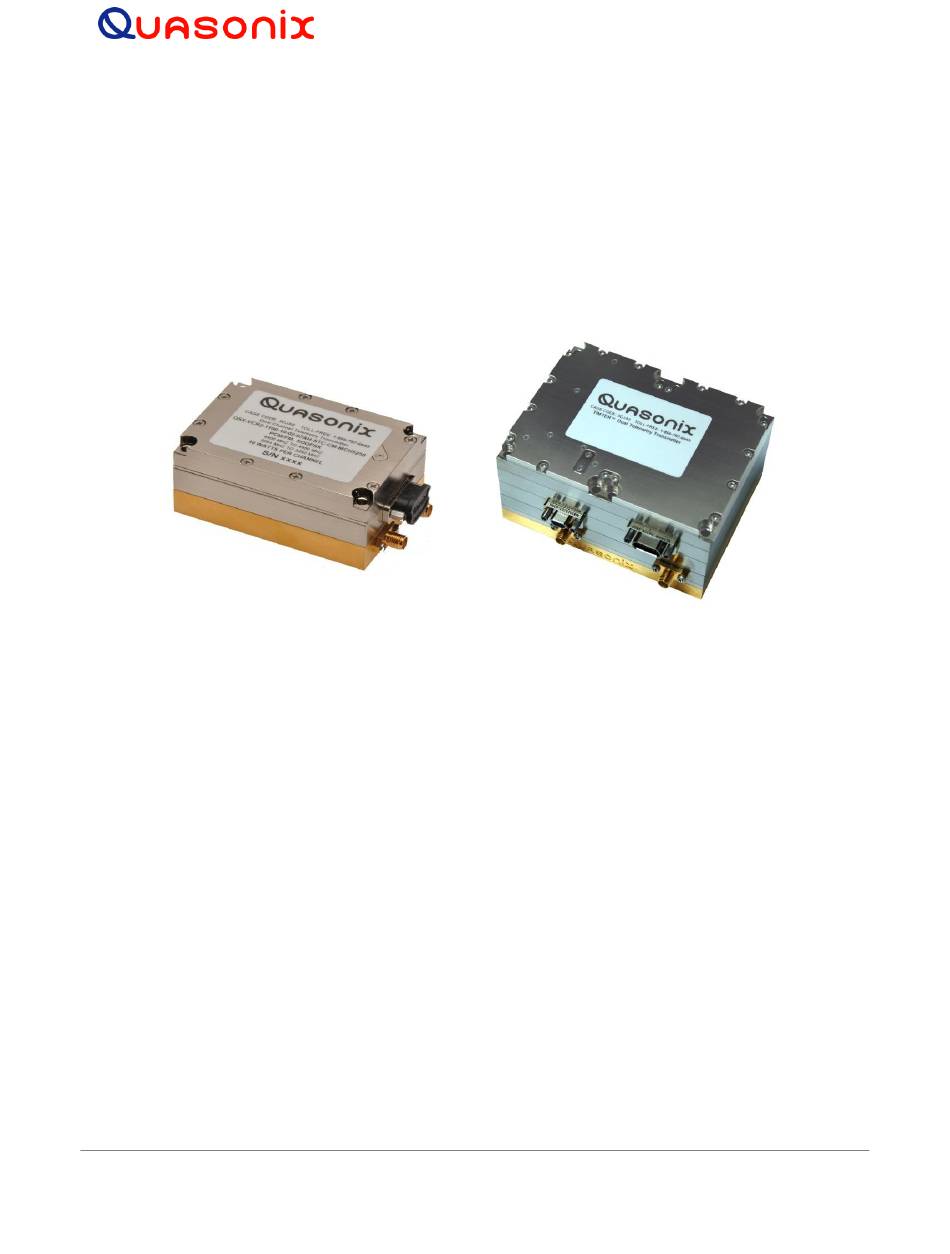

Page 1 *** Revision 1.4.10 *** Specifications subject to change without notice. All Quasonix products are under U.S. Department of Commerce jurisdiction; not covered by ITAR No part of the document may be circulated, quoted, or reproduced for distribution without prior written approval from Quasonix, Inc.
Page 2: Table Of Contents
TIMTER™ Multi-mode Dual Telemetry Transmitter Table of Contents Introduction ............................1 Description ........................... 1 Nomenclature ..........................1 Part Number Field Codes ......................3 1.3.1 Frequency Bands ........................3 1.3.2 Clock and Data Interface ......................5 1.3.3 Serial Control Interface ......................6 1.3.4...
Page 3 TIMTER™ Multi-mode Dual Telemetry Transmitter Forward Error Correction / Low Density Parity Check (LDPC) Option – LD ......11 1.3.23 Forward Error Correction / Low Density Parity Check (LDPC) Option – LD6 ....... 11 1.3.24 Low Bit Rate Option – LR ...................... 12 1.3.25...
Page 4 System Status Command – SY ................75 4.2.3.1.7 RF Output Notes ..........................76 RF Power ........................... 76 Muting RF Output ........................76 Troubleshooting the RF on a Quasonix Transmitter ..............76 Performance Specifications ......................... 80 RF Output ..........................80 Electrical Current ........................80 Environmental Specifications..................... 80 6.3.1...
Page 5 Figure 2: CCSDS 131.0-B-1 Rendering of Basic Convolutional Encoder Diagram ........9 Figure 3: Fan-cooled Heat Sink and Power Supply ..................14 Figure 4: Fan-cooled Heat Sink with 6 cubic inch TIMTER™ ..............14 Figure 5: Transmitter-powered Heat Sink, Pigtail Cable, SMA Extender, and Adapter Plate ....15 Figure 6: Transmitter-powered Heat Sink Mounted on an 04AB Package ..........
Page 6 Receiver in STC Mode ..........................24 Figure 23: Outline Drawing, TIMTER™ Dual Transmitter, 07AH Package, S-band Female MDM-15..25 Figure 24: Outline Drawing, TIMTER™ Dual Transmitter, 07AN Package, S-band Male MDM-15 ... 26 Figure 25: 24.0 in3 TIMTER™ Dual Transmitter ..................27 Figure 26: Outline Drawing, TIMTER™...
Page 7 Table 15: TIMTER™ EMI Compliance ......................81 Table 16: Carrier Frequencies (MHz) ......................81 Table 17: Transmitter BER Specifications with Quasonix Demodulator ............. 83 Table 18: K and m Values per Waveform ....................84 Table 19: Random Vibration Spectrum ....................... 90 Table 20: Dual Transmitter Input Commands for Channel 1 and Channel 2 ..........
Page 8: Introduction
This document describes the Installation and Operation of Quasonix’ TIMTER Multi- mode Dual Telemetry Transmitters. The 7.2 cubic inch TIMTER™ Dual Transmitter has a compact 2.0 inch by 3.0 inch design that provides a single MDM-15 interface as a primary connector for power, clock and data, and serial communications, while providing two separate RF outputs via SMA connectors.
Page 9 TIMTER™ Multi-mode Dual Telemetry Transmitter The available TIMTER™ software and hardware options are listed below. Refer to section 1.3 for detailed descriptions of each option. • Automatic carrier wave output Adapter plate for 2.5” x 3.5” footprint – Include this hardware accessory with order •...
Page 10: Part Number Field Codes
1.3 Part Number Field Codes 1.3.1 Frequency Bands Frequency band codes are listed in Table 2. All frequency bands may be tuned 0.5 MHz above or below the stated frequency. For higher power requirements, contact Quasonix. Table 2: Frequency Band Codes Band ID Band...
Page 11 TIMTER™ Multi-mode Dual Telemetry Transmitter Band ID Band Minimum Maximum Default Freq Tuning Code Freq Freq Steps Power All bands 1435.5 MHz 1534.5 MHz 1450.5 MHz 0.5 MHz 10 W 1750.0 MHz 1855.0 MHz 2200.5 MHz 2394.5 MHz 4400.0 MHz 4950.0 MHz...
Page 12: Clock And Data Interface
TIMTER™ Multi-mode Dual Telemetry Transmitter Band ID Band Minimum Maximum Default Freq Tuning Code Freq Freq Steps Power Lower L, C, and Mid C 1435.5 MHz 1534.5 MHz 1450.5 MHz 0.5 MHz 10 W 4400.0 MHz 4950.0 MHz 5091.0 MHz 5150.0 MHz...
Page 13: Serial Control Interface
TIMTER™ Multi-mode Dual Telemetry Transmitter Clock Baseband Clock and Data Interface Defaults and Data Interface Code Dual-mode — Selectable between TTL (terminated 10k ohms to TTL 10k ohms ground) and RS-422 (terminated 120 ohms differential) Dual-mode — Selectable between TTL (terminated 75 ohms to ground)
Page 14: Artm Tier Ii (Multi-H Cpm)
TIMTER™ Multi-mode Dual Telemetry Transmitter Table 6: ARTM Tier I Codes Part Number Code SOQPSK-TG (ARTM Tier I) Absent Present 1.3.6 ARTM Tier II (Multi-h CPM) ARTM Tier II codes are listed in Table 7. Table 7: ARTM Tier II Codes...
Page 15: Packages
0-8 follows the BR option request. Corresponding values are as follows: 0 = 57600 (Standard default for all Quasonix transmitters); 1 = 4800; 2 = 9600; 3 = 19200; 4 = 38400; 5 = 56000; 6 = 57600; 7 = 115200, 8 = 230400.
Page 16: Convolutional Encoder Option - Ce
TIMTER™ Multi-mode Dual Telemetry Transmitter 1.3.14 Convolutional Encoder Option – CE The CE option enables convolutional encoding and NRZ-M conversion. This encoding adds redundant information to the transmitted data stream to help detect and correct bit errors that may occur, particularly due to predominantly Gaussian noise.
Page 17: Clock-Free Baseband Interface Option - Cf
1.3.20 High Bit Rate Option – HR The standard TIMTER supports bit rates from 0.1 to 28 Mbps in SOQPSK-TG and MULTI-h CPM modes, 0.05 to 14 Mbps in PCM/FM (Tier 0) mode and in all legacy modes. The HR option increases the bit rate to a maximum of 46 Mbps (23 Mbps for PCM/FM).
Page 18: Internal Clock And Data Option - Id
TIMTER™ Multi-mode Dual Telemetry Transmitter Table 11: Standard Bit Rates Compared to Low/High Rate Options Standard Bit Rate With Low Rate Option With High Rate Option ARTM Tier 0 Modulation 0.05 -14 Mbps Down to 0.025 Mbps Up to 23 Mbps (PCM/FM) 0.1 —...
Page 19: Low Bit Rate Option - Lr
Without the PS option, the TIMTER™ supports only one hardware preset, which it reverts to at power-up. The PS in the option string specifies that the unit supports multiple hardware presets (2, 4, 8, or 16). Presets are engaged by grounding various combinations of pins on the terminal/parallel control selection.
Page 20: Wide Input Voltage Range Option - Wv
TIMTER™ Multi-mode Dual Telemetry Transmitter 1.3.32 Wide Input Voltage Range Option – WV The standard TIMTER™ operates from +28 + 4 VDC. The WV option extends operating input voltage range as shown in following table. Voltage Ranges with WV Option...
Page 21: Accessories
Telemetry Transmitter 2 Accessories Quasonix offers a number of optional accessories for TIMTER™, including a fan-cooled heat sink, a 2.5” x 3.5” adapter plate, pre-wired mating MDM-15 connectors, complete MDM-15 cable assemblies, a ruggedized handheld programmer, and a USB to serial converter cable. Contact Quasonix for pricing and availability of TIMTER™...
Page 22: Transmitter-Powered Heat Sink
Figure 5: Transmitter-powered Heat Sink, Pigtail Cable, SMA Extender, and Adapter Plate The heat sink is shown mounted on a standard 04AB TIMTER™ in Figure 6 and mounted on a larger 07AE TIMTER™ in Figure 7. The pigtail cable connects to any TIMTER™, regardless of MDM-15 gender, by plugging the pigtail into either the male or female connector, as shown in Figure 8 and Figure 9.
Page 23: Figure 6: Transmitter-Powered Heat Sink Mounted On An 04Ab Package
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 6: Transmitter-powered Heat Sink Mounted on an 04AB Package Figure 7: Transmitter-powered Heat Sink Mounted on a 07AE Package Quasonix, Inc.
Page 24: Adapter Plate
Part Number: QSX-AC-AP-96 The adapter plate, shown in Figure 11, allows for the standard 2” x 3” footprint TIMTER™ to be mounted to the larger 2.5” x 3.5” mounting surface occupied by other industry transmitters. Note, this adapter plate is not used with the Transmitter-powered Heat Sink.
Page 25: Pre-Wired Mdm-15 For Rs-422 Units
Figure 12: Pre-wired MDM-15 with 36” Pigtails for RS-422 2.5 Pre-wired MDM-15 for TTL Units Part Number: QSX-AC-MDM15-36-SOCK Quasonix offers an MDM-15 connector with 36” color-coded pigtail cables for connecting to transmitters with the TTL clock and data baseband interface. Quasonix, Inc.
Page 26: Wiring Harness For Rs-422 Units
2.7 MDM-15 Wiring Harness for TTL Units Part Number: QSX-AC-MDM15-HARNESS-SOCK Quasonix offers an MDM-15 wiring harness for connecting to transmitters with TTL clock and data baseband interface. It includes banana plugs for power and ground, BNC connectors for clock and data, and a DB-9 connector for serial control and is 35 to 36 inches long depending on the connectors.
Page 27: Ruggedized Handheld Programmer
Part Number: QSX-AC-HHPROG-1050N-B The 2 Generation Handheld Programmer is an ultra-rugged Pocket PC with custom Quasonix software that allows the user to configure transmitters through its serial interface directly in the field. The programmer is shown in Figure Figure 16: Ruggedized Handheld Programmer...
Page 28: Usb To Serial Converter Cable
Part Number: QSX-AC-DSWBX This accessory enables configuration of a TIMTER™ via an external digital switch box. Six LED digits are used to display the mode and frequency. A channel selector for channel 1 or channel 2 enables operation with a Quasonix Dual Telemetry Transmitter.
Page 29: Installation Instructions
Standard Dual Transmitter The 7.2 cubic inch L or S band TIMTER™ Dual Transmitter is designed to be mounted by four (4) 1 1/4 inch screws through the holes in the four corners, as depicted in Figure 23 and Figure 24. At 1.2 inches tall, the Dual TIMTER™...
Page 30: Figure 21: Dual Transmitter Rf Outputs Connected To Upper And Lower Antenna
With the PA on the bottom and the dual transmitter facing the user, the left connector corresponds to channel 2 output (“code 2” if referring to the STC constellation display on a Quasonix receiver) and the right connector corresponds to channel 1 output (“code 1” if referring to the STC constellation display on a Quasonix receiver).
Page 31: Figure 22: Dual Transmitter Rf Outputs Connected To Upper And Lower Antenna Transmitting To Receiver In Stc Mode
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 22: Dual Transmitter RF Outputs Connected to Upper and Lower Antenna Transmitting to Receiver in STC Mode Explanation of Dual Transmitter to RDMS Receiver Example The signals from the two transmitter RF connectors are transmitted simultaneously. The signals from the upper (Ch1) and lower (Ch2) antennas are received at the ground antenna(s) providing input to the receiver.
Page 32: Figure 23: Outline Drawing, Timter™ Dual Transmitter, 07Ah Package, S-Band Female Mdm-15
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 23: Outline Drawing, TIMTER™ Dual Transmitter, 07AH Package, S-band Female MDM-15 Quasonix, Inc.
Page 33: Figure 24: Outline Drawing, Timter™ Dual Transmitter, 07An Package, S-Band Male Mdm-15
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 24: Outline Drawing, TIMTER™ Dual Transmitter, 07AN Package, S-band Male MDM-15 Quasonix, Inc.
Page 34: Side By Side Dual Transmitter
Side By Side Dual Transmitter The 24.0 cubic inch TIMTER™ Dual Transmitter is designed to be mounted by eight (8) 2 1/4 inch screws through the holes in the four corners and in the center, as depicted in Figure 26. Your mounting requirements may be different.
Page 35: Figure 26: Outline Drawing, Timter™ Dual Transmitter, 24Aa Package, Male Mdm-15
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 26: Outline Drawing, TIMTER™ Dual Transmitter, 24AA Package, Male MDM-15 Quasonix, Inc.
Page 36: Thermal
Quasonix offers several types of integrated and add-on heat sinks (refer to Section 2). Please contact Quasonix for heat sink recommendations for your particular TIMTER™ transmitter.
Page 37: Figure 27: Mdm-15 Female Pin Numbering, Rs-422 Interface - 07Ah Package
Figure 27: MDM-15 Female Pin Numbering, RS-422 Interface – 07AH Package Figure 28: MDM-15 Male Pin Numbering, TTL Interface – 09AM Package The pin assignments can change, depending on the options selected. A variety of pinouts are available with the 09AM package. Consult Quasonix for details. Quasonix, Inc.
Page 38: Figure 29: Baseband Signal Timing
TIMTER™ Multi-mode Dual Telemetry Transmitter The data is sampled on the falling edge of the clock, as shown in Figure 29. Figure 29: Baseband Signal Timing Quasonix, Inc.
Page 39: Operating Instructions
(logical 0), the transmitter enters the low power mode. 4.2 TIMTER™ Serial Control Protocol When in Serial Control (Terminal) mode, the TIMTER™ is controlled via a simple three-wire serial interface (transmit, receive, and ground). The serial port configuration is as follows: •...
Page 40: Figure 30: Timter™ Welcome Message
SOQPSK>BB clock rate out of limits (clk = 0 kHz) SOQPSK> Figure 30: TIMTER™ Welcome Message Note: The standard Dual Transmitter software, displays the current mode as shown in Figure 30. In this example, SOQPSK>. If the Dual Transmitter has the CP07 option, the current channel displays rather than the mode, such as 2>...
Page 41: Table 12: Standard And Optional User Commands
-ID option available on the unit. Note: All user commands do not apply to all transmitters. Command availability varies depending on the options ordered and any project specific customization applied. Questions? Please call Quasonix for assistance. Table 12: Standard and Optional User Commands...
Page 42 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Active Channel Right square bracket key retunes Standard Frequency Step the transmitter to the next higher active channel frequency, as determined by the frequency step...
Page 43 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Attenuator This is a read only command; Use Standard Control the VP command (if the option is enabled) to change the output power. Uses currently selected channel...
Page 44 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Bit Rate Used when the Clock Free (CF) BR 5 option is specified and internal transmitter clock is in use Report or set the hard bit rate or...
Page 45 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Channel Delay Report or set the channel delay STC mode for the currently active channel(s) Valid range is 0 to 5000 in nanoseconds. Currently ONLY useful with STC...
Page 46 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Clock Generator Report or set the clock generator CG 0 Source Select output source Examples: Report the clock free state CG 0 Clock Gen output Off...
Page 47 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Clock Polarity Report or set clock polarity Standard CP A Examples: Display the current clock polarity CP 0 Set clock polarity to normal (NOT inverted)
Page 48 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default CTRL Machine Control This is a read only command; Standard Registers Displays machine control registers in the format CTRL gens reg value gens = 1, 2, or 3 for channel 1, 2,...
Page 49 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Differential Report or set differential encoding Standard DE 1 Encoding for the SOQPSK-TG or other PSK mode (typically disabled for all other modes) Currently no independent channel operation;...
Page 50 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Display Machine This is a read only command; Standard Data Input Displays the machine data input Registers registers as one or more of two...
Page 51 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default DOUT Machine DOUT This is a read only command; Registers Displays machine DOUT registers in the format DOUT chan R value Chan is one or more of two (2) dout blocks specified by one hex character;...
Page 52 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Machine This is a read only command; Encoder Displays machine encoder Registers registers in the format ENC blk R value Blk is one or more of four (4) blocks specified by one hex character;...
Page 53 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Frequency If no argument is passed, it Standard reports the frequency. If an 1436.5 argument is passed, it sets the frequency. The argument specifies the frequency in MHz. If the command is entered with a ‘?’, then the allowed frequency...
Page 54 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Heartbeat Controls the heartbeat LEDs on the board; the LEDs function based on user selection Examples: Displays current state HB 1 LEDs Off HB 2...
Page 55 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Internal Clock Report or set the internal clock Standard IC 5 Rate rate This rate is used if the clock source is set to internal (CS 1). It should not be confused with “BR”,...
Page 56 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Internal Data Report or set the internal data Standard ID PN15 pattern This setting is used if the Clock and Data Source is set to internal (CS 1).
Page 57 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Information INF does a large information Standard Dump dump providing the results of the following commands: SN, VE A, RFS, SS, ZZ, ZF, ZS, ZCP, ZC, ZR, ZY, SCP, SY, etc.
Page 58 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default LDPC Encoding Enable, disable, or show the LD, LD6 LD 0 Enable current state of the Forward Error Correction (FEC) / Low Density *PSK...
Page 59 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Low Power Report or set low power level LP 0 when dual power option enabled on unit Valid range is 0-31 in 1 dB steps or 0-31.5 in 0.5 dB steps,...
Page 60 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Modes Allowed Reports the modes (modulations) Standard enabled on the transmitter, as determined by the part number Example: Show available modes - PCMFM - SOQPSK...
Page 61 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Modulation Report or set modulation setting MO 13 MO 0 or requires the first Mode 6, Carrier only, is present one the on every transmitter...
Page 62 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Machine This is a read only command; Modulator Displays Machine Modulator Registers Registers in the format MOD blk R value Blk is one or more of four (4) blocks specified by one hex character;...
Page 63 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Memory Read Displays memory as bytes and ASCII in the format MR address len Address = Optional valid SRAM starting address to display Len = Number of bytes to read...
Page 64 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Machine Noise This is a read only command; Generator Displays machine noise registers Displays machine noise registers Overtemperature Enables or disables Standard OC 1...
Page 65 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default PSK Filter Select Sets or shows the current PSK All *PSK PF 255 filter selection This is valid if the (PF 10 if PSK mode option is enabled and...
Page 66 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Query All Displays common device settings Standard in one compact display Display is a subset of SS or ST Internal Clock Sets the internal Q clock rate, in...
Page 67 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Recall Load a saved configuration into Standard Configuration the active configuration if the (or PP or configuration number entered is valid If the selected configuration has...
Page 68 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default RFOR RF Off on Specifies whether RF should be Standard RFOR 1 Retune turned off during a frequency retune (even if the new frequency...
Page 69 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default RF On/Off Pin Set or show the polarity of the RF Standard RZ 1 Polarity On/Off pin, which is pulled high internally to 3.3 VDC...
Page 70 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Machine Signal This is a Read Only command; Generator Displays machine signal Registers generator registers in the format SG blk R value Blk is one or more of four (4) blocks specified by one hex character;...
Page 71 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Serial Port Displays the serial port buffer Standard Buffers addresses and current pointers Example: SPB ? Show Settings Displays most of the common Standard...
Page 72 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Frequency Sweeps the transmitter frequency Standard Sweep between provided limits, with provided step size, at a fixed rate Enables independent channel sweep and start/stop (individually or together);...
Page 73 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Synthesizer RF Sets or shows the current state of Standard Out Control the synthesizer RF output control in the CTRL register of the machine in the format...
Page 74 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Set Up System Selects values to be reported by Status Reporting the SY command; the argument is a string of characters that specifies, in order, the values...
Page 75 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default TXBR Dual Transmitter Temporarily changes system Standard Baud Rate baud rate; for odd baud rates (non-standard) accuracy may vary Valid range is about 300 to 230, 400 baud –...
Page 76 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Variable Power Report or set variable power level VP 0 Typically the transmitter defaults to full power (VP Max); Valid range is 0-31 in 1 dB steps or 0-31.5 in 0.5 dB steps,...
Page 77 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default XFRM Machine This is a read only command; Transformer Displays the machine transformer Registers registers in the format XFRM blk R value Blk is one or more of four (4) blocks specified by one hex character;...
Page 78 TIMTER™ Multi-mode Dual Telemetry Transmitter Mnemonic Name Description Option (s) Setting Factory Command Required Saved? Default Show All Displays all options (like ZZ) Options except ZF shows all options whether enabled or not Show Machine Displays all of the machine State registers for a specified block;...
Page 79: Additional Command Set Details
3 DG2 Internal clock always 4 DG3 Internal clock always 5 Ext Clock input always 6 Ext Data input always 7 Ch1 Clock free clock 8 Ch2 Clock free clock <When independent modes have been implemented by Quasonix> Quasonix, Inc.
Page 80: Internal Clock Rate – Ic
TIMTER™ Multi-mode Dual Telemetry Transmitter 9 Manual control with NIOS TX DI pin in CMNIO '?' displays a syntax listing Examples: CG 5 // Set CG output to external clock always CG ? // Display the choices Internal Clock Rate – IC 4.2.3.1.3...
Page 81 4.2.3.1.5 The LHS command sets the header to use with Low Density Parity Check (LDPC) coding on a transmitter. Valid settings are 0 through 6, however code 6 is for Quasonix internal use only. 0 - SOQPSK/LDPC code 0 0 // LDPC k=4096 r=1/2...
Page 82: System Status Command – Sy
TIMTER™ Multi-mode Dual Telemetry Transmitter Mode – MO 4.2.3.1.6 When the mode is changed to 13 (STC) on a Dual Transmitter, channel 1 settings are automatically copied to channel 2 so they match. System Status Command – SY 4.2.3.1.7 The SY command is defined as follows.
Page 83: Rf Output Notes
Examples are auto-carrier (-AC option), clock free (-CF option) and recall-holdoff (-RH option). If the procedure below does not demonstrate the working RF output on the transmitter, please contact Quasonix technical support for further help in resolving the issue.
Page 84 RZ 0 sets the transmitter output to turn ON when the RF On/Off pin is low. Is the output present now? If so, go on to Part 2 below. If not, call Quasonix for technical support. Part 2: Verifying modulation output on frequency with internal data Turn on the transmitter.
Page 85 TIMTER™ Multi-mode Dual Telemetry Transmitter • If not, call Quasonix for technical support. Part 3: Verifying modulation output on frequency with user data Turn on the transmitter. Set the mode to one of the available modes on your unit. For example, MO 0 for PCM/FM, MO 1 for SOQPSK, etc.
Page 86 TIMTER™ Multi-mode Dual Telemetry Transmitter If you are still having difficulties at this point, then contact Quasonix technical support. Quasonix Technical Support (1-513-942-1287) or email (support@quasonix.com) When calling technical support, it will speed things up if you have the following information handy: •...
Page 87: Table 13: Dc Input Current At Standard Input Voltage
The minimum RF output power is 10 W with the RF load VSWR < 2:1 at all phase angles from 0 to 360 degrees. 6.2 Electrical Current The electrical current drain for TIMTER™ transmitters is provided in Table 13. Table 13: DC Input Current at Standard Input Voltage...
Page 88: Table 15: Timter™ Emi Compliance
This includes electromagnetic interference and compatibility (EMI/EMC) requirements. More specifically, all Quasonix transmitters in the TIMTER™ family (2 cubic inches and above) have been designed to comply with the following requirements of MIL-STD-461G (and MIL-STD-461E and -461F, when those now-obsolete standards have been applied): Table 15: TIMTER™...
Page 89 TIMTER™ Multi-mode Dual Telemetry Transmitter Band ID Band Minimum Maximum Default Freq Tuning Code Freq Freq Steps Power C “Low” 4400.0 MHz 4950.0 MHz 4620.0 MHz 0.5 MHz 10 W C (with Mid C) 4400.0 MHz 4950.0 MHz 4620.0 MHz 0.5 MHz...
Page 90: Table 17: Transmitter Ber Specifications With Quasonix Demodulator
The frequency error is less than ±20 ppm over all combinations of temperature, voltage, and aging (up to five years). 6.6 Bit Error Rate The transmitter meets the following BER limits when tested with the Quasonix’ multi-mode, multi-symbol trellis demodulator.
Page 91: Table 18: K And M Values Per Waveform
TIMTER™ Multi-mode Dual Telemetry Transmitter Maximum Eb/N0 (dB) PCM/FM, Tier 0 SOQPSK-TG, Tier I MULTI-h CPM, Tier II 10-5 12.5 14.3 10-6 10.5 14.0 15.3 6.7 Modulated RF Power Spectrum The transmitter’s modulated spectrum complies with the IRIG-106 PSD mask: M (dBc) = Max ( {K –...
Page 92: Figure 31: Pcm/Fm (Tier 0) Power Spectral Density With Mask
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 31: PCM/FM (Tier 0) Power Spectral Density with Mask Figure 32: SOQPSK-TG (Tier I) Power Spectral Density with Mask Quasonix, Inc.
Page 93: Figure 33: Multi-H Cpm (Tier Ii) Power Spectral Density With Mask
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 33: MULTI-h CPM (Tier II) Power Spectral Density with Mask 6.8 Phase Noise Power Spectrum TIMTER™ phase noise limits are shown in Figure 34. Quasonix, Inc.
Page 94: Vibration And Shock
6.9 Baseplate Temperature TIMTER™ is designed for efficient heat transfer between internal heat producing sources and the baseplate. The 5 W, and 10 W Dual TIMTER™ versions are rated for operation with baseplate temperatures ranging from -40°C to +85 °C.
Page 95: Figure 35: Vibration / Shock Testing System
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 35: Vibration / Shock Testing System Figure 36: TIMTER™ Mounted for Z-axis Testing Quasonix, Inc.
Page 96: Vibration Testing
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 37: TIMTER™ Mounted for X-axis Testing Figure 38: TIMTER™ Mounted for Y-axis Testing 6.10.1 Vibration Testing Each transmitter is subjected to the random vibration spectrum depicted in Figure 39 and Table 19 prior to shipment.
Page 97: Figure 40: Z-Axis Vibration Spectrum
TIMTER™ Multi-mode Dual Telemetry Transmitter Table 19: Random Vibration Spectrum Breakpoints Frequency (Hz) PSD (g2/Hz) 0.04 0.17 0.17 2000 G (RMS) = 19.6 During flight-qualification testing, the unit under test (UUT) was shaken for 30 minutes in each axis. The results are shown in Figure 40, Figure 41, and Figure 42.
Page 98: Figure 41: Y-Axis Vibration Spectrum
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 41: Y-axis Vibration Spectrum Figure 42: X-axis Vibration Spectrum Quasonix, Inc.
Page 99: Shock Testing
TIMTER™ Multi-mode Dual Telemetry Transmitter 6.10.2 Shock Testing In addition to vibration testing, the UUT was subjected to shock pulses, as follows: • Type: Half-sine • Level: 60 g • Duration: 5 milliseconds Application: Three (3) shocks in each direction of the three (3) orthogonal axes both positive and negative, for 18...
Page 100: Figure 44: Shock Pulse, Z-Axis Negative
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 44: Shock Pulse, Z-axis Negative Figure 45: Shock Pulse, Y-axis Positive Quasonix, Inc.
Page 101: Figure 46: Shock Pulse, Y-Axis Negative
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 46: Shock Pulse, Y-axis Negative Figure 47: Shock Pulse, X-axis Positive Quasonix, Inc.
Page 102: Figure 48: Shock Pulse, X-Axis Negative
TIMTER™ Multi-mode Dual Telemetry Transmitter Figure 48: Shock Pulse, X-axis Negative Quasonix, Inc.
Page 103: Maintenance Instructions
TIMTER™ Multi-mode Dual Telemetry Transmitter 7 Maintenance Instructions The TIMTER™ requires no regular maintenance, and there are no user-serviceable parts inside. Quasonix, Inc.
Page 104: Product Warranty
Quasonix. Quasonix shall not be liable for a breach of the warranty set forth in this Limited Warranty unless: (i) the customer gives written notice of the defect, reasonably described, to Quasonix’s Contracts Administrator within thirty (30) days of the time when customer discovers or ought to have discovered the defect and obtains a Return Materials Authorizations (“RMA”) number;...
Page 105: Extended Warranties
Products; (c) as a result of a failure to follow the instructions in the Operations & Maintenance Manual (d) by the use of parts not manufactured or sold by Quasonix; or (e) by modification or service by anyone other than (i) Quasonix, (ii) an Quasonix authorized service provider, or (iii) your own installation of end-user replaceable Quasonix or Quasonix approved parts if available for the Products in the servicing country.
Page 106: Technical Support And Rma Requests
Telemetry Transmitter 9 Technical Support and RMA Requests In the event of a product issue, customers should contact Quasonix via phone (1-513-942-1287) or e-mail (support@quasonix.com) to seek technical support. If the Quasonix representative determines that the product issue must be addressed at Quasonix, a returned materials authorization (RMA) number will be provided for return shipment.
Page 107: Appendix A - Preset Option
TIMTER™ Multi-mode Dual Telemetry Transmitter 10 Appendix A – Preset Option The preset feature operates similar to the stored presets in a car radio. The presence of this option is designated by the characters “PS” and a number (2, 4, 8 or 16) appended to the standard model number. Transmitters with the...
Page 108: Appendix B - Bench Set Up For Stc And Ldpc
Legacy Dual Transmitter, refer to the Legacy Dual Transmitter user manual. Figure 49: Quasonix Dual Transmitter Configuring STC and LDPC in a lab or bench set up requires emulating a field set up, some aspects of which may not be intuitively obvious.
Page 109: Compact Receiver
TIMTER™ Multi-mode Dual Telemetry Transmitter 11.1.1 Compact Receiver The Compact receiver normally requires only a single direct connection of the RF input from a transmitter, as shown in Figure 51. Figure 51: Example Bench RF Configuration for Single Transmitter and Compact Receiver For STC, the Compact receiver still requires only a single RF input but it must be the combined RF outputs from Channel 1 and Channel 2 of the dual transmitter, as shown in Figure 52.
Page 110: Figure 49: Quasonix Dual Transmitter
TIMTER™ Multi-mode Dual Telemetry Transmitter Quasonix Transmitter Quasonix Rack Mount RDMS Receiver RF Signal Split into CH1 and CH2 Single RF Signal from Transmitter Sent to Splitter Figure 53: Example Bench RF Configuration for Single Transmitter and Rack Mount Receiver...
Page 111: Transmitter Commands
LDPC, SOQPSK with STC, and SOQPSK with LDPC and STC. In addition to establishing the correct connection(s) to a receiver, proper configuration requires setting up the transmitter with a small number of commands. Figure 56: Quasonix Dual Transmitter When running STC on a Dual Transmitter, both channels must be set up identically.
Page 112: Appendix C - Acronym List
TIMTER™ Multi-mode Dual Telemetry Transmitter 12 Appendix C – Acronym List Acronym Description Amperes (amps) Automatic Carrier Wave option Amplitude Modulation AQPSK Variant of Quadrature Phase Shift Keying ARTM Advanced Range Telemetry AUQPSK Variant of Quadrature Phase Shift Keying Bit Error Rate...
Page 113 TIMTER™ Multi-mode Dual Telemetry Transmitter Acronym Description Low Bit Rate Lower S-band Modulations Allowed option mbps Megabits per second MHCPM multi-h Continuous Phase Modulation Megahertz Modulation mwatt Megawatt (connector type) Threaded RF connector OQPSK Offset Quadrature Phase Shift Keying PCMFM...
Page 114 TIMTER™ Multi-mode Dual Telemetry Transmitter Acronym Description Space-Time Coding SV or PS Preset Save option TIMTER Tier I Missile Test Transmitter Tracking Loop Transistor Transistor Logic User Datagram Protocol UQPSK Unbalanced Quadrature Phase Shift Keying Upper S-band Universal Serial Bus...
