Internal SCSI Device Cables
Systems that have an internal SCSI device also come with
either a six-connector 68-pin SCSI device cable or a four-
connector 50-pin SCSI device cable. The cables can connect
internal SCSI devices to the 68-pin and/or the 50-pin internal
connectors on the system board. The unused connectors on
the cable are terminated.

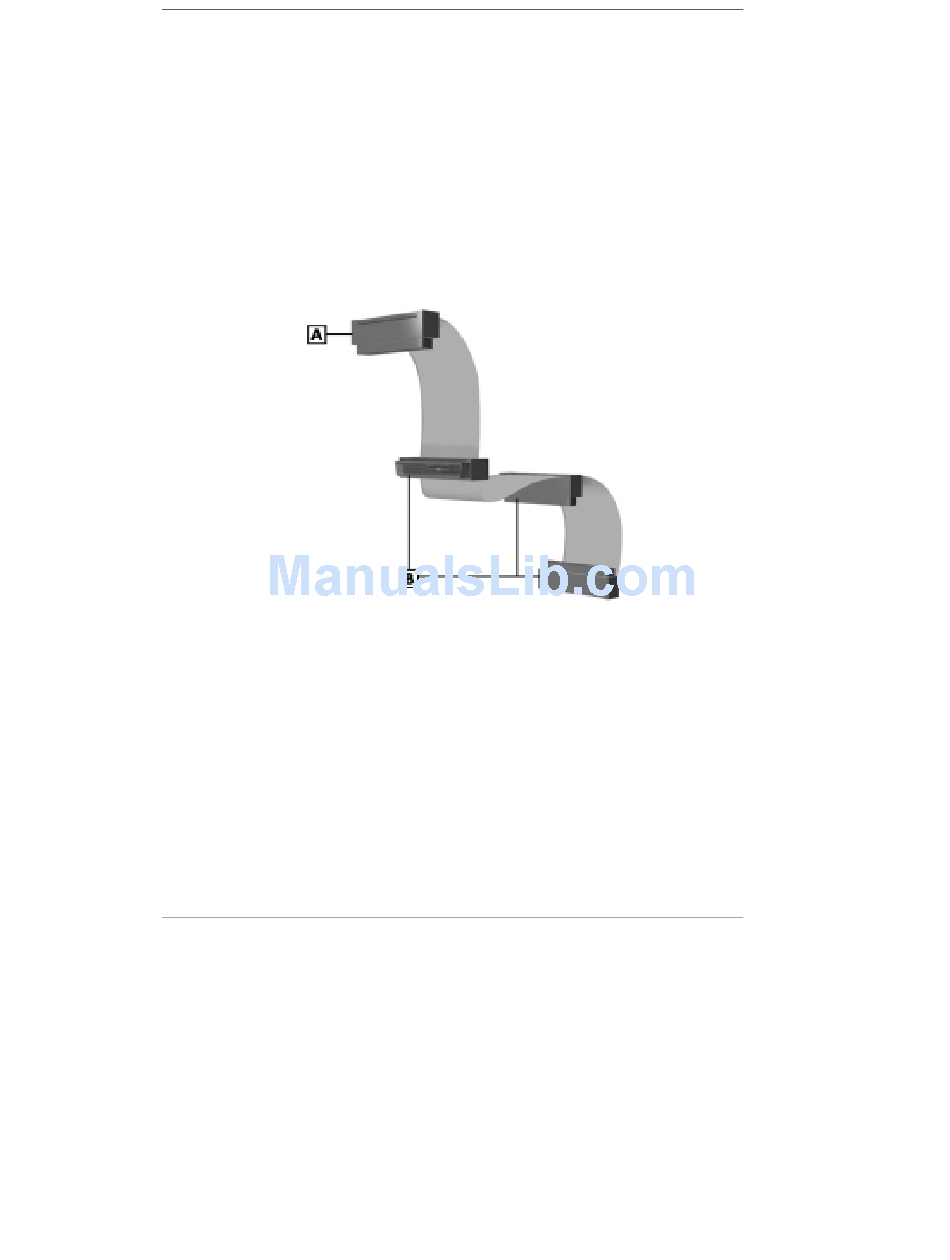

A – Connects to System Board
B – Connect to SCSI Devices
4-48 Installing Options
SCSI device cable
