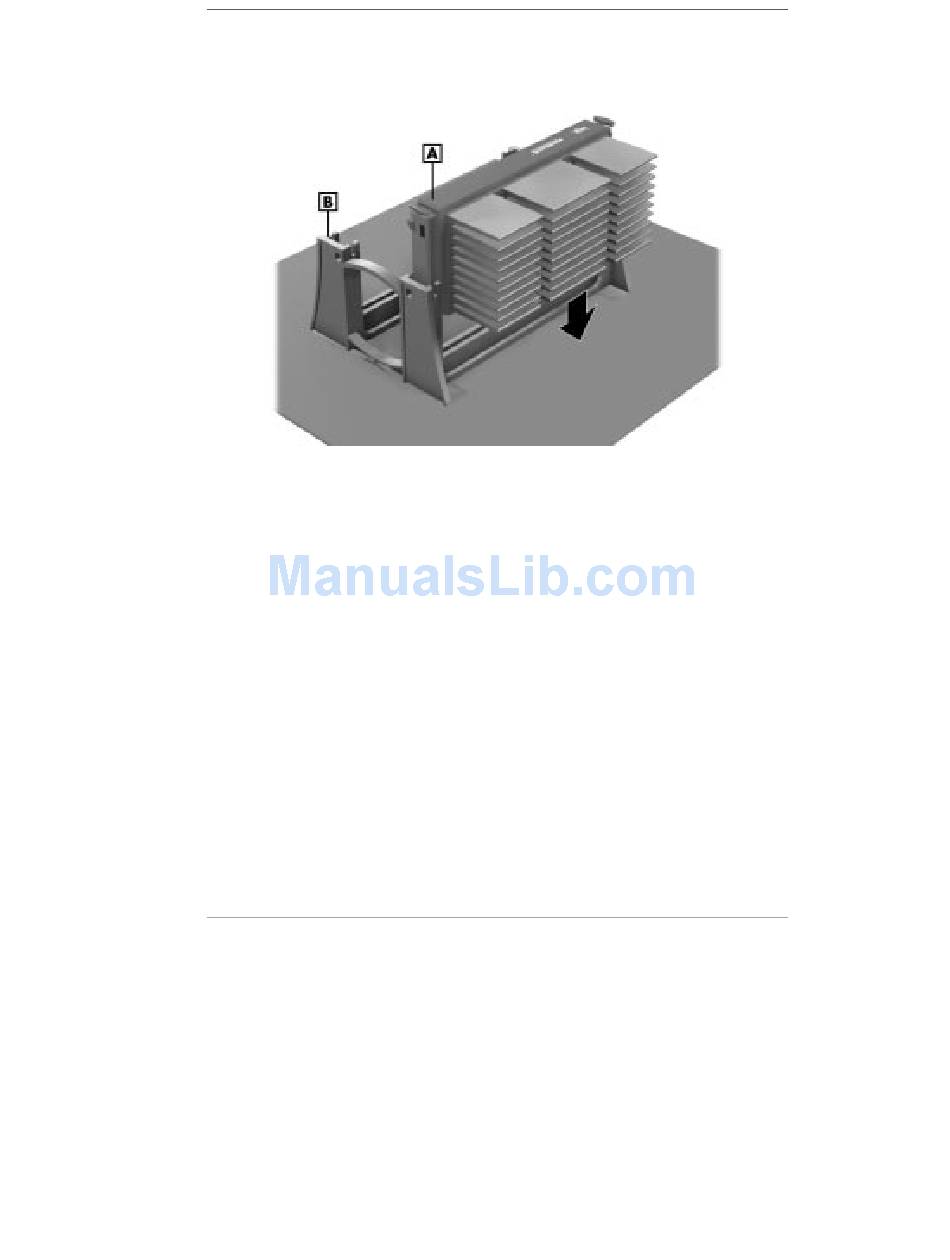

Inserting the processor in the retention mechanism
A – CPU/Heatsink B – Retention Mechanism
9. To lock in the processor, push the locking tabs outward
until they click into place in the retention mechanism. The
latches must be secured for proper electrical connection
of the processor.
Installing Options 4-31
