3. Pull the termination board out of the processor socket.

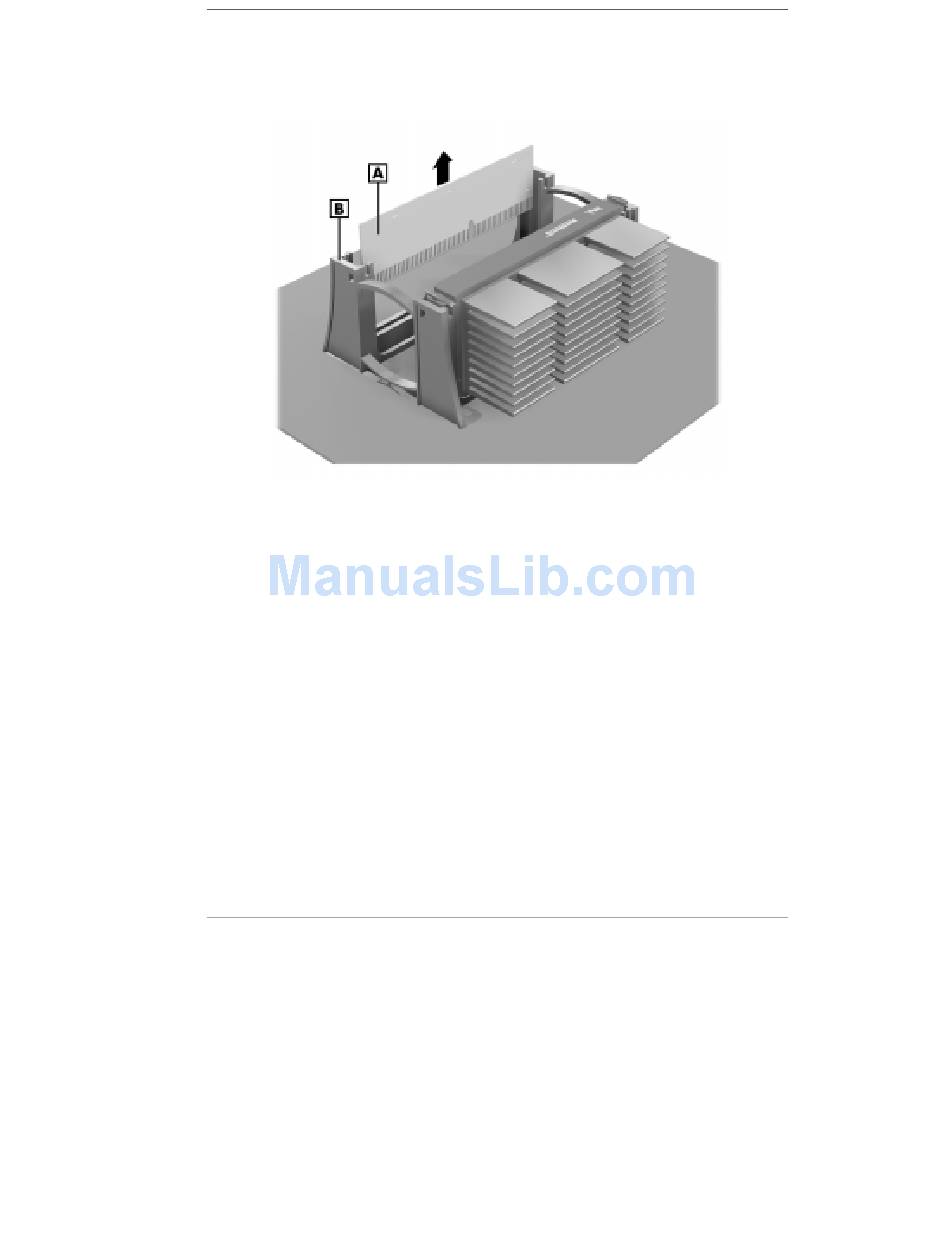

Removing the termination board
A – Termination Board B – Retention Mechanism
4. Store the termination board and bracket appropriately.

Installing a Termination Board

If you remove a second processor from your system, you
must install a termination board in the empty secondary
Slot 1 connector.
Install a termination board by following these steps.
1. Remove the processor from the secondary Slot 1
connector (see "Removing a Processor").
2. Line up the termination board with the retention
mechanism. The notch on the board should line up with
the key in the secondary Slot 1 connector.
Installing Options 4-25
