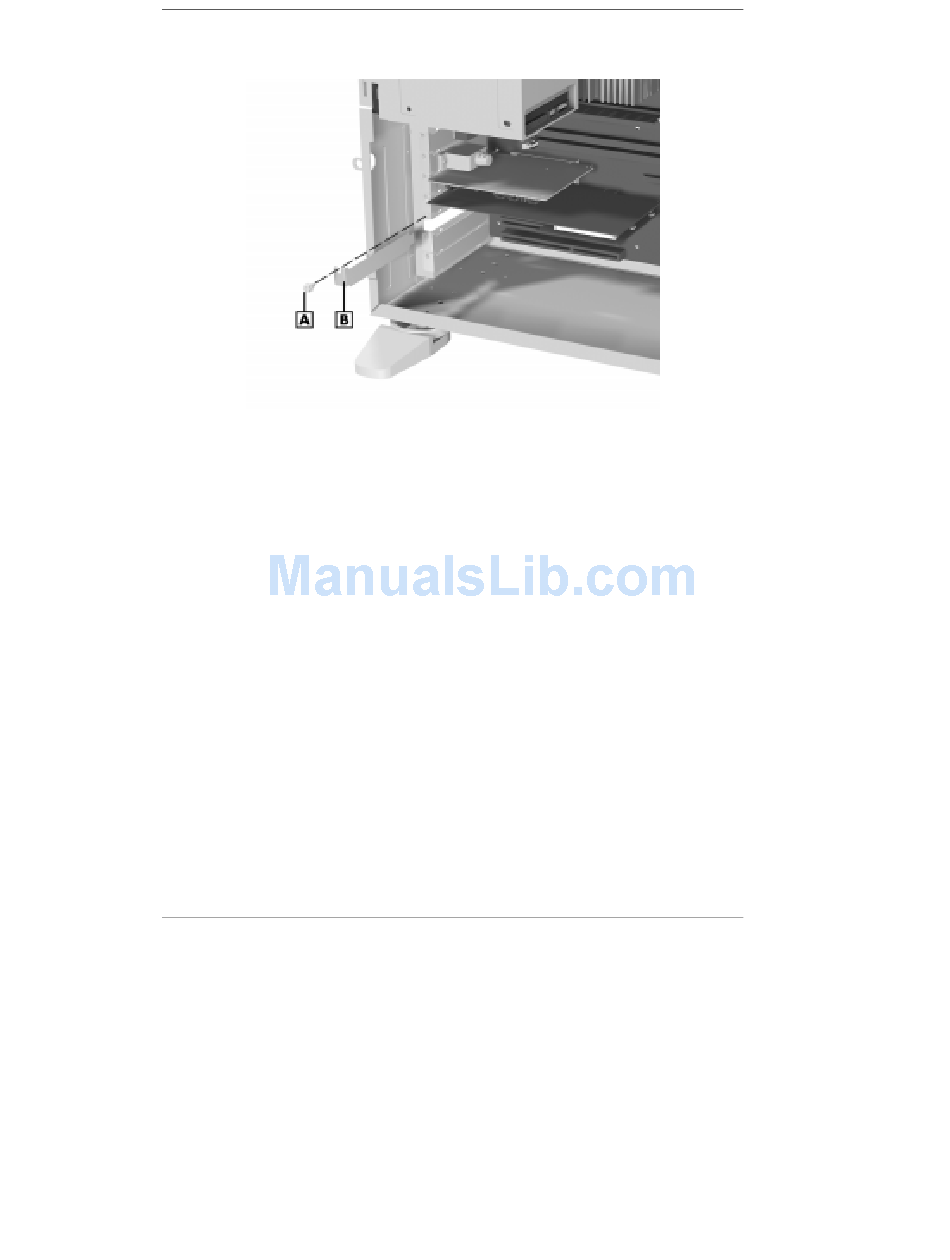

A – Screw B – Slot Cover
5. Holding the board by its edges or its bracket, insert the
board into the expansion slot.
6. Press the board firmly into the expansion slot connector
on the system board.
7. Use the slot cover screw removed earlier to secure the
expansion board.
4-36 Installing Options
Removing a slot cover
