3.10 Expansion Cards
The CSE-HS119-R000NP2 chassis includes two riser cards to support the use of expansion
(add-on) cards that provide PCIe capabilities.
Riser Card
Right (from rear)
Left (from rear)
Full-height = 4.2", Low-profile = 2.5", Full-length = 10.5", Half-length = 6.6"
The system includes two riser cards to support the use of expansion (add-on) cards. Before
following the procedure below to install expansion cards, first turn off and remove power from
the system as described in
Installing Expansion Cards
1. Open any clips next to the slots and remove the PCI shield.
2. Install the riser card to the riser bracket, if necessary.
3. Install one or two expansion cards into the riser card. See information on M.2 SSD
installation later in this chapter.
4. Insert the riser card bracket with the expansion cards into the chassis rear and connect
cables.
5. Close any opened clips to secure the riser card bracket.
SuperServer SYS-122H-TN: Maintenance and Component Installation

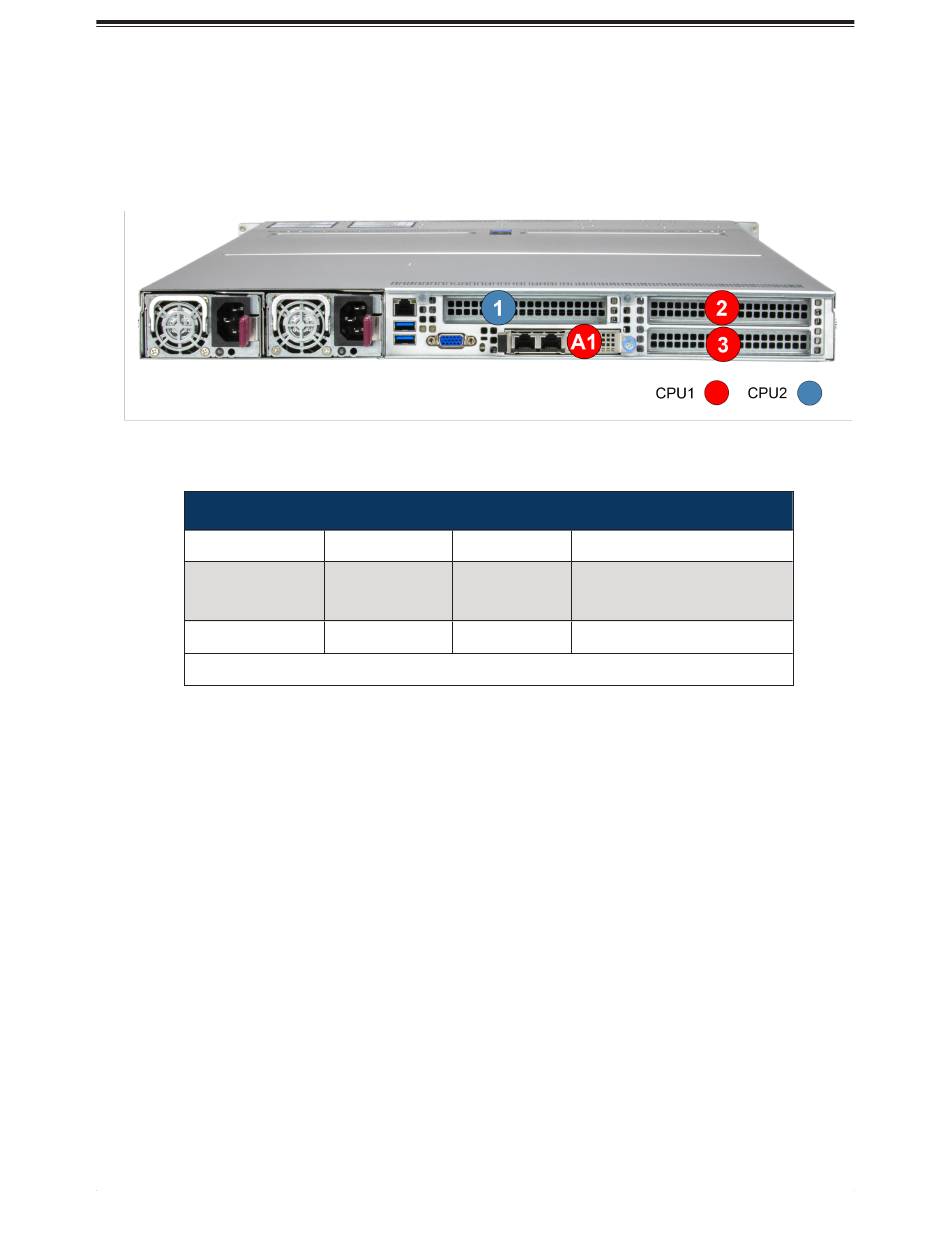

Figure 3-45. Expansion Card Chassis Slots
PCIe Slots per Riser Card
Part Number
2
RSC-H-66G5L
3
RSC-H-6G5L 1
"Removing Power" on page 46
83
Slot Description (all PCIe 5.0)
x16 FH, 10.5" L (CPU1)
x16 FH, 10.5" L (CPU2)
x16 FH, 6.6" L (CPU2)
then remove the top cover.
