4. With a T30 bit torque driver set to a force of 8.0 in-lbf (0.904 N-m), gradually tighten the
four screws to ensure even pressure. You can start with any screw, but make sure to
tighten the screws in a diagonal pattern.
Important: Do not use a force greater than 8.0 in-lbf (0.904 N-m). Exceeding this
force may over-torque the screw, causing damage to the processor, heatsink, and
screw.
5. Examine all corners to ensure that the PHM is firmly attached to the socket.
Figure 3-28. Install the PHM with a Torque Driver
Removing the Processor Heatsink Module
Before removing the processor heatsink module (PHM) from the motherboard, shut down the
system and then unplug the AC power cord from all power supplies.
SuperServer SYS-122H-TN: Maintenance and Component Installation

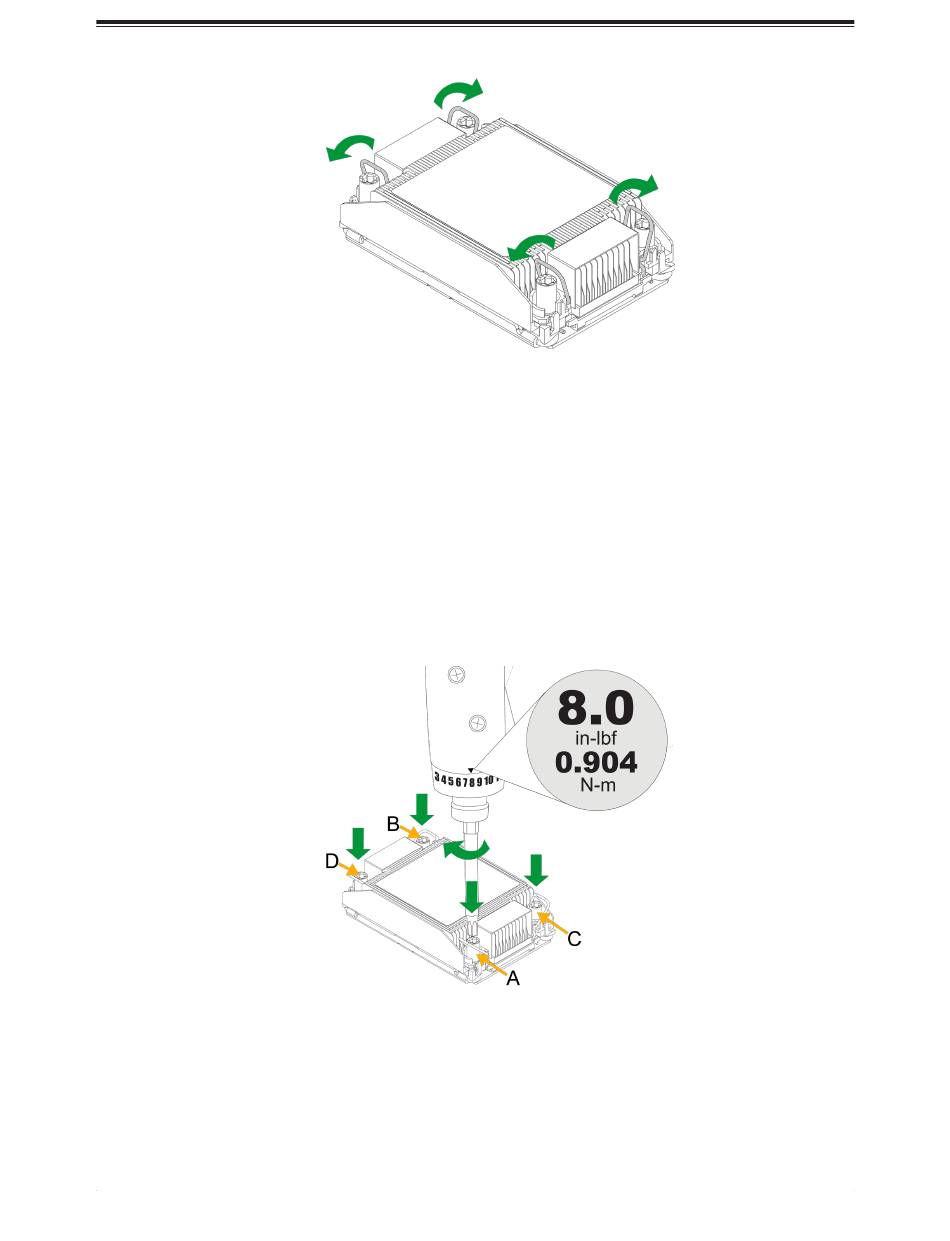

Figure 3-27. Latch the PHM
