SuperServer SYS-122H-TN: Introduction
1.3 System Architecture
This section covers the locations of the system's main components, a system block diagram,
and a motherboard layout with the connectors and jumpers called out.
Main Components

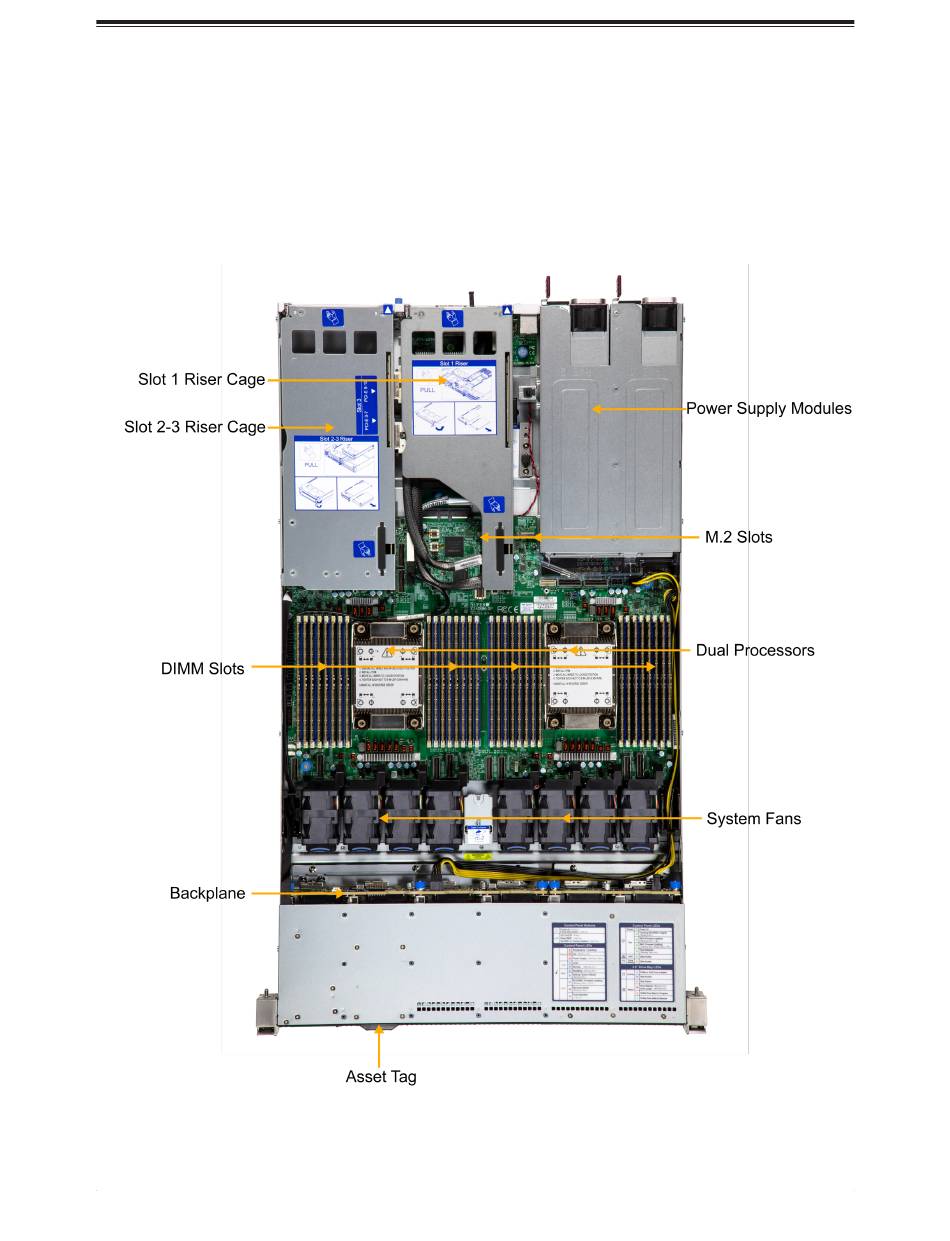

Figure 1-4. Top View
