Supermicro SuperServer SYS-122H-TN User Manual page 77

4. Insert the drive carrier into its bay, keeping the release button on the right. When the
carrier reaches the rear of the bay, the release handle will retract.
5. Push the handle in until it clicks into its locked position.
Hot-Swap for NVMe Drives
Supermicro servers support NVMe surprise hot-swap. For even better data security, NVMe
orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using
BMC.
Note: If you are using VROC, see the VROC appendix in this manual instead.
Ejecting a Drive
1. BMC > Server Health > NVMe SSD
2. Select Device, Group, and Slot, and click Eject. After ejecting, the drive Status LED
indicator turns green.
3. Remove the drive.
Note that Device and Group are categorized by the CPLD design architecture.
SuperServer SYS-122H-TN: Maintenance and Component Installation

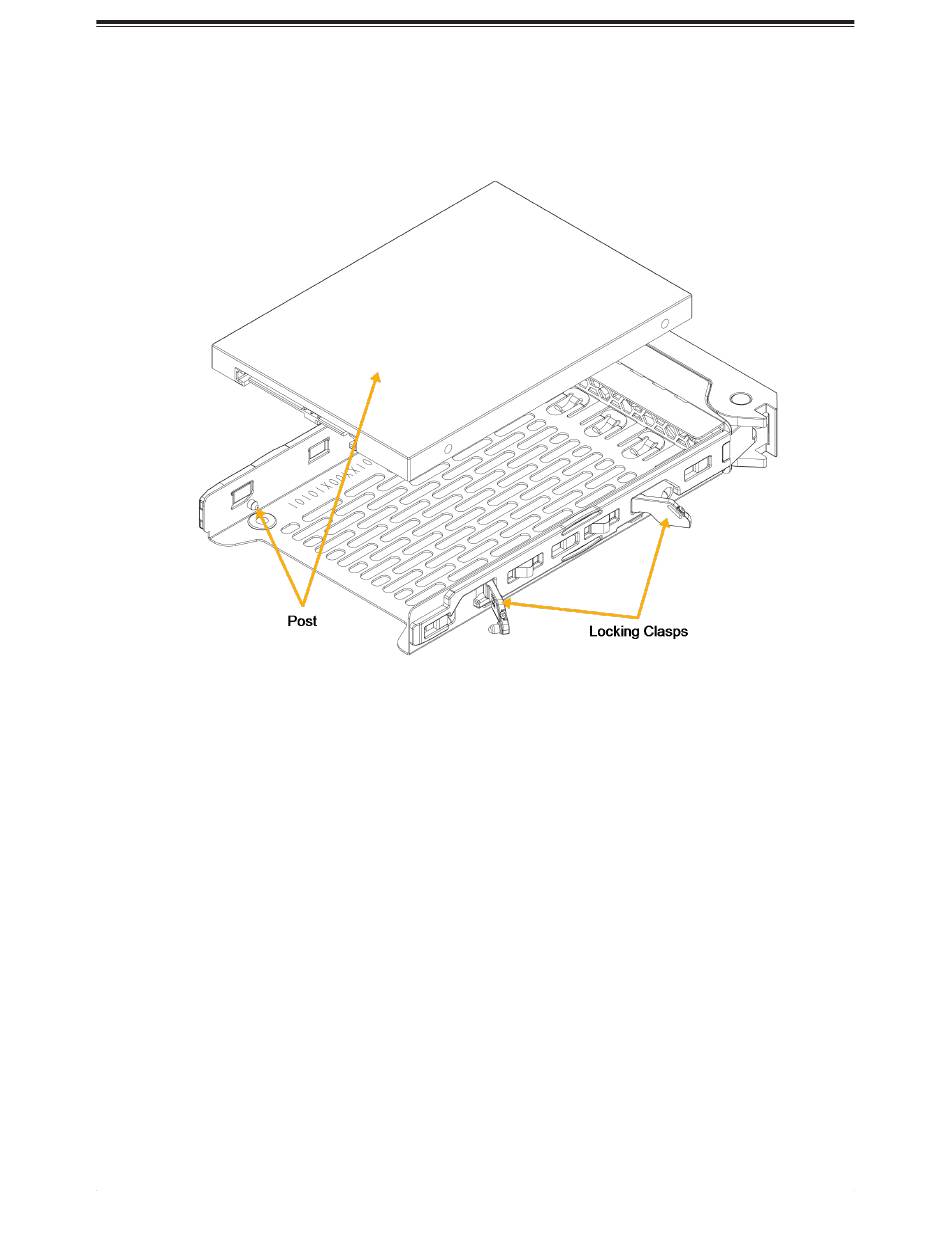

Figure 3-40. Installing a Drive into a Carrier
77
