SuperServer SYS-122H-TN: UEFI BIOS
8.2 Main Setup
The Main setup screen appears when the AMI BIOS Setup utility is first entered. To return to
the Main setup screen, select the Main tab at the top of the screen. The Main BIOS setup
screen is shown below.

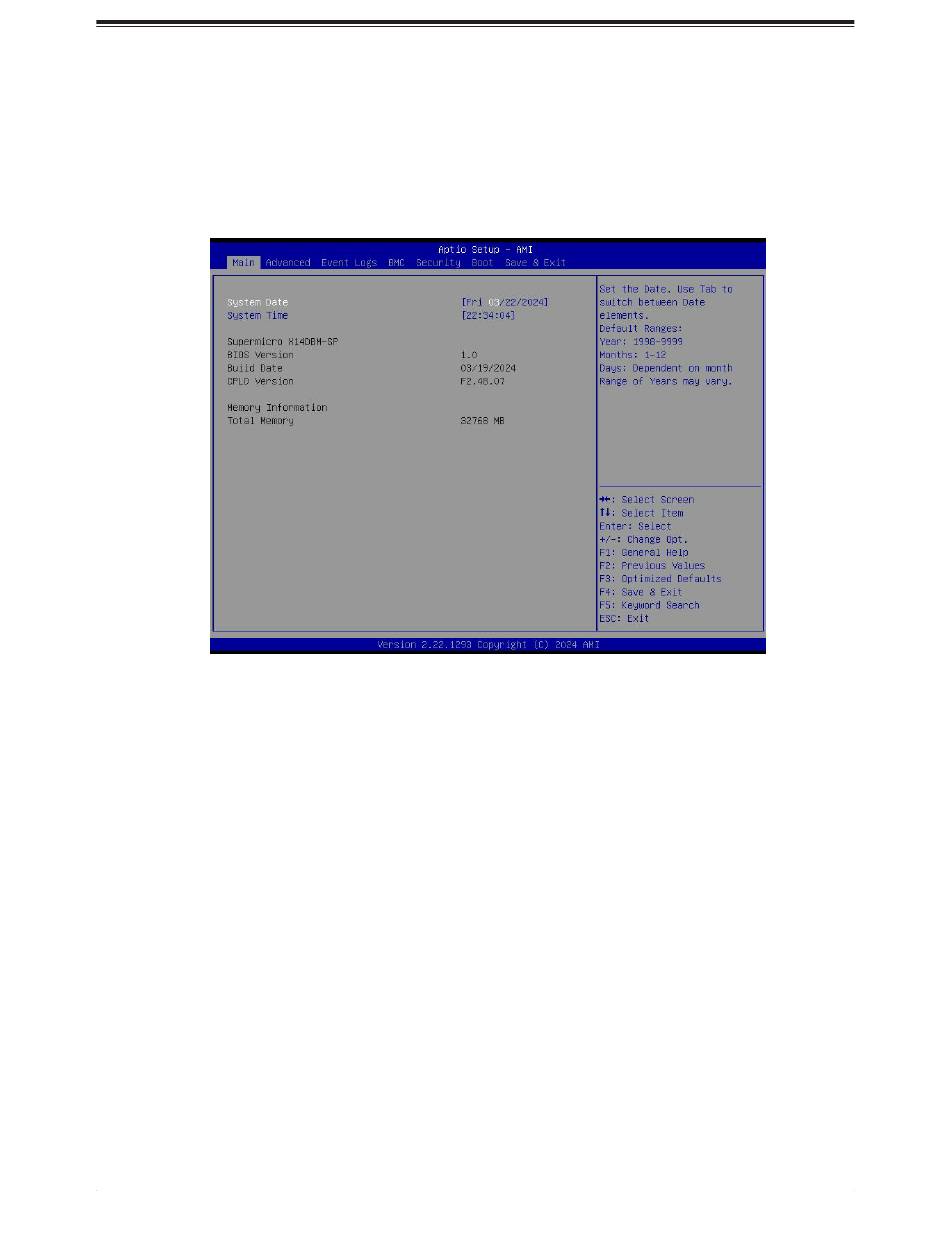

Figure 8-1. Main Setup Screen
System Date/System Time
Use the two features to change the system date and time. Highlight System Date or System
Time using the arrow keys. Enter new values using the keyboard. Press the <Tab> key or the
arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The
time is entered in HH:MM:SS format.
Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.
Supermicro X14DBM-SP
BIOS Version
This feature displays the version of the BIOS ROM used in the system.
Build Date
This feature displays the date when the version of the BIOS ROM used in the system was built.
