Supermicro SuperServer SYS-122H-TN User Manual page 18

Color, Status
Red, solid
Red, blinking at 1 Hz
Red, blinking at 0.25 Hz
Red, solid with Power LED blinking green
Blue and red, blinking at 10 Hz
Blue, solid
Blue, blinking at 1 Hz
Blue, blinking at 2 Hz
Blue, blinking at 4 Hz
Blue, blinking at 10 Hz with Power LED
blinking green
Rear View
The illustration below shows the features included on the rear of the SYS-122H-TN server. The
power supply modules include status LEDs.
Feature
Power Supplies
USB Ports
Information LED
An overheat condition has occurred.
Fan failure; check for an inoperative fan.
Power failure; check for an inoperative power supply.
Fault detected.
Recovery mode.
UID has been activated locally to locate the server in
a rack environment.
UID has been activated using the BMC to locate the
server in a rack environment.
BMC is resetting.
BMC is setting factory results.
BMC/BIOS firmware is updating.

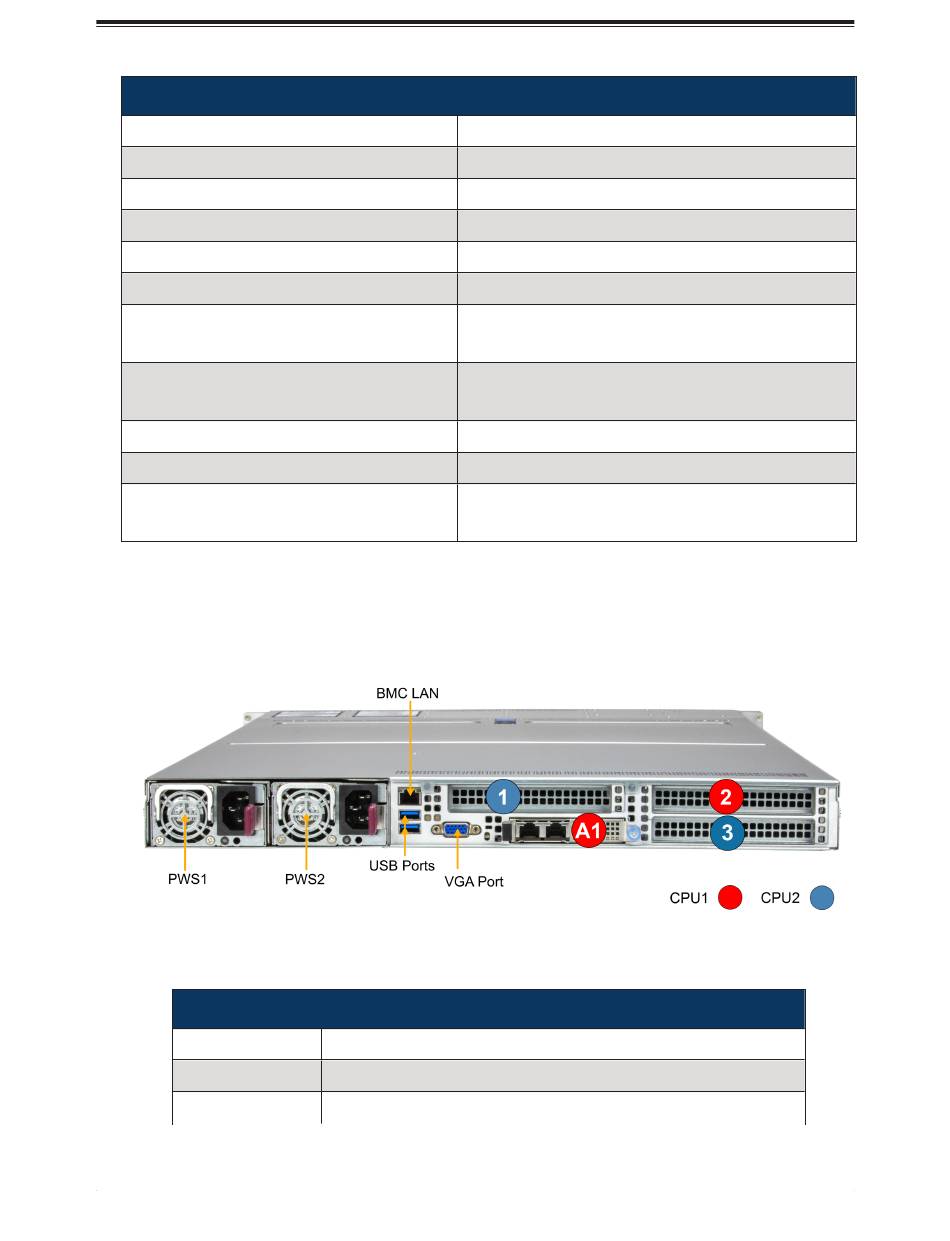

Figure 1-3. Rear View
System Features: Rear
Two power supply modules. PWS1 on the left, PWS2 on the right.
Two USB 3.0 ports
18
SuperServer SYS-122H-TN: Introduction
Description
Description
