SuperServer SYS-122H-TN: Motherboard Connections, Jumpers, and LEDs
JF1 on the X14DBM-SP motherboard contains header pins for various buttons and indicators
that are normally located on a control panel at the front of the chassis. These connectors are
designed specifically for use with Supermicro chassis. See the figure below for the descriptions
of the front control panel buttons and LED indicators.
For a detailed diagram of the X14DBM-SP motherboard, see the layout under
Quick Reference" on page
Power On and BMC/BIOS Status LED Button
The Power On and BMC/BIOS Status LED button is located on pin 1 of the front control panel
header located at JFP1 on the X14DBM-SP motherboard. Momentarily contacting pin 1 of
JFP1 will power on/off the system or display BMC/BIOS status.
For a detailed diagram of the X14DBM-SP motherboard, see the layout under
Quick Reference" on page
Green: Solid on
27.

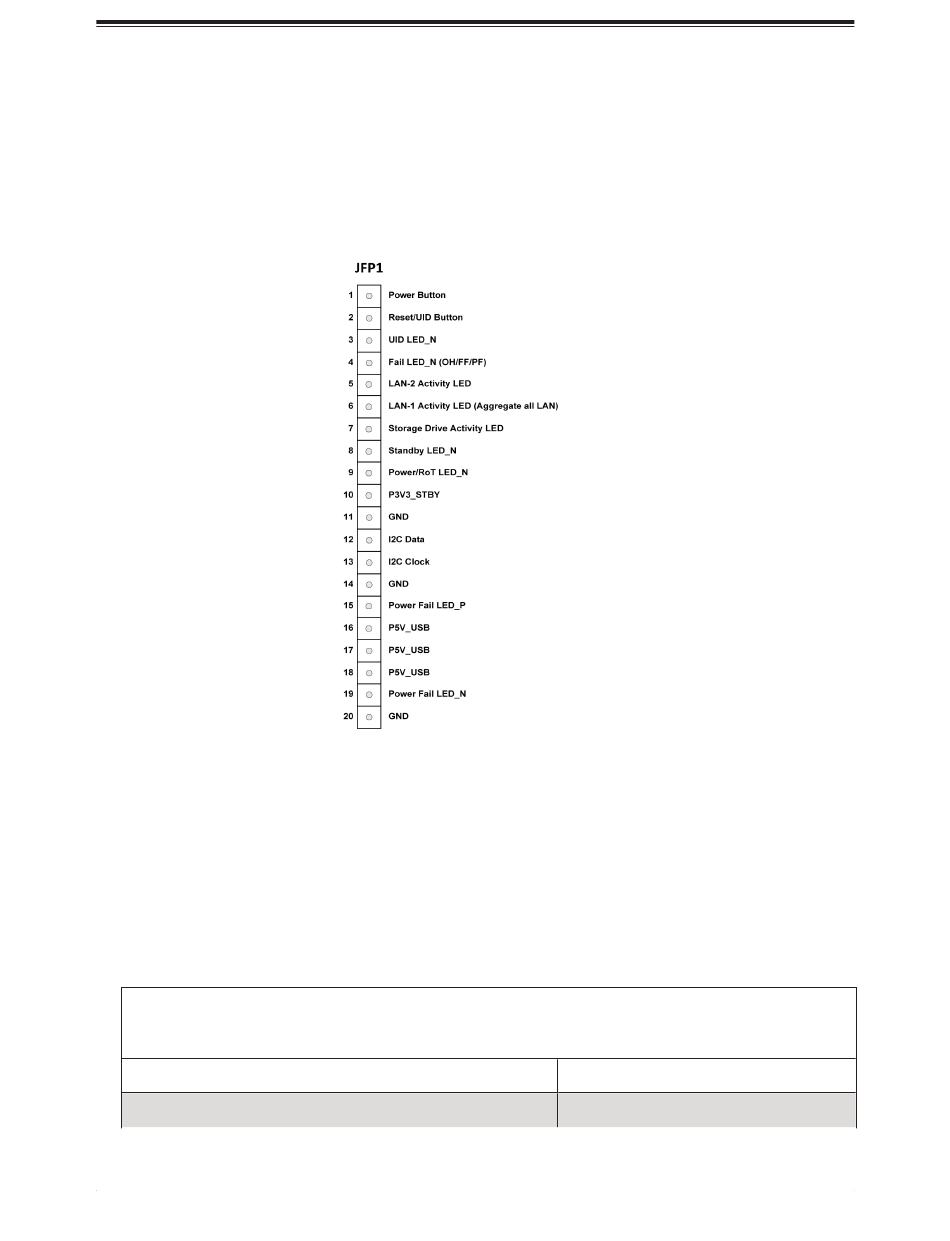

Figure 4-1. JFP1 Header Pins
27.
Power Button
BMC/BIOS Status LED Indicator
Status
103
Event
System power on
"Motherboard
"Motherboard
