3. Use the triangles as a guide to carefully align and place one end of the processor into the
latch marked A, and place the other end of processor into the latch marked B as shown
below.

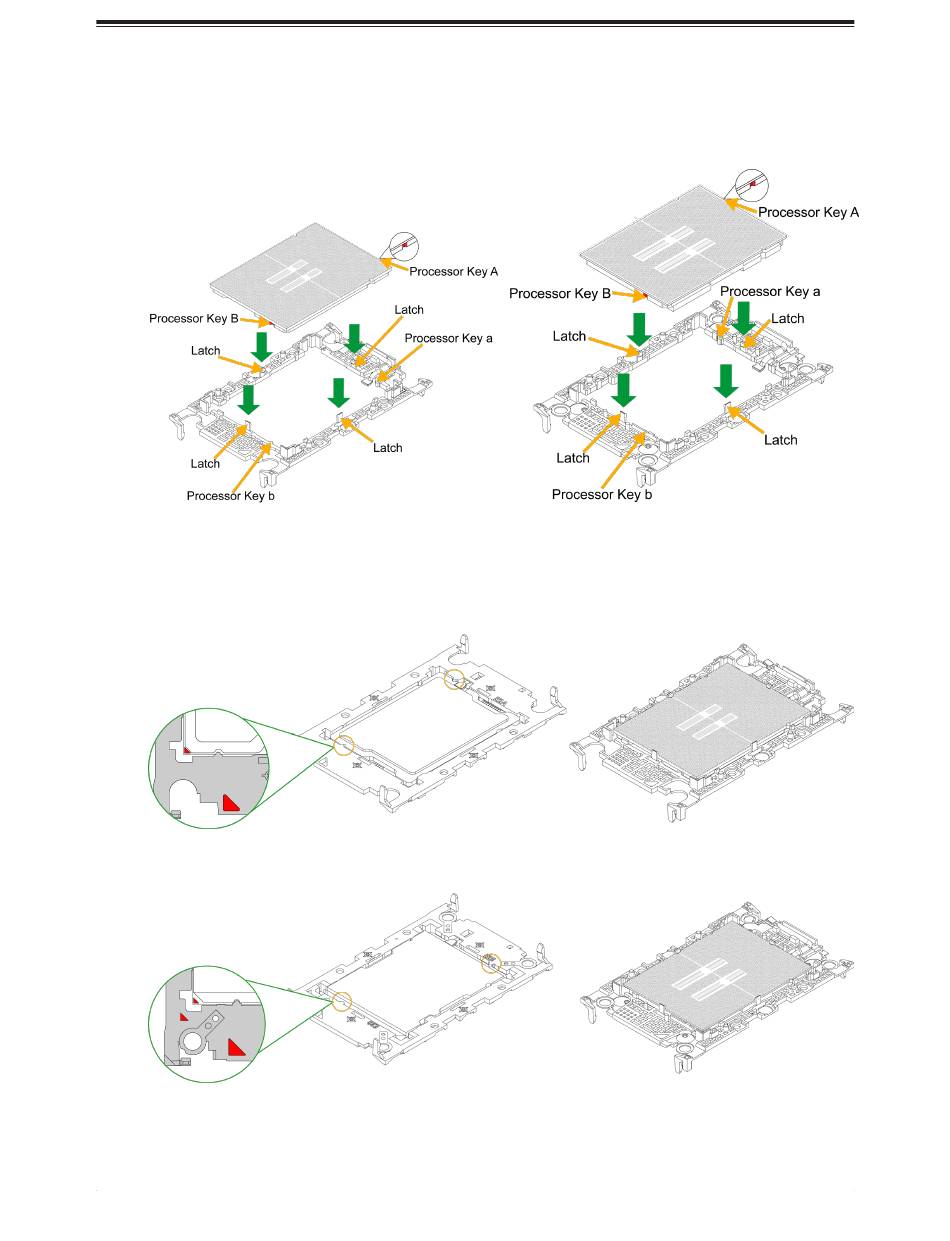

Figure 3-14. Keys and Latches Locations (SP XCC E2A left, SP HCC/LCC E2B
4. Examine all corners to ensure that the processor is firmly attached to the carrier.
Figure 3-16. SP HCC/LCC E2B Keys and Latches Together
SuperServer SYS-122H-TN: Maintenance and Component Installation
right)
Figure 3-15. SP XCC E2A Keys and Latches
