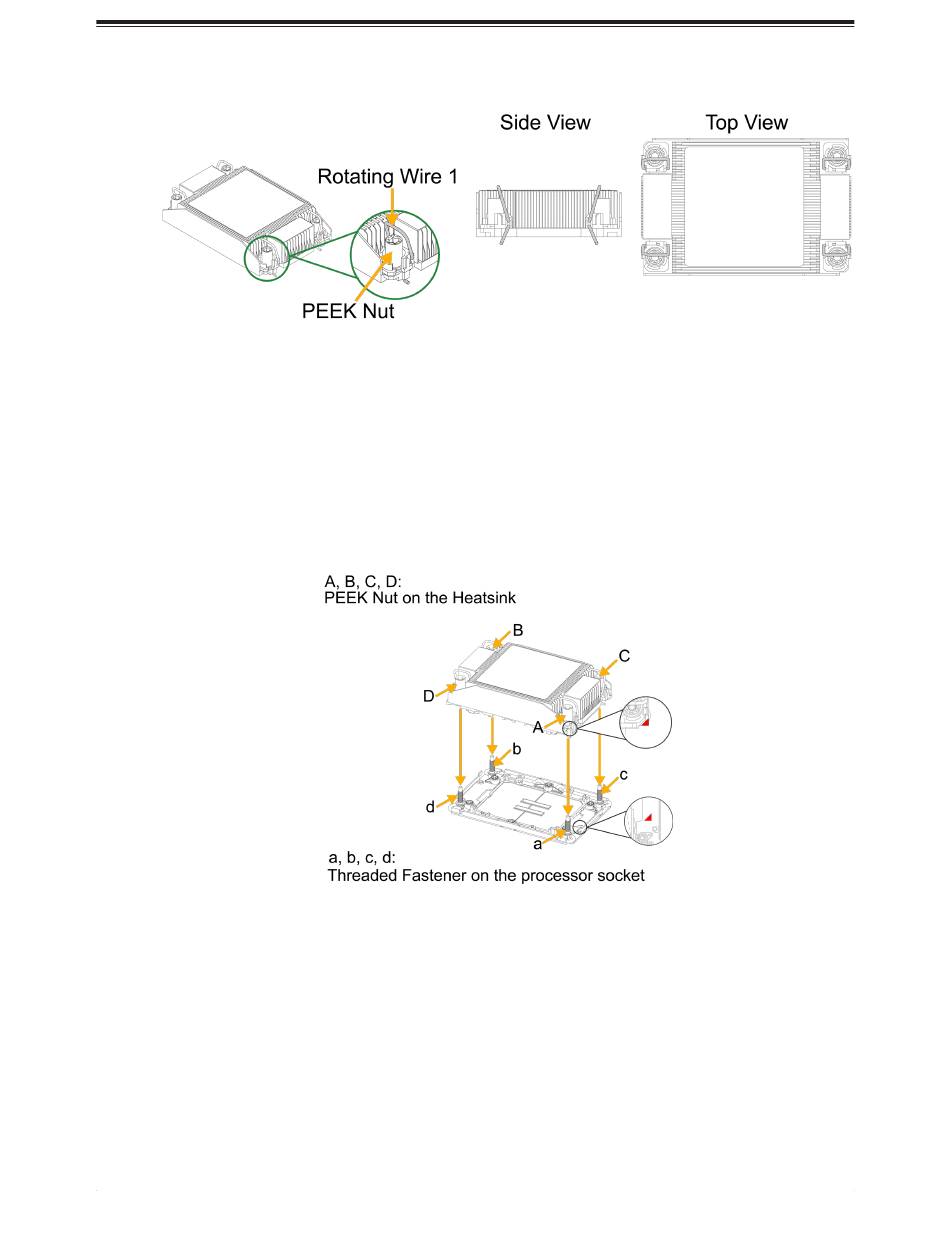

Installing the Processor Heatsink Module

1. Align pin 1 of the PHM with the printed triangle on the processor socket.
2. Make sure all four PEEK nuts of the heatsink (marked A, B, C, and D) are aligned with
the threaded fasteners (marked a, b, c, and d), then gently place the heatsink on top of
the processor socket.
Figure 3-26. Align the Heatsink with the Socket
3. Press all four rotating wires outwards and make sure that the heatsink is securely
latched into the processor socket.
SuperServer SYS-122H-TN: Maintenance and Component Installation
Figure 3-25. 1U Unlatched Positions
