SuperServer SYS-122H-TN: Maintenance and Component Installation

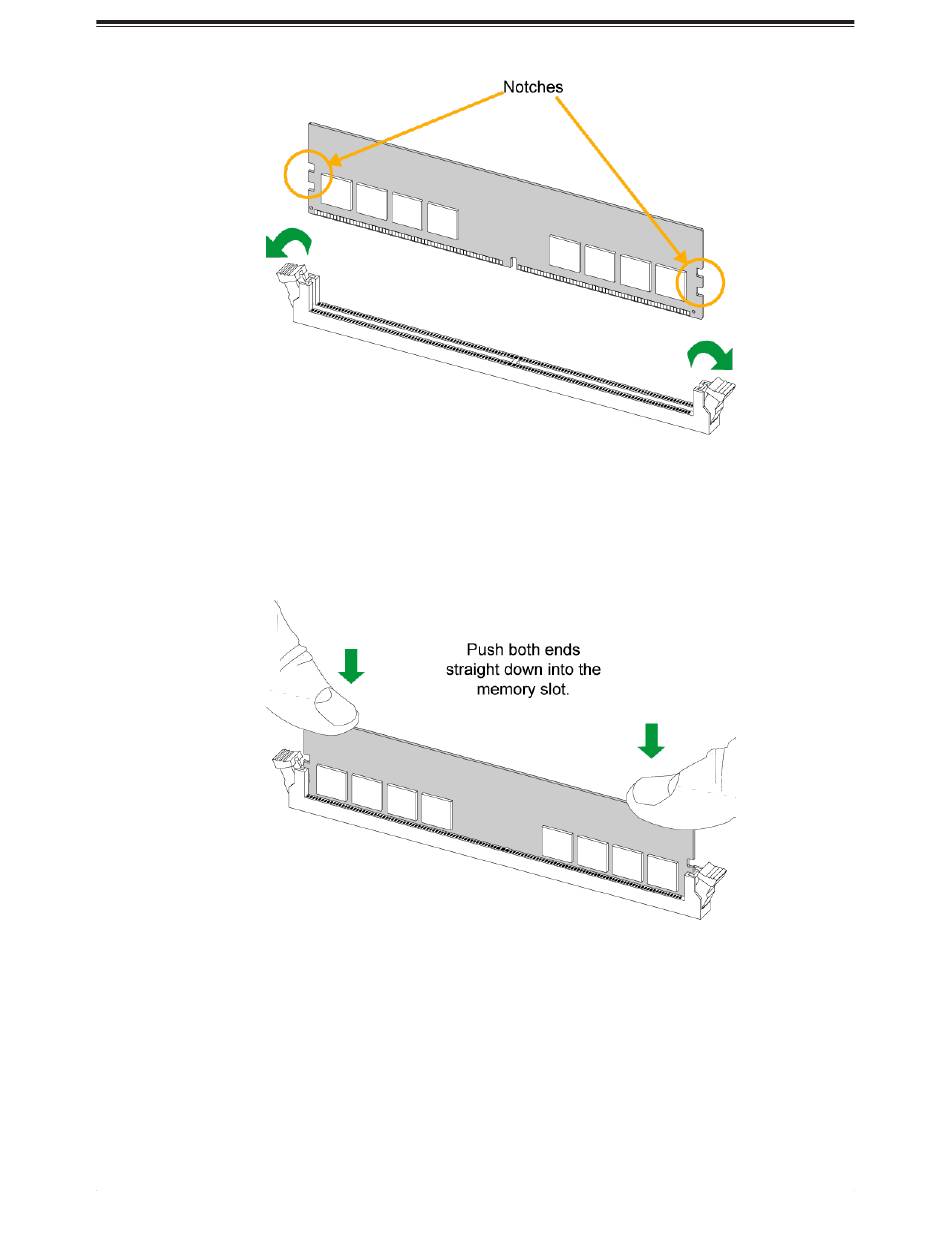

Figure 3-36. Align the Notches
5. Press both ends of the module straight down into the slot until the module snaps into
place.
6. Press the release tabs to the lock positions to secure the DIMM into the slot.
Figure 3-37. Press Both Ends
For a detailed diagram of the X14DBM-SP motherboard, see the layout under
"Motherboard
Quick Reference" on page
27.
