3.7 Storage Drives
The storage drives are mounted in tool-less drive carriers that simplify their removal from the
chassis. These carriers also help promote proper airflow. For compatible storage drives, see
the SYS-122H-TN product
Installing Drives
Removing a Hot-Swap Drive Carrier from the Chassis
1. Press the release button on the drive carrier, which will extend the drive carrier handle.
2. Use the drive carrier handle to pull the drive out of the chassis.
Installing a Drive
1. Position the drive above the carrier with the PCB side facing down and the connector
end toward the rear of the carrier.
2. Tilt the drive to insert it onto the two posts on the right inside of the carrier.
3. Pull out the two spring locking clasps and allow the drive to sit fully in the carrier, then
close them to secure the drive.
SuperServer SYS-122H-TN: Maintenance and Component Installation
page.

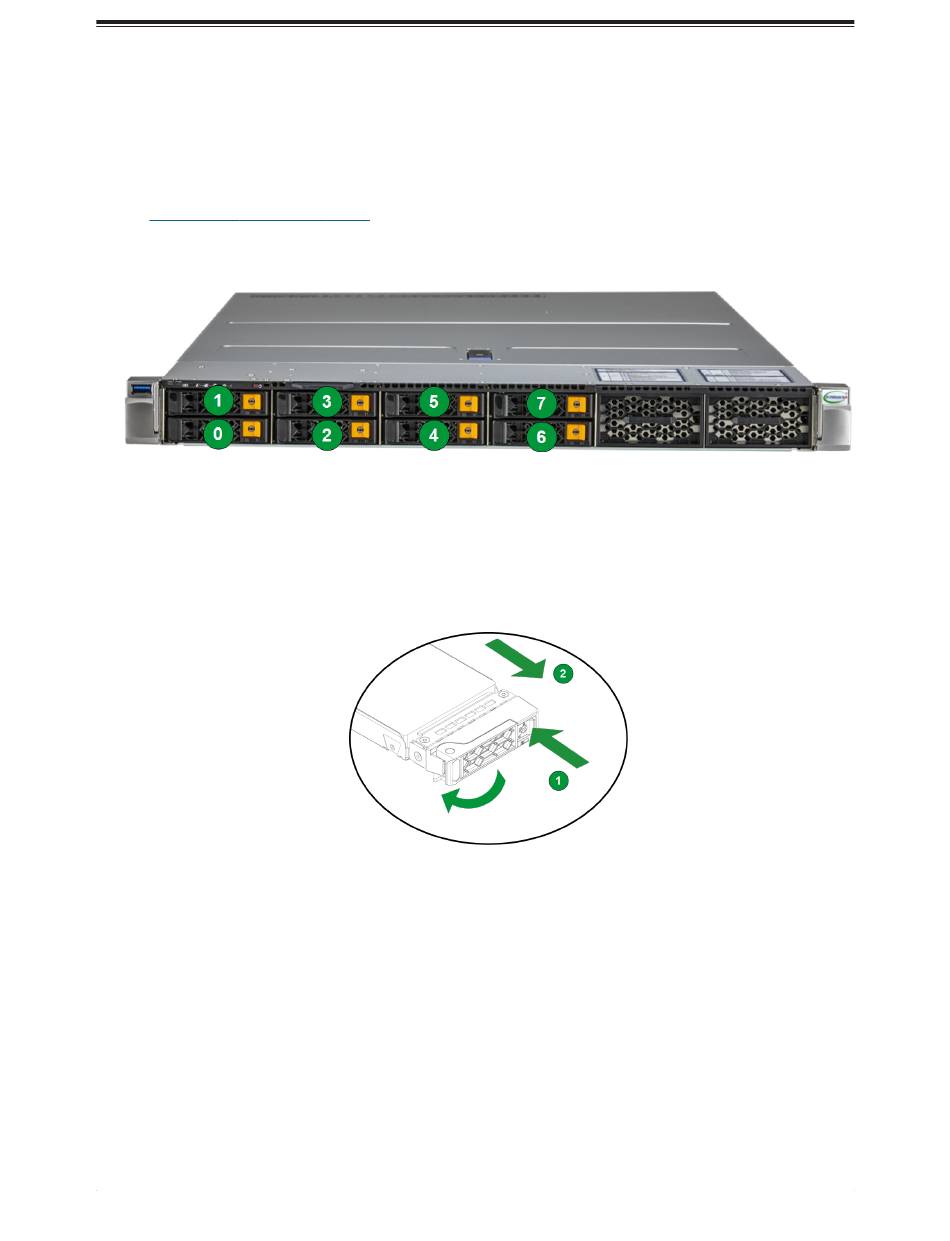

Figure 3-38. Logical Drive Number
Figure 3-39. Removing a Drive Carrier
