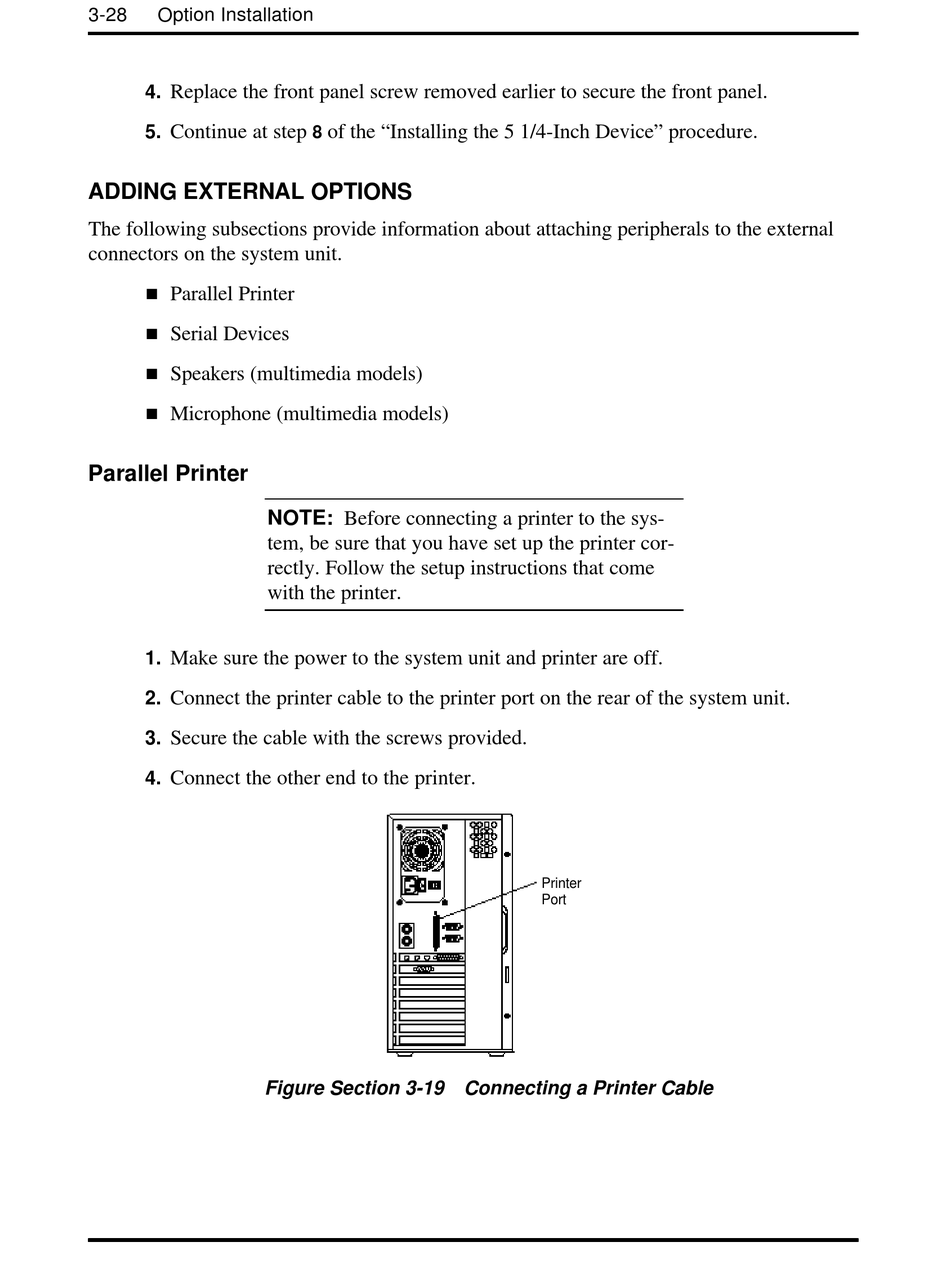

3-28 Option Installation
4. Replace the front panel screw removed earlier to secure the front panel.
5. Continue at step

ADDING EXTERNAL OPTIONS

The following subsections provide information about attaching peripherals to the external
connectors on the system unit.
n

Parallel Printer

n
Serial Devices
n
Speakers (multimedia models)
n
Microphone (multimedia models)
Parallel Printer
1. Make sure the power to the system unit and printer are off.
Connect the printer cable to the printer port on the rear of the system unit.
2.
Secure the cable with the screws provided.
3.
4. Connect the other end to the printer.
Figure Section 3-19 Connecting a Printer Cable
of the "Installing the 5 1/4-Inch Device" procedure.
8
NOTE: Before connecting a printer to the sys-
tem, be sure that you have set up the printer cor-
rectly. Follow the setup instructions that come
with the printer.
Printer
Port
