9. Connect the drive cables to the new drive (see "Cabling an IDE Device"). Re-
connect any hard disk drive cables you labeled and removed earlier.
10. Replace the system unit side panel (see "Replacing the Side Panel").
Run the Setup program to set the new configuration (see Section 2).
11.

Replacing the 3 1/2-Inch Drive Bracket

Replace the 3 1/2-inch drive bracket only after it has been removed in a 3 1/2-inch drive in-
stallation.
1. Place the tabs on the 3 1/2-inch drive bracket into their slots on the bottom of the
device cage.
Slide the drive bracket forward until the screw hole in the drive bracket is aligned
2.
with the hole in the 5 1/4-inch device cage.
Replace the bracket screw you removed earlier to secure the bracket in place.
3.

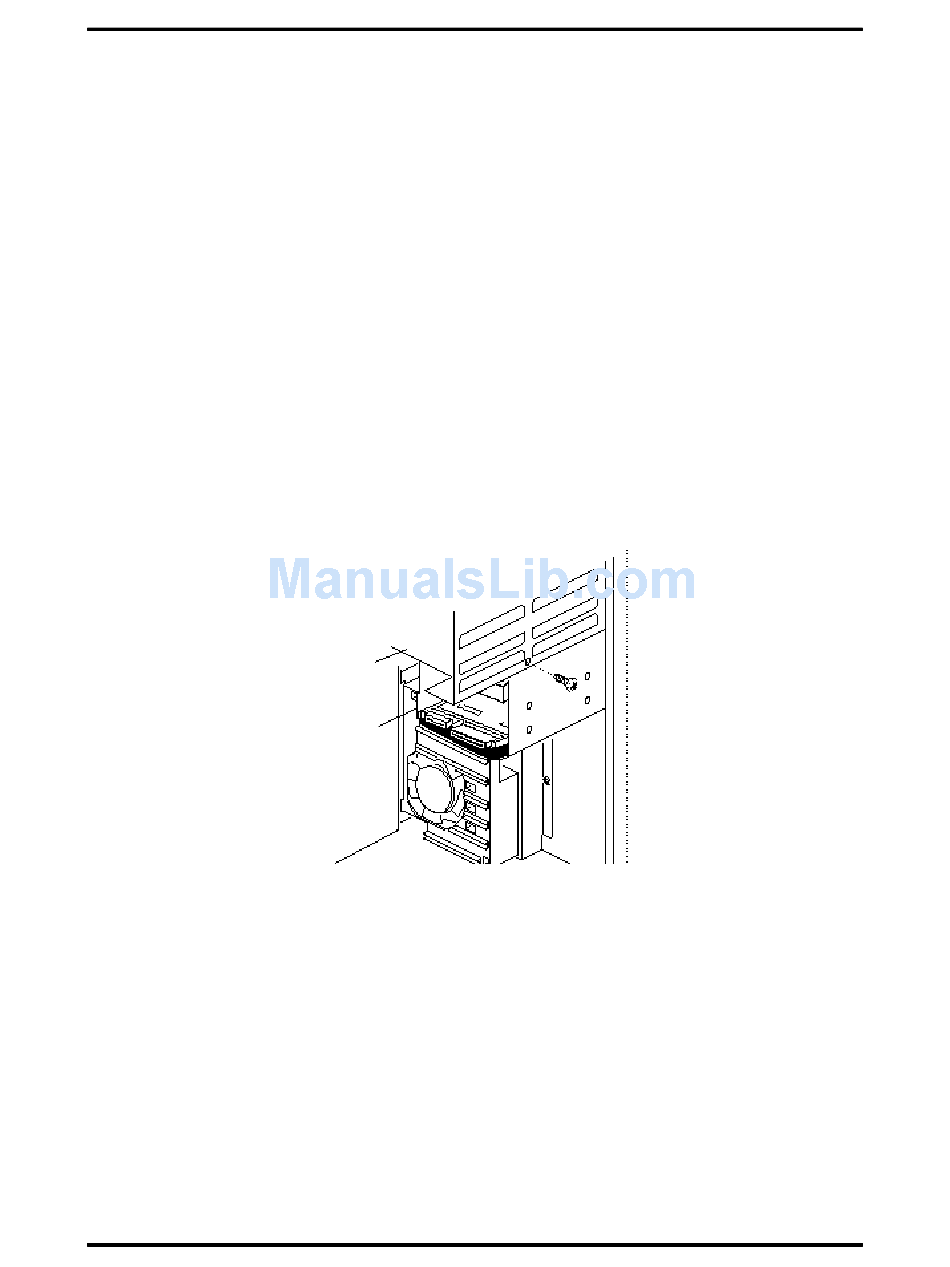

Figure Section 3-11 Securing the 3 1/2-Inch Drive Bracket
Continue at step
4.
Device
Cage
Drive
Bracket
of the "Installing the 3 1/2-Inch Drive" procedure.
9
Option Installation 3-23
