3-28 Option Installation
3. Use the previously removed bracket screw to secure the bracket in place (see
Figure 3-26).
Screw
Tab

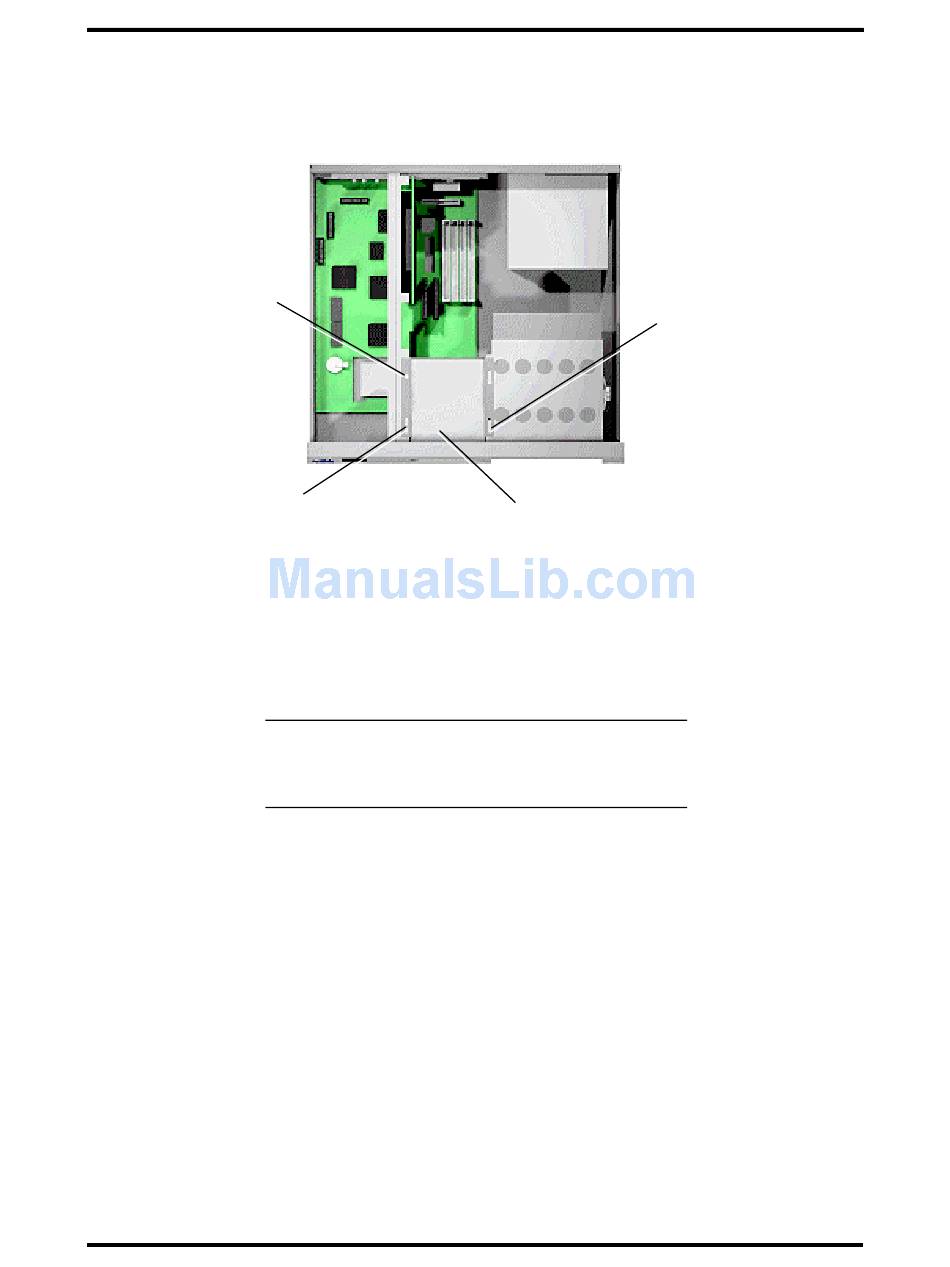

Figure 3-26 Securing the 3 1/2-Inch Drive Bracket
Replace the front panel (see "Replacing the Front Panel").
4.
Replace the system unit cover.
5.
Run the Setup program to set the new configuration.
6.

ADDING EXTERNAL OPTIONS

This subsection includes installation procedures for a parallel printer and serial devices.
Procedures for connecting the microphone and speakers are included in Section 2, Setup
and Operation.
NOTE: If a 1.2-MB diskette drive was installed,
remove the protective cardboard insert from the
drive.
Tabs
3 1/2-Inch
Drive Bracket
