ISA expansion slots support industry-standard 8-bit or 16-bit expansion boards. The shared
PCI/ISA slot can be used either for a PCI or an ISA expansion board.

Expansion Board Installation

Remove the system unit side panel (see "Removing the Side Panel" in this
1.
section).
Follow any preinstallation instructions that comes with the expansion board (such
2.
as setting switches or jumpers on the board).
3. Remove the screw securing an expansion slot cover and remove the cover.
Save the screw for installing the expansion board. Store the slot cover in case you
choose to remove the expansion board in the future.

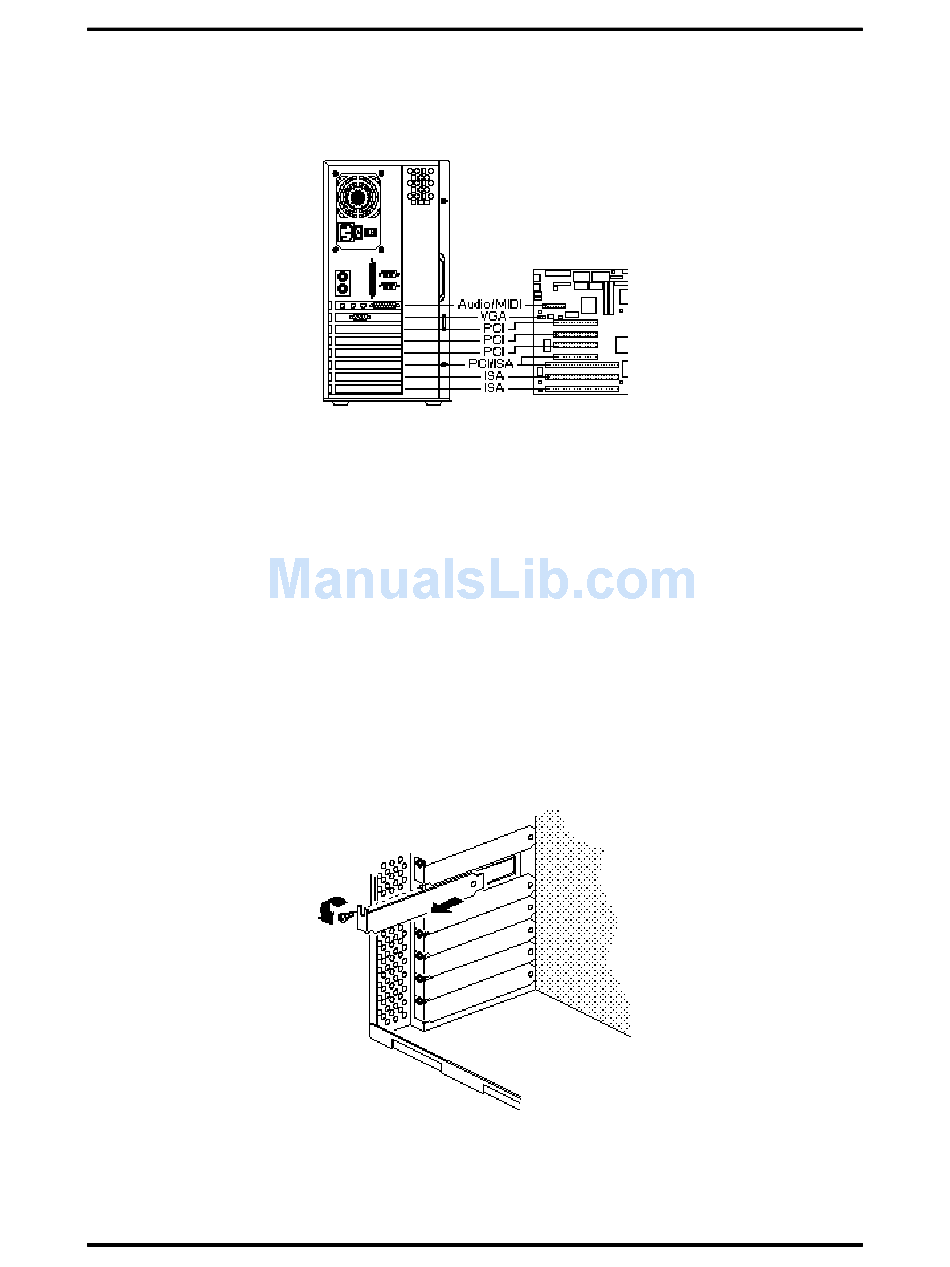

Figure Section 3-3 Expansion Slots Locations
Figure Section 3-4 Removing a Slot Cover
Option Installation 3-7
