5-6 Repair

Front Panel Assembly Removal

Remove the front panel from the system unit as follows.
1. Remove the system unit side panel (see "Side Panel Removal").
Remove the front panel screw securing the panel to the system unit.
2.
Release the two front panel tabs on the lower left side of the front panel.
3.
Disconnect the LED and IR cables on the front panel from the system board.
4.
5. Pull the left side out enough to clear the power, reset, and suspend buttons. When
the buttons have been cleared, slide the right side of the front panel out from the
system unit.
Tabs

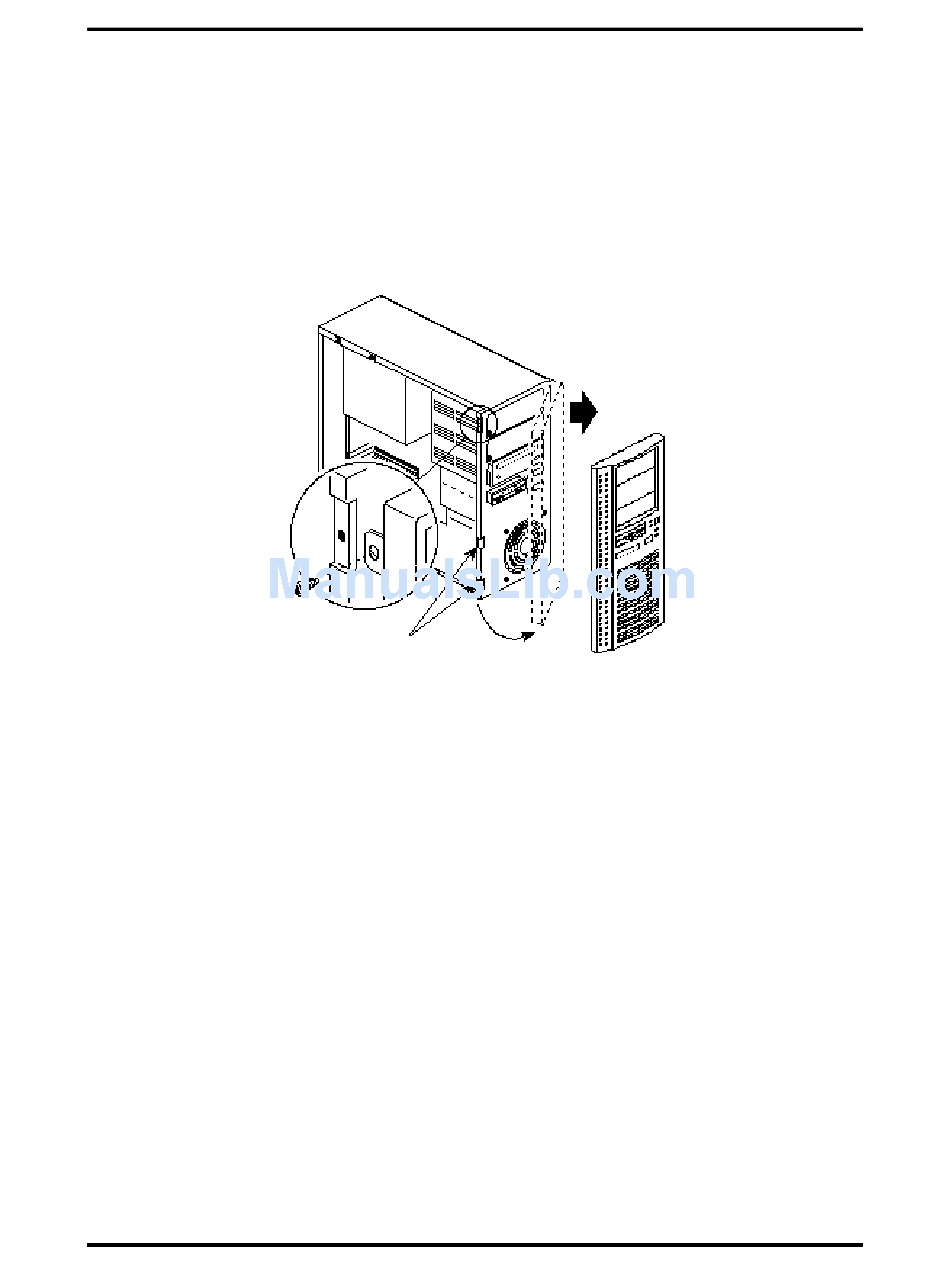

Figure Section 5-6 Removing the Front Panel
