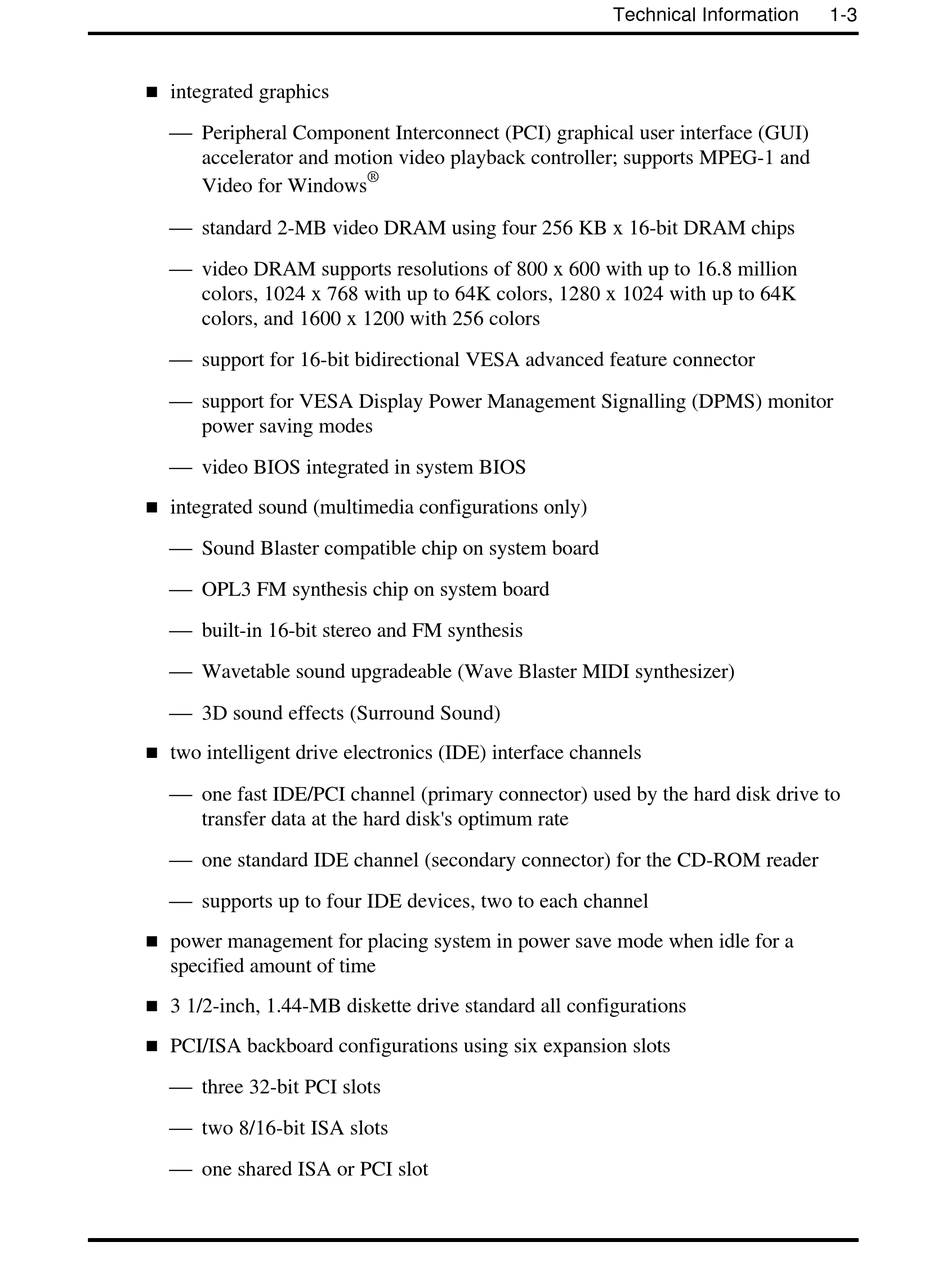

NEC POWERMATE P - SERVICE MANUAL 1995 Service And Reference Manual page 18

n
integrated graphics
Peripheral Component Interconnect (PCI) graphical user interface (GUI)
accelerator and motion video playback controller; supports MPEG-1 and
Video for Windows
standard 2-MB video DRAM using four 256 KB x 16-bit DRAM chips
video DRAM supports resolutions of 800 x 600 with up to 16.8 million
colors, 1024 x 768 with up to 64K colors, 1280 x 1024 with up to 64K
colors, and 1600 x 1200 with 256 colors
support for 16-bit bidirectional VESA advanced feature connector
support for VESA Display Power Management Signalling (DPMS) monitor
power saving modes
video BIOS integrated in system BIOS
n
integrated sound (multimedia configurations only)
Sound Blaster compatible chip on system board
OPL3 FM synthesis chip on system board
built-in 16-bit stereo and FM synthesis
Wavetable sound upgradeable (Wave Blaster MIDI synthesizer)
3D sound effects (Surround Sound)
n
two intelligent drive electronics (IDE) interface channels
one fast IDE/PCI channel (primary connector) used by the hard disk drive to
transfer data at the hard disk's optimum rate
one standard IDE channel (secondary connector) for the CD-ROM reader
supports up to four IDE devices, two to each channel
n
power management for placing system in power save mode when idle for a
specified amount of time
n
3 1/2-inch, 1.44-MB diskette drive standard all configurations
n
PCI/ISA backboard configurations using six expansion slots
three 32-bit PCI slots
two 8/16-bit ISA slots
one shared ISA or PCI slot
®
Technical Information 1-3
