CD-ROM AUDIO CONNECTOR

The following figure shows the CD-ROM audio interface connector on the system board.
Table Appendix A-32 provides the pin assignments.

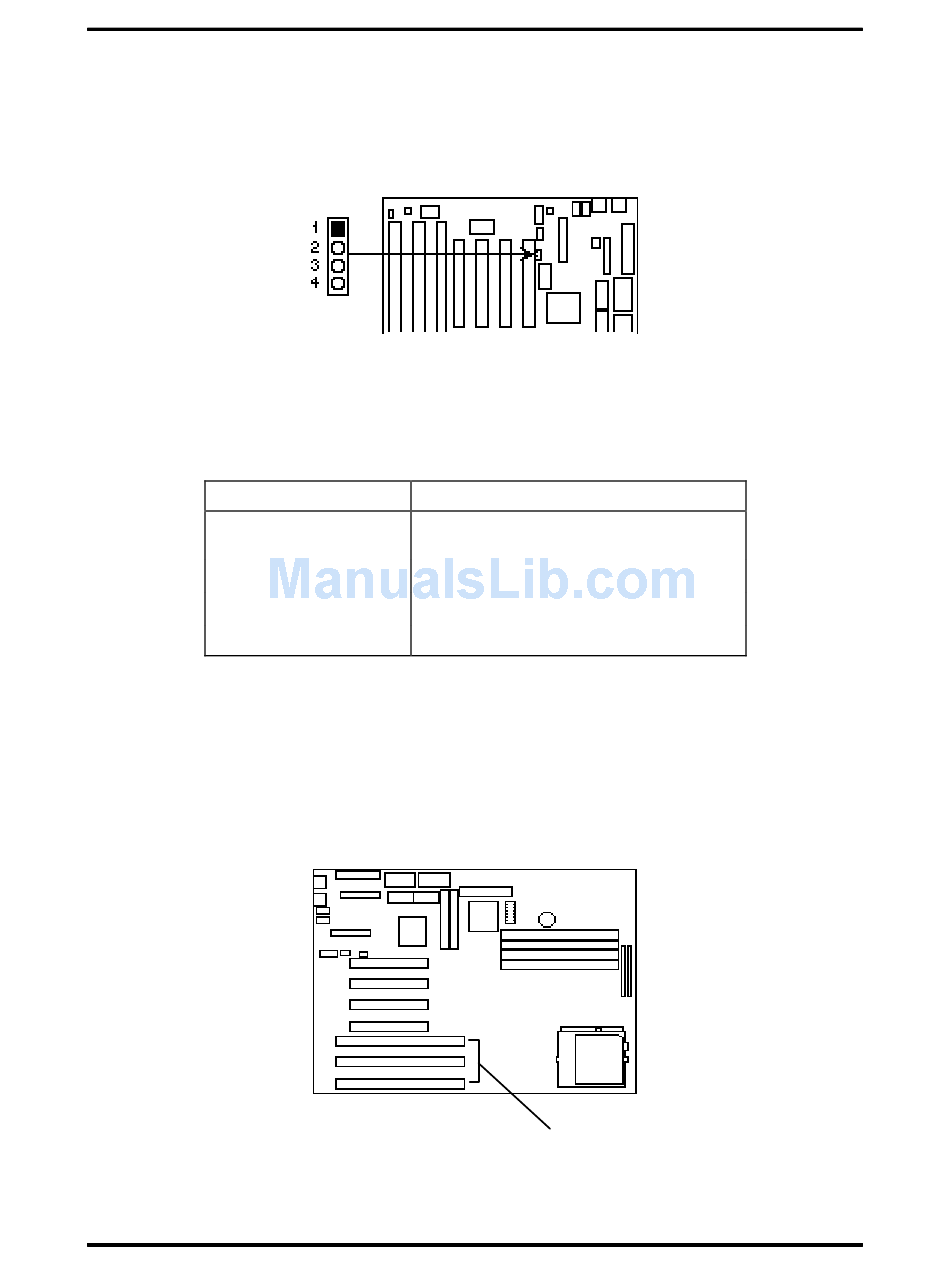

Figure Appendix A-16 CD-ROM Audio Interface Connector
Table Appendix A-32 CD-ROM Audio Interface Pin Assignments
Pin
1
2
3
4

ISA CONNECTORS

The following figure shows the ISA expansion board connectors on the system board. Table
Appendix A-34 provides the pin assignments.
Figure Appendix A-17 ISA Expansion Board Connectors
Connector Pin Assignments
Signal Name
CD-Right
Ground
CD-Left
Ground
ISA Slots
A-17
