MCTRL660
LED Display Controller
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCTRL660 and is the answer not in the manual?

Questions and answers

Related Manuals for NovaStar MCTRL660

Summary of Contents for NovaStar MCTRL660

  • Page 1 MCTRL660 LED Display Controller User Manual...
  • Page 2 MCTRL660 LED Display Controller User Manual Change History Document Version Release Date Description V1.4.3 2021-09-28  Added the hot backup verification function.  Added the 10-bit Gamma adjustment function.  Support the 10-bit and 12-bit video source inputs.  Optimized the device cascading solution. Up to 20 devices can be cascaded.

  • Page 3: Table Of Contents

    MCTRL660 LED Display Controller User Manual Contents 1 Overview ..................................1 2 Appearance ..................................2 3 Applications ..................................4 4 Cascade Devices ................................4 5 Home Screen ................................... 5 6 Menu Operations ................................6 6.1.1 Step 1: Set Input Resolution ..........................6 6.1.2 Step 2: Quickly Configure the Screen ......................

  • Page 4: Overview

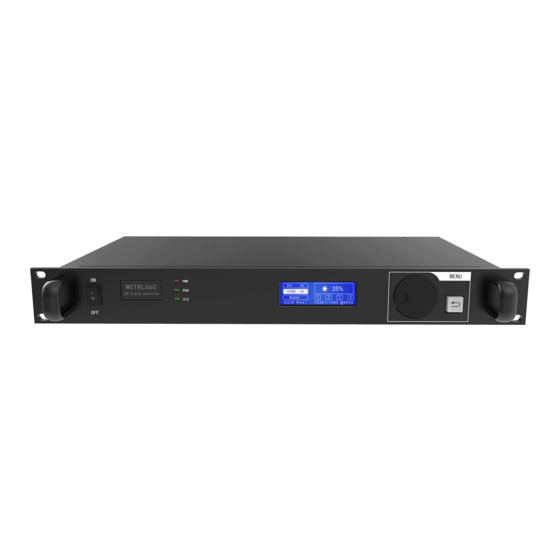

    MCTRL660 LED Display Controller User Manual Overview Introduction The MCTRL660 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MCTRL660 device supports input resolutions up to 1920×1200@60Hz.

  • Page 5: Appearance

    MCTRL660 LED Display Controller User Manual Appearance Front Panel Name Description Power switch ON/OFF Indicator Always on: The power supply is normal. (Red) Off: The power is not supplied, or the power supply is abnormal. Slow flashing (flashing once in 2s): The video input is unavailable.
  • Page 6 MCTRL660 LED Display Controller User Manual  Maximum resolution: 1920×1200@60Hz  Support custom input resolutions. Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz)  Support HDCP 1.4.  Do NOT support interlaced signal input. AUDIO Audio input connector Output 4x RJ45 4x RJ45 Gigabit Ethernet ports ...

  • Page 7: Applications

    MCTRL660 LED Display Controller User Manual Applications Figure 3-1 Applications Cascade Devices To control multiple MCTRL660 devices simultaneously, follow Figure 4-1 to connect them. Figure 4-1 Cascading devices www.novastar.tech...

  • Page 8: Home Screen

    MCTRL660 LED Display Controller User Manual Home Screen Figure 5-1 shows the home screen of the MCTRL660. Figure 5-1 Home screen in the sending card mode Figure 5-1 Home screen icon description Icon Description Indicate that the HDMI connector has a video source connected.

  • Page 9: Menu Operations

    MCTRL660 LED Display Controller User Manual Menu Operations The MCTRL660 is powerful and easy to use. You can quickly configure the LED screen to light it up and display the entire input source following steps in Light a Screen Quickly. With other menu settings, you can further improve the LED screen display effect.

  • Page 10: Step 2: Quickly Configure The Screen

    MCTRL660 LED Display Controller User Manual Step 2 Choose Advanced Setting > EDID Resolution. Customize a horizontal resolution, vertical resolution and refresh rate. Step 3 Select Apply and press the knob to apply the custom resolution. If it is not applied, the customized resolution will not take effect.

  • Page 11: Offset Position

    MCTRL660 LED Display Controller User Manual Note: a). If n ports are used to load the Example: screen, the number of cabinets loaded If all the 4 Ethernet ports are used to load the screen, the by each of the first (n–1) ports must be number of cabinets loaded by ports 1–3 must be the same and...

  • Page 12: Image Quality

    MCTRL660 LED Display Controller User Manual Figure 6-4 Offset position 6.3.2 Image Quality Set the gamma, contrast, saturation and hue values of image as required. After proper adjustment, select Save RV Card Parameters to save the parameter values to receiving cards.

  • Page 13: Save To Rv Card

    MCTRL660 LED Display Controller User Manual Figure 6-7 Importing configuration file of controller cabinet 6.3.5 Save to RV Card You can send and save the current screen configuration parameters to the receiving cards. The configuration data will not be lost after the device is powered off.
  • Page 14 Test Pattern: Test patterns are used to check the display effect and pixel operating status. There are 8 test patterns, including pure colors and line patterns. Language Set the MCTRL660 UI language. You can choose Chinese or English. Figure 6-12 Language settings www.novastar.tech...

  • Page 15: Operations On Pc

    MCTRL660 LED Display Controller User Manual Operations on PC 10-bit Gamma Adjustment The 10-bit input source supports 10-bit gamma adjustment. Step 1 Run NovaLCT. On the menu bar, choose User > Advanced Synchronous System User Login. Enter the password and click Login.

  • Page 16: Novalct

    A 12-bit input source reduces the device loading capacity by half. Firmware Update 7.3.1 NovaLCT In NovaLCT, perform the following steps to update the MCTRL660 firmware. Step 1 Run NovaLCT. On the menu bar, choose User > Advanced Synchronous System User Login. Enter the password and click Login.
  • Page 17 MCTRL660 LED Display Controller User Manual Step 3 Click to select the update program path. Step 4 Click Update. www.novastar.tech...

  • Page 18: Specifications

    MCTRL660 LED Display Controller User Manual Specifications Input voltage AC 100V~240V-50/60Hz Electrical Specifications Rated power 16 W consumption –20º C to +60º C Temperature Operating Environment Humidity 10% RH to 90% RH, non-condensing Dimensions 483.0 mm × 258.1 mm × 55.3 mm...
