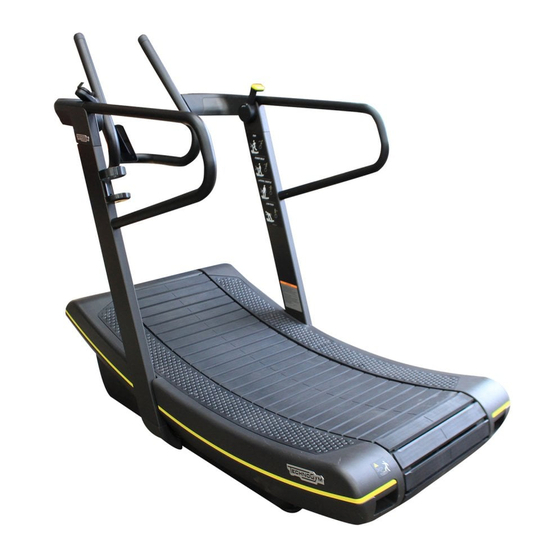

- Page 1 SKILLMILL USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Contents ......................2 Important safety instructions ................3 Personal safety ....................5 Identification of the manufacturer and equipment ........7 Description of product ..................8 Using the equipment ..................9 Description of the display ................12 Using the chest strap ..................15 Place of use ......................18 Technical data ....................19 Safety stickers .................... -
Page 3: Important Safety Instructions
Any other use is to be considered improper and therefore dangerous. Do not use attachments not recommended by Technogym. Never operate the product if the power supply unit or its cable is damaged, if they are not working properly or if they have been dropped into water. In this case, contact the Technogym Technical Support service. - Page 4 IMPORTANT SAFETY INSTRUCTIONS Do not carry the product holding it by its supply cord or use cord as handle. Keep the cord away from heated surfaces. Keep hands and feet away from moving parts. Never drop or insert any object into any opening. To switch the power off, disconnect the power supply unit from the outlet or remove the plug from the product.
-
Page 5: Personal Safety
Keep all components, such as the power supply and its cable, away from liquids to prevent the risk of electric shocks (models DJK03, DJK13). Keep the product in good working condition. If there are signs of wear, contact the Technogym Technical Support service. - Page 6 Do not set anything on the casing or its display. Technogym is not responsible for any damages due to any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting from any construction activities in the product’s environment, rust or corrosion as a result of the product’s location, alterations or modifications without Technogym’s written authorization or for failure on your part to use, operate and maintain the products...
-
Page 7: Identification Of The Manufacturer And Equipment
D - Electrical characteristics E - Tells you to consult the user manual F - Serial number and date of manufacture G - Product model Technogym S.p.A. via Calcinaro 2861, Cesena (FC) Made in Italy SKILLMILL 1000 Model no. DJK03D... -
Page 8: Description Of Product
DESCRIPTION OF PRODUCT Display (A): displays information on the exercise in progress. It is present on models DJK03, DJK13, DJK04, DJK14. Rotating belt (B): the elements composing the running surface are covered in rubber to reduce the stress on the user’s joints. Side handgrips (C): grasp these to safely get onto the equipment or if you lose your balance;... -
Page 9: Using The Equipment
USING THE EQUIPMENT Grasp the side handgrips and step onto the rotating belt from the rear; place one foot on each of the side footrests. Set the braking from this rest position. Place your feet on the rotating belt and start the exercise. The two side handgrips make it safer when you first use the product;... - Page 10 USING THE EQUIPMENT Gradually modulate the brake during the exercise. The rotating belt is not motorised and turns freely; for this reason, it is necessary to hold onto the side handgrips when getting on and off the product. Warning The brake decreases the speed of the belt, but does not stop it completely; even at maximum braking it is possible for the belt to move.
- Page 11 USING THE EQUIPMENT Warnings Any distractions in the area around the equipment may cause the user to lose his/her balance. It is the user’s responsibility to ensure that the product does not interfere with anything else during use. Using the equipment two at a time is prohibited. Skillmill is to be used solely for the use it was designed and built for, i.e.
-
Page 12: Description Of The Display
DESCRIPTION OF THE DISPLAY The display is present on models DJK03, DJK13, DJK04, DJK14. Walk for a few seconds to turn on the display. If the movement of the rotating belt continues for more than 10 seconds, an exercise will begin. To switch off the display, stop walking: the rotating belt must remain stopped for more than 10 seconds. - Page 13 DESCRIPTION OF THE DISPLAY During the exercise, the following values are shown on the central part of the display: Speed, expressed in kilometres per hour. con livello 4 Instantaneous power, expressed in watts. Elapsed time (from the start of the exercise), expressed in minutes and seconds. Distance covered, expressed in kilometres.
- Page 14 DESCRIPTION OF THE DISPLAY Results page 2: Average exercise speed, expressed in kilometres per hour. Average power generated during the exercise, expressed in watts. Total calories burned during the exercise, expressed in kcal. Total move generated during the exercise. Average heart rate during the exercise, expressed in beats per minute. Depending on the product setting, the distance and speed values can be displayed in km and km/h, or in mi and mph.
-
Page 15: Using The Chest Strap
USING THE CHEST STRAP The lower part of the display contains a receiver which receives the heart rate signals from the telemetric chest strap. The transmission technology used is Bluetooth Smart. The chest strap must be paired with the product in order for the heart rate to be shown on the display. The connection must be repeated with each exercise. - Page 16 USING THE CHEST STRAP The table shows the optimum heart rate levels in relation to age and the goal to be achieved. Theoretical maximum heart rate (100%) is calculated on the basis of age using the formula: HRmax = 207 - 0.7 x age (R. L. Gelish et al, Med Sci Sports Exerc., 2007 May, 39 (5): 281).
- Page 17 USING THE CHEST STRAP Warnings During a workout it is very important that your heart rate never goes above 90% of your maximum rate (unless you are an athlete engaged in competitive sport). The sole function of the heart rate monitor is to display the heart rate during exercise and cannot be used for medical cardiac diagnoses of any kind.
-
Page 18: Place Of Use
PLACE OF USE To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements; in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available: Temperature between +10°C and +25°C Sufficient ventilation to maintain a humidity level of between 20% and 90%, when the equipment is in use... -
Page 19: Technical Data
TECHNICAL DATA Model code DJK03..., DJK13... DJK0N..., DJK1N..., DJK04..., DJK14... Power supply 5 Vdc 1A Weight of equipment 180 kg 180 kg Maximum user weight 180 kg 180 kg Noise level Less than 70 dB (A) Less than 70 dB (A) Protection grade IP 20 IP 20... - Page 20 TECHNICAL DATA 1910 mm 890 mm (75") (35") 1540 mm (61") Product operation will become perfectly smooth after the first 300 km. SKILLMILL...
-
Page 21: Safety Stickers
SAFETY STICKERS A safety sticker is applied to the product to indicate a falling hazard. The rotating belt is not motorised and turns freely; for this reason, it is necessary to hold onto the side handgrips when getting on and off the product. Before using the product, read all warnings on the label applied to the base of the right-hand upright. -
Page 22: Moving The Equipment
MOVING THE EQUIPMENT The equipment has two fixed front wheels. To move the equipment, lift it up slightly, as shown in the illustration, and push it forwards and backwards. Given the weight of the equipment, we recommend that more than one person be involved in lifting it. If wheels cannot be used on the floor, move the equipment with normal lifting and transport methods. -
Page 23: Levelling
LEVELLING The equipment must be level for proper operation. The equipment is levelled by adjusting the foot shown in the illustration: loosen the locknut (B); turn the foot (A) to the left or right until the frame is stable; after adjusting tighten the locknut (B). SKILLMILL... -
Page 24: Electrical Connection
ELECTRICAL CONNECTION The DJK03 and DJK13 models must be connected to a mains power socket. Before connecting the product to the mains power supply, ensure that the electrical installation complies with applicable regulations. Check the mains power supply specifications on the label near the switch. Plug the power cable first into the equipment socket and then into the wall socket. - Page 25 ELECTRICAL CONNECTION The DJK04 and DJK14 models are powered by a battery. When the product is delivered, the battery charge level will be between 40% and 60%. Charge the battery fully using the power supply provided before using the product. To charge the battery, connect the power supply to the socket on the product.
- Page 26 ELECTRICAL CONNECTION 2 - Disconnect the two connectors connecting the battery to the product. 3 - Connect the power supply to the battery. 4 - Leave the battery to charge for at least 16 hours. 5 - Disconnect the power supply and connect the battery to the two connectors on the product.
- Page 27 ELECTRICAL CONNECTION 6 - Insert the battery in its housing. Power supply electrical specifications: 5 Vdc 1A with SELV output. If the display does not turn on after charging, press the button (B). If the battery will not be used for a long period, check that the display is on and press the button (B);...
-
Page 28: Routine Maintenance
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs of damage and/or wear. All cleaning and maintenance operations must be performed with the rotating belt completely stopped. Call the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual. SKILLMILL... - Page 29 Warnings Routine maintenance, adjustment and lubrication operations must be performed by the Technogym Technical Support Service. Before any work is performed, it is essential to unplug the power supply (if present) and set the brake to maximum; the rotating belt must be completely stopped.
-
Page 30: Troubleshooting
Mains power failure. by plugging in another appliance that you are sure works Power supply cable damaged. Contact the Technogym Technical Support Service. The power supply cable is not correctly plugged in. Check the connection. Installation problems with the power supply cable. - Page 31 TROUBLESHOOTING Problem Cause Remedy Move the equipment far enough away to stop signal Other transmitters situated nearby. Problems in monitoring interference (minimum distance between two units 80 cm). heart rate with the chest Find the interference source (e.g. an electrical domestic band Strong interference sources nearby.
-
Page 32: Technical Service
Purchase date Serial number A precise description of the problem Warning Any operations carried out on the equipment by persons not authorized by Technogym will invalidate the warranty. Technogym supplies the electrical and wiring diagrams to companies with technical support. SKILLMILL... -
Page 33: Storage
Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic equipment to authorised collection centres for disposal. If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical or electronic waste. - Page 34 SKILLMILL__en-AB 0SM00971...
