It is required to exchange route information between LAN 1 and LAN 2 using
■
RIP, so that Host A and Host B can exchange information without any static
route.

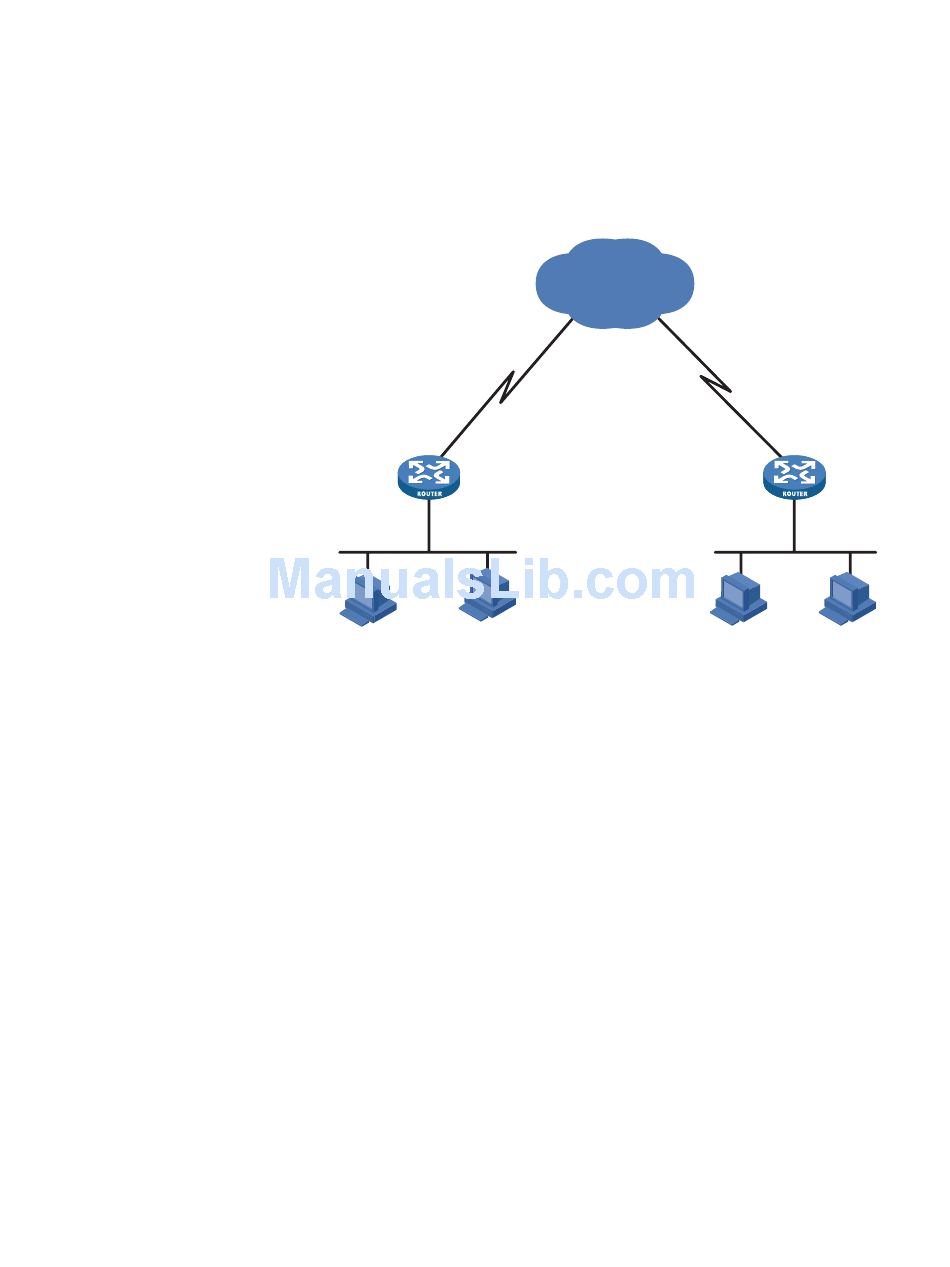

Network diagram
Figure 74 Carry IP datagrams over X.25 PVC
S2/0
192.149.13.1/24
X121 address: 1004358901
Eth1 /0
202 .38 .165 .1/24
LAN 1
Host A
Configuration procedure
1 Configure Router A
# Configure interface Ethernet 1/0.
<RouterA> system-view
[RouterA] interface ethernet 1/0
[RouterA-Ethernet1/0] ip address 202.38.165.1 255.255.255.0
[RouterA-Ethernet1/0] quit
# Configure interface Serial 2/0.
[RouterA] interface serial 2/0
[RouterA-Serial2/0] ip address 192.149.13.1 255.255.255.0
[RouterA-Serial2/0] link-protocol x25
[RouterA-Serial2/0] x25 x121-address 1004358901
[RouterA-Serial2/0] x25 vc-range bi-channel 9 1024
[RouterA-Serial2/0] x25 pvc 3 ip 192.149.13.2 x121-address 100435890
2 broadcast packet-size 512 512 window-size 5 5
[RouterA-Serial2/0] quit
# Enable RIP.
[RouterA] rip
[RouterA-rip-1] network 192.0.0.0
[RouterA-rip-1] network 202.0.0.0
2 Configure Router B
X.25 network
PVC 3
Router A
X.25 Configuration Examples
PVC 4
S2/0
192.149 .13 .2/24
X121 address: 1004358902
Router B
Eth1/0
196 .25.231 .1/24
LAN 2
Host B
